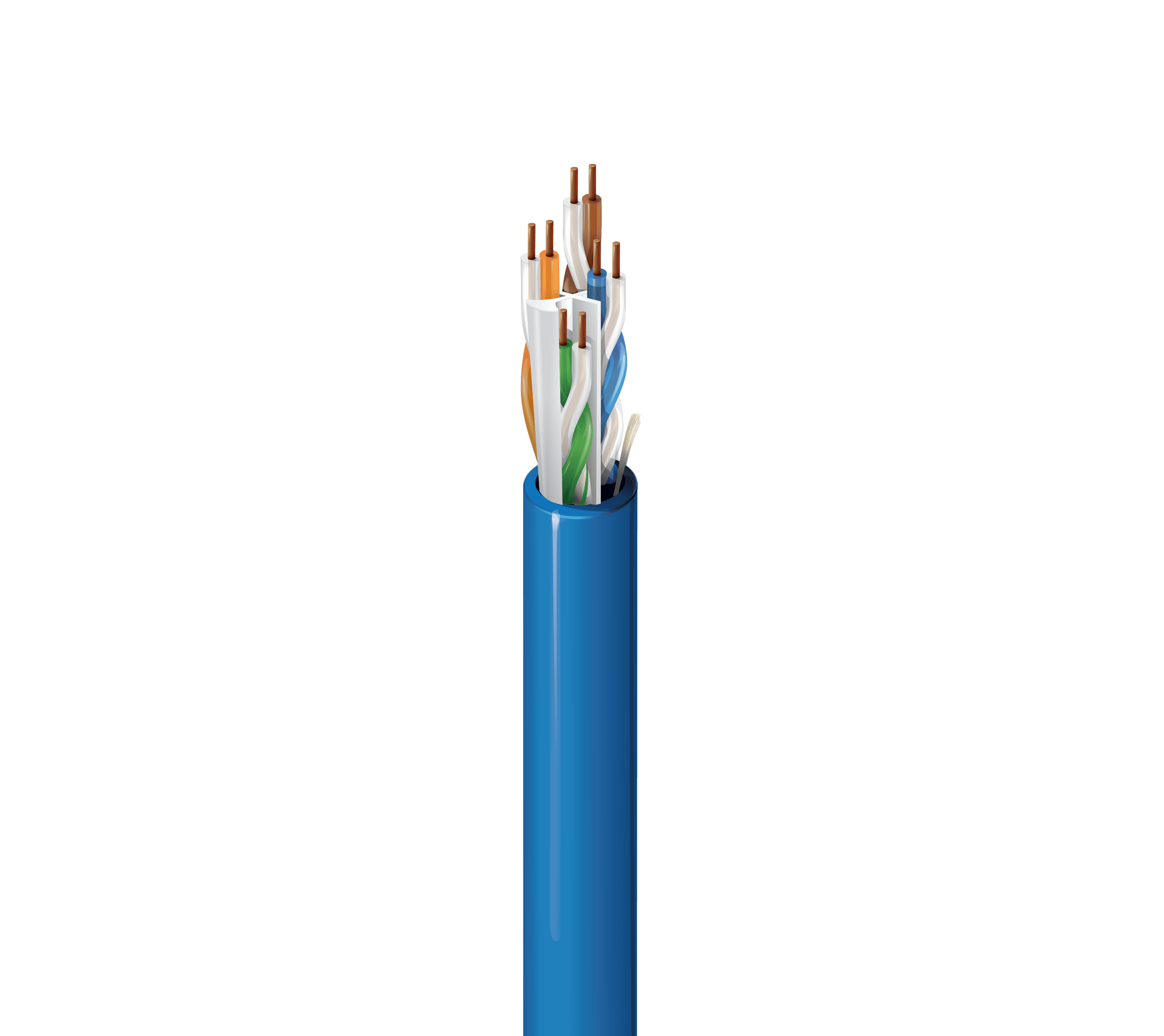

Belden 10GXS32 006, Copper Cable Cat6A 4PR 23 AWG Unshielded Blue
SKU:Belden 10GXS32 006
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 10GXS32 006 is a Category 6A enhanced premise horizontal cable rated to 625MHz for high-performance Ethernet up to 10GBASE-T. It is built with 4 bonded-pairs of 23 AWG solid bare copper conductors in a U/UTP design. The cable features a Riser-CMR rating with a PVC - Polyvinyl Chloride jacket in Blue for riser, indoor installations. It also includes a center member (Patented EquiSpline®) and EquiBlock™ Barrier Technology to help maintain consistent geometry.
Belden 10GXS32 006 Key Features
- Category 6A enhanced premise horizontal cable rated to 625MHz.
- Supports Ethernet up to 10GBASE-T.
- 4 bonded-pairs of 23 AWG solid bare copper conductors in a U/UTP design.
- Riser-CMR rated for riser, indoor environmental suitability.
- PVC - Polyvinyl Chloride jacket in Blue.
- Center member (Patented EquiSpline®) with EquiBlock™ Barrier Technology.
Belden 10GXS32 006 Applications
- Use in premise horizontal cable installations where structured cabling is required.
- Support Ethernet up to 10GBASE-T in network links.
- Enable Wi-Fi 6 and Wi-Fi 5 connectivity in network infrastructure.
- Deploy for PoE++, PoE+, and PoE.
- Perform in noisy environments.
- Fit data center EoR and MoR layouts.
- Work well in network backbone pathways.
- Support HDBaseT and HDBaseT 4K UHD connectivity.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 6A |
| Pairs | 4 |
| Conductor size | 23 AWG |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Shielding type | U/UTP |
| Bonded-pair | Yes |
| Insulation Material | PO - Polyolefin |
| Pair color code | White & Blue, White & Orange, White & Green, White & Brown |
| Ripcord | Yes |
| Overall cable diameter (nominal) | 0.278 in (7.06 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| Bulk cable weight | 33 lbs/1000ft |
| Bend radius (stationary min.) | 1.1 in (28 mm) |
| Bend radius (installation min.) | 2.5 in (64 mm) |
| Max. Conductor DCR | 79 Ohm/km (24 Ohm/1000ft) |
| Max. capacitance unbalance | 90 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 45 ns/100m |
| Nom. velocity of prop. | 65% |
| UL Voltage Rating | 300 V (CMR), 300 V (CL3R) |
| UL temperature | 90°C |
| Operating | -20°C To +75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Fire rating | Riser-CMR |
| Flammability / reaction to fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL compliance | Article 800, CMR, CMR-LP (0.6A), CL3R-LP (0.6A) |
| CEC / C(UL) compliance | CMR |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6A |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| CENELEC compliance | Segregation class according EN50174-2 = a |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Plenum number | 10GXS13 (Nonbonded)/10GXS33 |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Patent information | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
