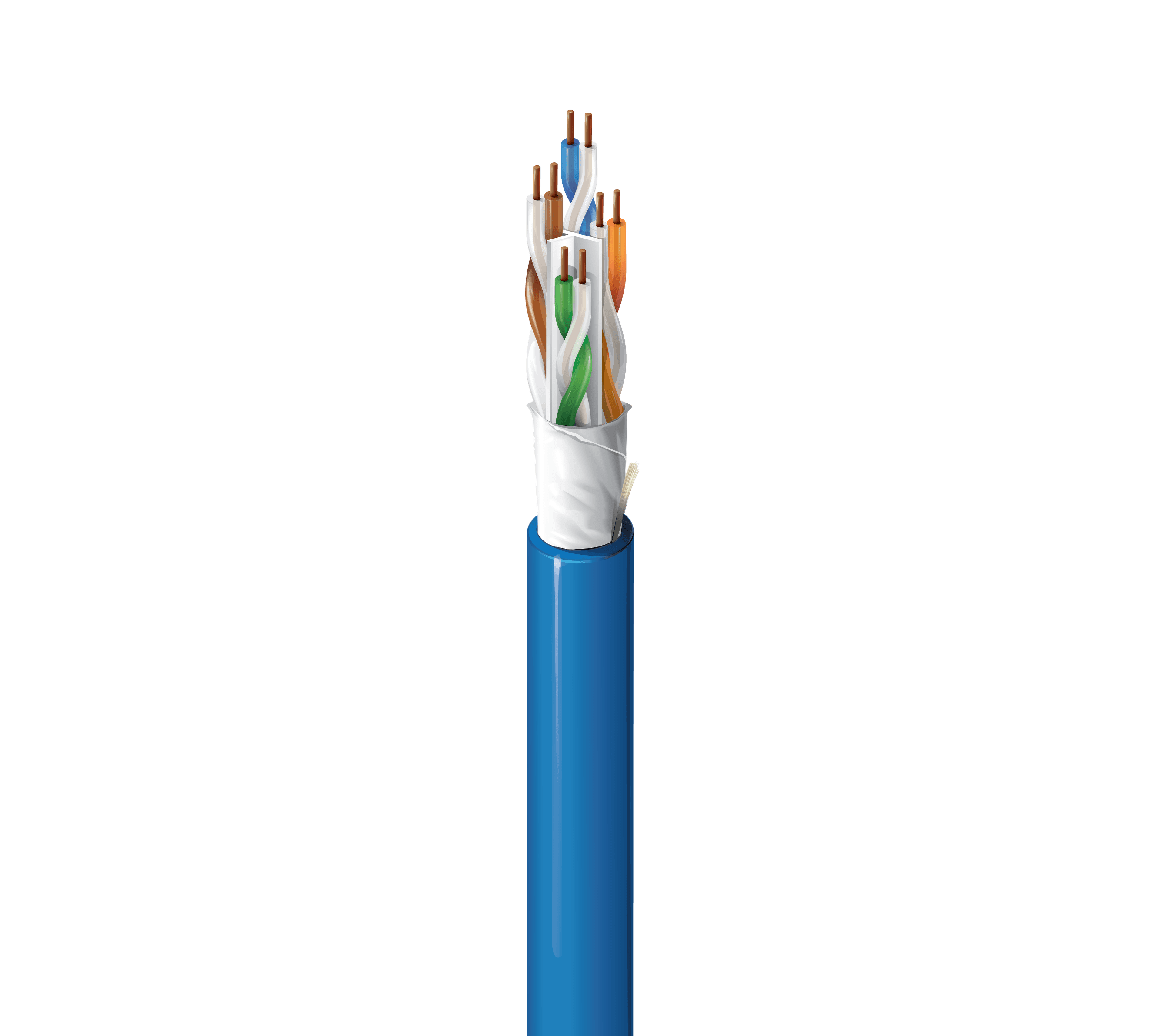

Belden 10GXW12 006, CAT6A UTP 4 Pair 23 AWG Blue Jacket
Description
Belden 10GXW12 006 is a Category 6A premise horizontal cable for high-performance data networks up to 500MHz. It is a U/UTP, 4 pair, 23 AWG solid bare copper cable with a PVC jacket and a Center Member (Patented T-Spline®) with EquiBlock™ Barrier Technology. Designed for riser, indoor pathways, it features a blue jacket and a 0.260 in (6.60 mm) nominal overall diameter for identification and routing in structured cabling installations.
Belden 10GXW12 006 Key Features
- Category 6A premise horizontal cable rated up to 500MHz for high-performance data networks.
- U/UTP - Unshielded Twisted Pair construction with 4 pairs.
- 23 AWG solid bare copper (BC - Bare Copper) conductors.
- PVC - Polyvinyl Chloride jacket in blue.
- Center Member (Patented T-Spline®) with EquiBlock™ Barrier Technology.
- 0.260 in (6.60 mm) nominal overall cable diameter.
- Environmental suitability: riser, indoor; fire rating: Riser-CMR.
Belden 10GXW12 006 Applications
- Specified for premise horizontal cable installations in structured cabling environments.
- Supports Ethernet 10GBASE-T links in high-performance data networks.
- Used in Wi-Fi 6 and Wi-Fi 5 network deployments.
- Suitable for In-Building Wireless and In-Building Small Cells connectivity.
- Used in Mobile RAN installations where structured cabling is required.
- Supports powering connected devices with PoE++, PoE+, and PoE.
- Used for HDBaseT connectivity.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Insulation Material | PO - Polyolefin |
| Color Code | White & Blue, White & Orange, White & Green, White & Brown |
| Ripcord | Yes |
| Plenum number | 10GXW13 |
| Patents link | https://www.belden.com/patents |
| Max. Conductor DCR | 82 Ohm/km (25 Ohm/1000ft) |
| Max. capacitance unbalance | 45 pF/100m |
| UL Voltage Rating | 300 V (CMR), 300 V (CL3R) |
| Delay frequency | 100 MHz |
| Max. delay | 537.6 ns/100m |
| Max. delay skew | 45 ns/100ft |
| Nom. velocity of prop. | 70% |
| UL temperature | 90°C |
| Operating | -20°C To +75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Bend radius (stationary min.) | 1 in (25 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Bulk cable weight | 31 lbs/1000ft |
| Flammability / reaction to fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMR, CMR-LP (0.5A), CL3R-LP (0.5A) |
| CEC / C(UL) compliance | CMR |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6A |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
