Belden 10GXW12 009, CAT6A UTP 4 Pair 23 AWG Solid White
Description

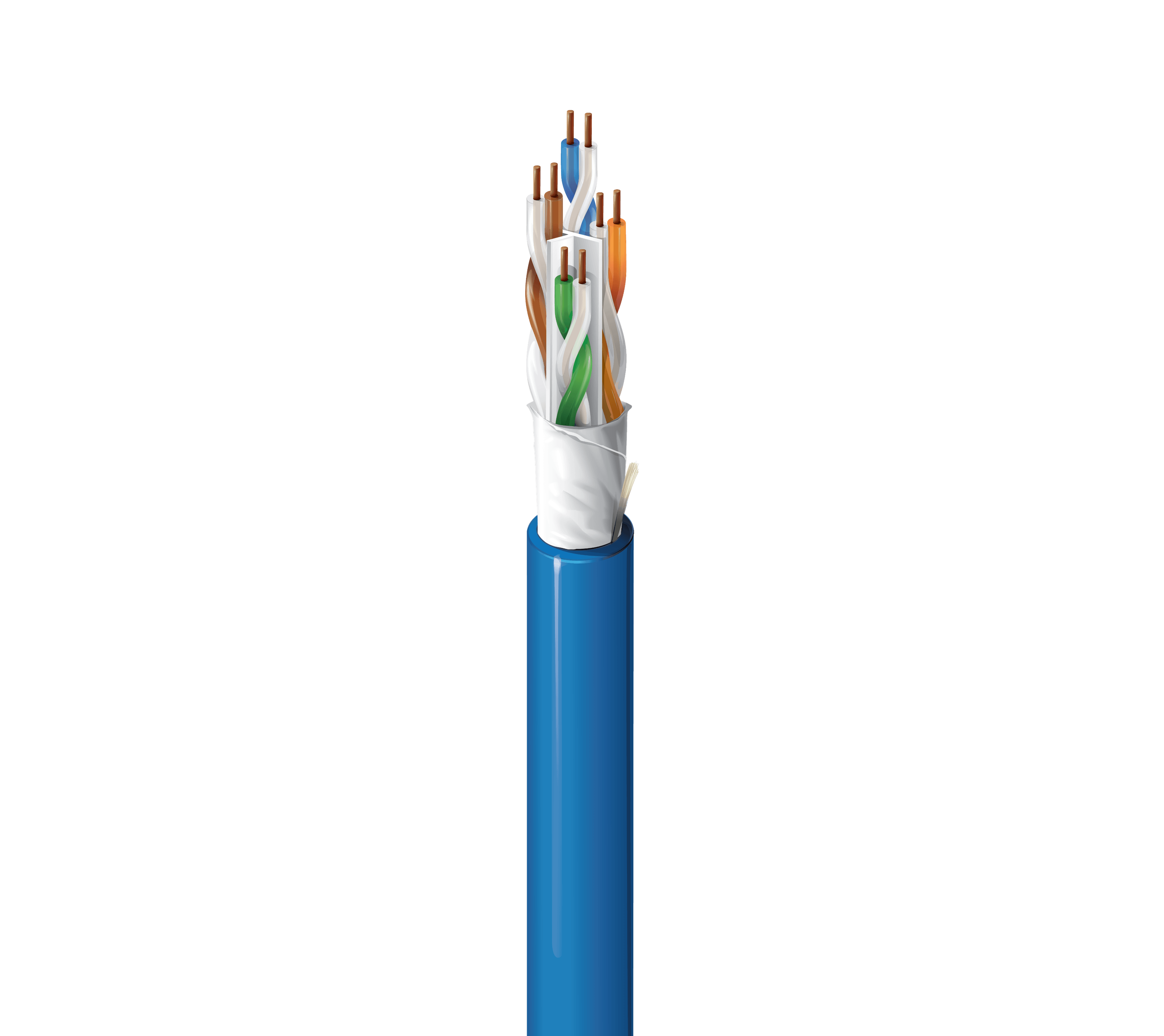

Belden 10GXW12 009 is a Category 6A premise horizontal cable rated to 500MHz for Ethernet 10GBASE-T and modern wireless backhaul needs. It is built with 4 pair of 23 AWG solid bare copper conductors in a U/UTP construction and includes a PVC jacket. This riser-rated CMR cable uses a center member (Patented T-Spline®) with EquiBlock™ Barrier Technology to help maintain consistent performance. The jacket color is white, and the standard pair color code supports straightforward identification during installation.
Belden 10GXW12 009 Key Features
- Category 6A premise horizontal cable rated to 500MHz for high-performance network cabling.
- Supports Ethernet 10GBASE-T and HDBaseT.
- Designed to support PoE++, PoE+, and PoE deployments.
- U/UTP construction with 4 pair of 23 AWG solid bare copper conductors.
- Riser-rated CMR cable with a PVC jacket in white.
- Includes a center member (Patented T-Spline®) with EquiBlock™ Barrier Technology.
Belden 10GXW12 009 Applications
- Intended for premise horizontal cable installations.
- Supports Ethernet 10GBASE-T links in high-performance network environments.
- Used in Wi-Fi 6 and Wi-Fi 5 deployments.
- Fits In-Building Wireless and In-Building Small Cells installations.
- Suitable for Mobile RAN connectivity needs.
- Supports PoE++, PoE+, and PoE to deliver power and data over the same cabling.
- Used for HDBaseT connectivity.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 6A |
| Shield Type | U/UTP |
| Number of pairs | 4 |
| Conductor size | 23 AWG |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PO - Polyolefin |
| Pair color code | White & Blue, White & Orange, White & Green, White & Brown |
| Separator | Center Member (Patented T-Spline®), EquiBlock™ Barrier Technology |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Color | White |
| Ripcord | Yes |
| Plenum number | 10GXW13 |
| Overall cable diameter (nominal) | 0.260 in (6.60 mm) |
| Bulk cable weight | 31 lbs/1000ft |
| Premise horizontal cable rating | Category 6A Premise Horizontal Cable (500MHz) |
| Max. Conductor DCR | 82 Ohm/km (25 Ohm/1000ft) |
| Max. capacitance unbalance | 45 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew max. | 45 ns/100ft |
| Nom. velocity of prop. | 70% |
| UL Voltage Rating | 300 V (CMR), 300 V (CL3R) |
| UL temperature | 90°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 1 in (25 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Environmental suitability | Riser, Indoor |
| Flammability / reaction to fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMR, CMR-LP (0.5A), CL3R-LP (0.5A) |
| CEC / C(UL) compliance | CMR |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6A |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Priced Per | FT |
