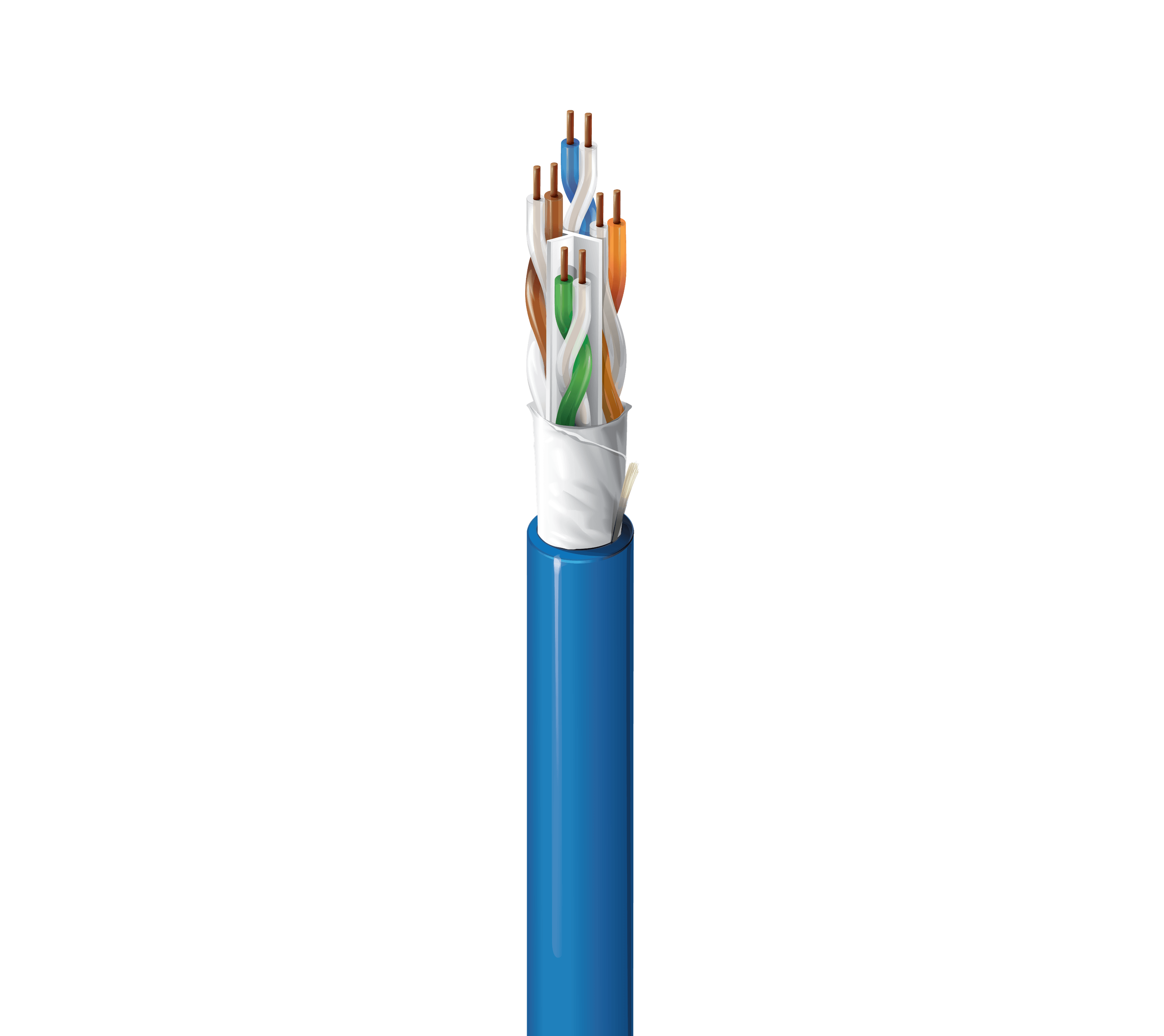

Belden 10GXW13 D15, CAT6A UTP 4 Pair 23 AWG Blue
SKU:Belden 10GXW13 D15
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 10GXW13 D15 is a Category 6A premise horizontal data cable designed for high-performance Ethernet, including Ethernet 10GBASE-T, with bandwidth up to 500MHz. It features 4 pair 23 AWG solid bare copper conductors in a U/UTP construction with FEP insulation. This plenum-rated Plenum-CMP cable uses a Flamarrest® PVC-LS jacket and includes a patented X-Spline® center member with EquiBlock™ Barrier Technology to help maintain consistent pair geometry. Environmental suitability is Plenum, Indoor.
Belden 10GXW13 D15 Key Features
- Category 6A premise horizontal cable rated to 500MHz for high-performance Ethernet, including Ethernet 10GBASE-T.
- 4 pair 23 AWG solid bare copper conductors in a U/UTP - unshielded twisted pair construction.
- Plenum-rated Plenum-CMP design with environmental suitability: Plenum, Indoor.
- Flamarrest® PVC-LS jacket with jacket color: Blue.
- Patented X-Spline® center member with EquiBlock™ Barrier Technology and ripcord: Yes.
Belden 10GXW13 D15 Applications
- Designed for premise horizontal cable installations in structured cabling environments.
- Supports Ethernet 10GBASE-T links where high-performance Ethernet connectivity is required.
- Works for Wi-Fi 6 and Wi-Fi 5 deployments as part of in-building network infrastructure.
- Fits in-building wireless and in-building small cells installations within indoor spaces.
- Serves mobile RAN environments where in-building connectivity is needed.
- Supports PoE++, PoE+, and PoE for network and power delivery needs.
- Suitable for HDBaseT applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Color Code | White & Blue, White & Orange, White & Green, White & Brown |
| Jacket Material | PVC - Polyvinyl Chloride |
| Material trade name | Flamarrest® |
| Overall cable diameter (nominal) | 0.250 in (6.35 mm) |
| Bulk cable weight | 34 lbs/1000ft (51 kg/km) |
| Max. Conductor DCR | 82 Ohm/km (25 Ohm/1000ft) |
| Max. capacitance unbalance | 45 pF/100m |
| Max. delay | 537.6 ns/100m |
| Max. delay skew | 45 ns/100m |
| Nom. velocity of prop. | 69% |
| UL Voltage Rating | 300 V (CMP) |
| UL temperature | 105°C |
| Operating | -20°C To +75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Bend radius (stationary min.) | 1 in (25 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6 |
| NEC / UL compliance | Article 800, CMP, CMP-LP (0.5A), CL3P-LP (0.5A) |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6A |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Patent information | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
