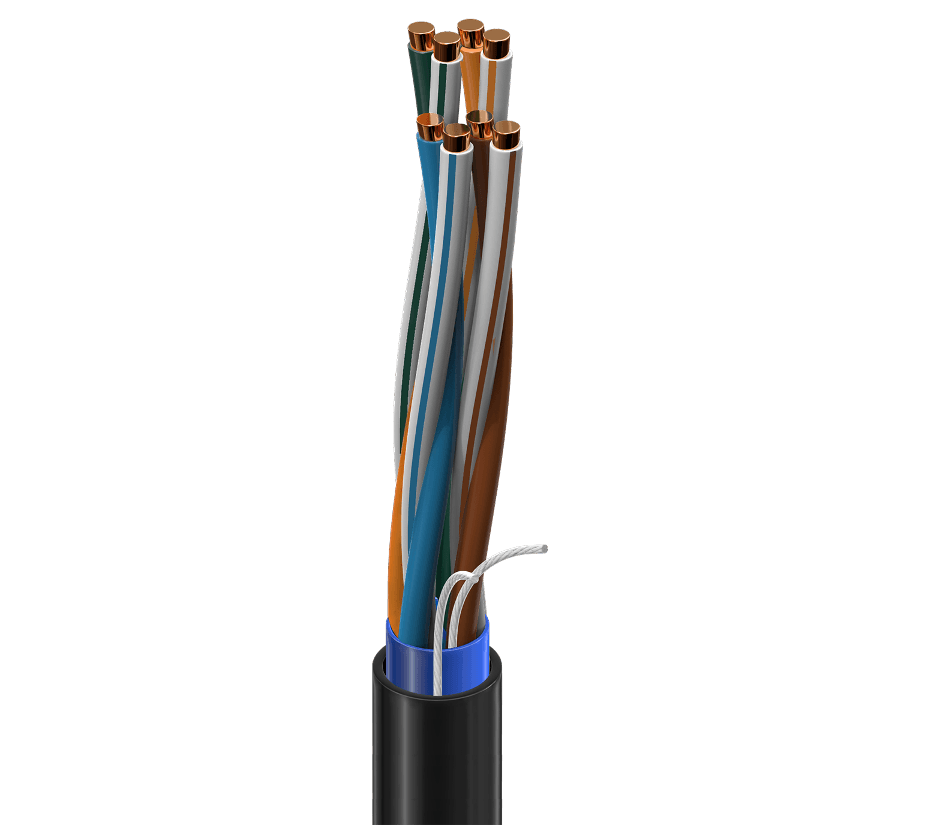

Belden 11700A 1NH, 24 AWG 4 PAIR UTP CAT5E PVC CM
SKU:Belden 11700A 1NH
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 11700A 1NH is an Industrial Ethernet Category 5e U/UTP cable built with 4 bonded pairs of 24 AWG solid bare copper conductors for data communication. It features PO insulation with a PVC inner jacket and PVC outer jacket, plus ripcords to support easier jacket removal during installation. Designed for indoor/outdoor use, it carries UL 1666 Riser and Article 800 CMR / CMX-Outdoor compliance, and lists IEEE 802.3bt Type 1, Type 2, Type 3.
Belden 11700A 1NH Key Features
- Category 5e U/UTP - unshielded twisted pair construction for Industrial Ethernet connectivity.
- 4 bonded pairs of 24 AWG solid bare copper conductors.
- PO - polyolefin insulation with a PVC - polyvinyl chloride inner jacket and PVC - polyvinyl chloride outer jacket.
- Ripcords included for both the inner jacket and outer jacket to help simplify jacket removal.
- Environmental suitability: indoor/outdoor, indoor, outdoor, sunlight resistance, oil resistance, aerial - when supported by messenger wire.
- Flammability / reaction to fire: UL 1666 Riser, FT4, IEC 60332-1-2.
- NEC / UL compliance: Article 800, CMR, CMX-Outdoor.
- IEEE compliance: IEEE 802.3bt Type 1, Type 2, Type 3.
- TIA/EIA compliance: ANSI/TIA-568.2-D Category 5e.
Belden 11700A 1NH Applications
- Supports data communication in Industrial Ethernet networks.
- Enables indoor/outdoor installations, including outdoor environments.
- Fits harsh environment installations where durability is a practical requirement.
- Handles exposure to abrasion, including abrasive areas such as mining.
- Serves IIoT deployments where networked devices need reliable connectivity.
- Integrates into factory or process automation systems that rely on consistent Ethernet communication.
- Connects IP cameras and devices in networked monitoring and control setups.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 4 |
| Bonded-pair | Yes |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Inner Jacket Nominal Diameter | 0.202 in (5.13 mm) |
| Outer jacket nominal diameter | 0.285 in (7.24 mm) |
| Overall cable diameter (nominal) | 0.285 in (7.24 mm) |
| Jacket Color | Teal |
| UL Voltage Rating | 300 V (CMR), 300 V (CMX-Outdoor) |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 66 pF/ft |
| Max. delay | 510 ns/100m |
| Max. delay skew | 25 ns/100m |
| Nom. velocity of prop. | 70% |
| UL temperature | 60°C |
| Operating temperature | -40°C To +75°C |
| Installation temperature | -25°C To +75°C |
| Storage temperature | -40°C To +85°C |
| Bend radius (stationary min.) | 0.29 in (7.4 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| Bulk cable weight | 35 lbs/1000ft |
| CEC / C(UL) compliance | CMR |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| Third party performance verification | Category 5e |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other standard compliance(s) | P-07-KA060005-MSHA |
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
