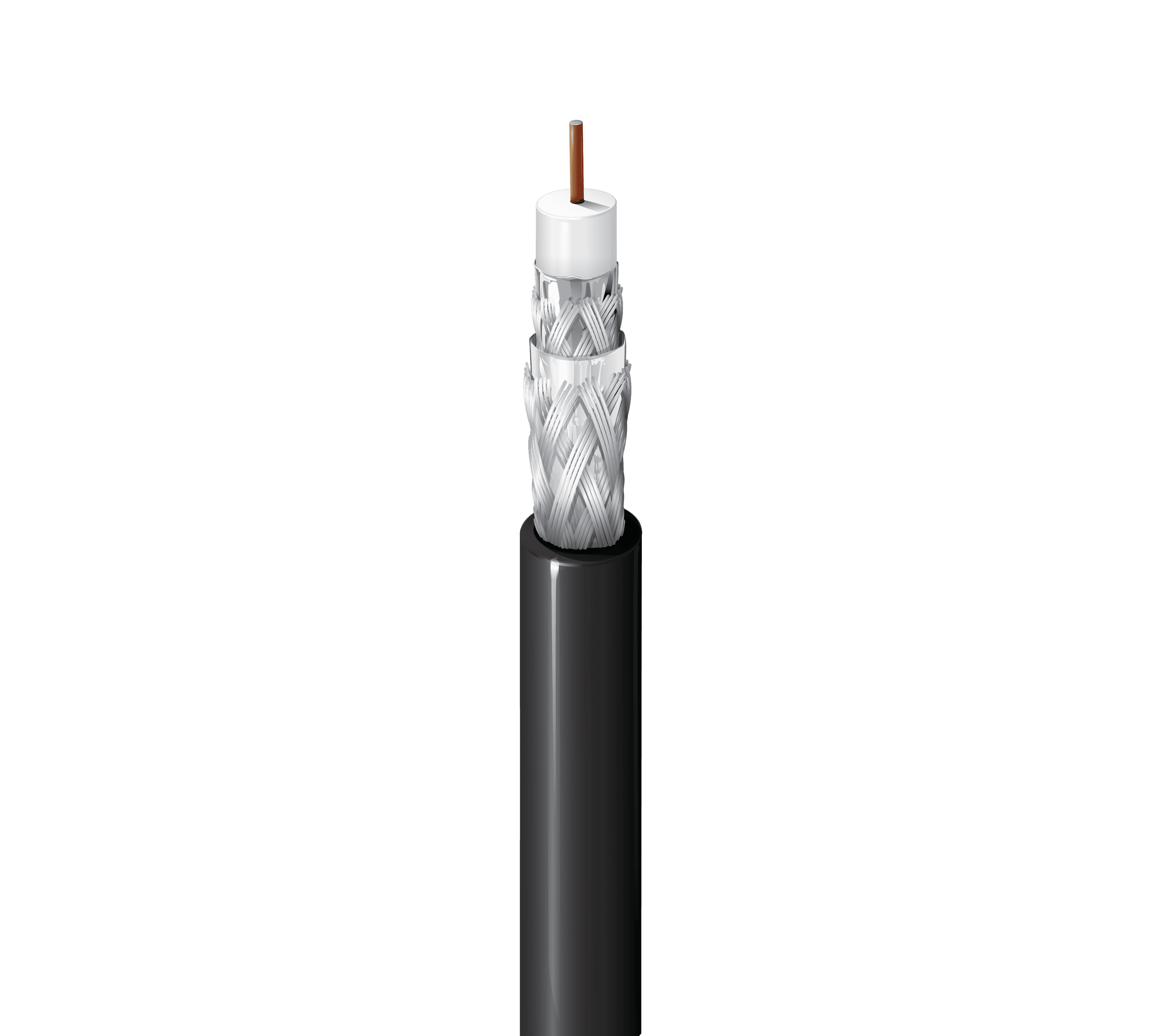

Belden 1189A 010, Coax Broadband CATV Cable 18 AWG DBL SH PVC
SKU:Belden 1189A 010
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 1189A 010 is a Series 6 broadband coax cable for Cable Television (CATV), RF drop cable runs, and Over-The-Air (OTA) antenna connections. It features an 18 AWG solid BCCS - Bare Copper Covered Steel conductor, PE - Polyethylene (Foam) insulation, and quad-shield construction for signal protection. This RG 6 coax is finished with a black PVC - Polyvinyl Chloride jacket and is rated CM with a UL Voltage Rating of 300 V (CM). It is designed for reliable indoor installations.
Belden 1189A 010 Key Features
- Series type: 6; Coax type: RG 6 for broadband coax connectivity.
- 18 AWG solid BCCS - Bare Copper Covered Steel conductor with Nom. Conductor Diameter: 0.040 in.
- PE - Polyethylene (Foam) insulation with Nom. Insulation Diameter: 0.180 in (4.57 mm).
- Shield Type: Quad Shield (F/B+F/B) with foil and aluminum braid layers (Foil + 60% Aluminum Braid + Foil + 40% Aluminum Braid).
- Black PVC - Polyvinyl Chloride jacket; Overall Cable Diameter (nominal): 0.294 in (7.47 mm).
- NEC / UL compliance: CM, CATV; UL Voltage Rating: 300 V (CM).
Belden 1189A 010 Applications
- Supports broadband signal distribution where a Series 6 coax cable is specified.
- Use it for Cable Television (CATV) connections in indoor installations.
- Choose it for RF drop cable runs where quad-shield construction is desired to help reduce interference.
- Connect Over-The-Air (OTA) antennas to receiving equipment for antenna signal routing.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Color Code | White |
| Nom. jacket diameter | 0.294 in (7.47 mm) |
| Outer shield layer 1 | Tape, Tri-Laminate (Alum+Poly+Alum), Duobond® II, 100% |
| Outer shield layer 2 | Braid, Aluminum, 60% |
| Outer shield layer 3 | Tape, Tri-Laminate (Alum+Poly+Alum), Duofoil®, 100% |
| Outer shield layer 4 | Braid, Aluminum, 40% |
| Nom. characteristic impedance | 75 Ohm |
| Nom. velocity of prop. | 83% |
| Nom. capacitance (Cond-to-Shield) | 16.2 pF/ft (53.1 pF/m) |
| Nom. conductor DCR | 28 Ohm/1000ft |
| Nom. outer shield DCR | 4.8 Ohm/1000ft (16 Ohm/km) |
| Return loss 5-1000 MHz | 20 dB min. structural return loss |
| Attenuation max. at 5 MHz | 0.67 dB/100ft |
| Attenuation max. at 55 MHz | 1.60 dB/100ft |
| Attenuation max. at 211 MHz | 2.87 dB/100ft |
| Attenuation max. at 250 MHz | 3.30 dB/100ft |
| Attenuation max. at 270 MHz | 3.24 dB/100ft |
| Attenuation max. at 300 MHz | 3.43 dB/100ft |
| Attenuation max. at 330 MHz | 3.74 dB/100ft |
| Attenuation max. at 350 MHz | 3.72 dB/100ft |
| Attenuation max. at 400 MHz | 4.00 dB/100ft |
| Attenuation max. at 450 MHz | 4.26 dB/100ft |
| Attenuation max. at 500 MHz | 4.66 dB/100ft |
| Attenuation max. at 550 MHz | 4.71 dB/100ft |
| Attenuation max. at 600 MHz | 5.10 dB/100ft |
| Attenuation max. at 750 MHz | 5.59 dB/100ft |
| Attenuation max. at 870 MHz | 6.00 dB/100ft |
| Attenuation max. at 1000 MHz | 6.54 dB/100ft |
| Operating temperature | -40°C to +80°C |
| Installation min. bend radius | 2.9 in (74 mm) |
| Max Pull Tension | 176 lbs (79.8 kg) |
| Bulk cable weight | 32 lbs/1000ft |
| Environmental suitability | Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger Wire |
| CEC / C(UL) compliance | CM |
| Flammability / reaction to fire | UL1685 UL Loading |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other standard compliance(s) | ANSI/SCTE 74 |
| Sustainability | CA Prop 65 |
| Plenum number | 1189AP |
| Priced Per | FT |
