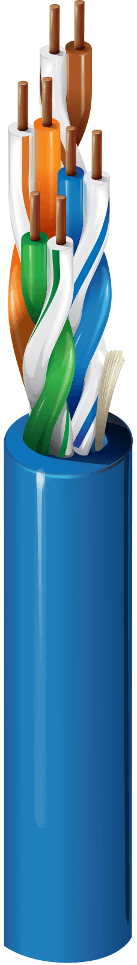

Belden 1213 D15U, Enhanced Cat5E 4 pair UTP CMP Blue Box
SKU:Belden 1213 D15U
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 1213 D15U is a Category 5E+ premise horizontal cable (350MHz) built with 4 pair 24 AWG solid bare copper conductors in a U/UTP construction. It uses a Flamarrest® PVC-LS jacket with ripcord and is rated Plenum-CMP for plenum, indoor environments. This cable supports Ethernet 1000BASE-T, Ethernet 100BASE-TX, and Ethernet 10BASE-T, and it is suitable for PoE, PoE+, and PoE++ deployments.
Belden 1213 D15U Key Features
- Category 5E+ premise horizontal cable (350MHz) for structured cabling runs.
- U/UTP construction with 4 pair for balanced twisted-pair Ethernet cabling.
- 24 AWG solid BC - bare copper conductors.
- Flamarrest® PVC-LS jacket with ripcord to help streamline pulls and terminations.
- Plenum-CMP fire rating for plenum, indoor installations.
- Supports Ethernet 1000BASE-T, Ethernet 100BASE-TX, and Ethernet 10BASE-T.
- Suitable for PoE, PoE+, and PoE++ applications.
Belden 1213 D15U Applications
- Use it for premise horizontal cable runs in building cabling systems.
- Support Ethernet 1000BASE-T links where Category 5e performance is required.
- Deploy it with Ethernet 100BASE-TX networks in structured cabling installations.
- Enable Ethernet 10BASE-T connectivity in compatible systems.
- Choose it for PoE, PoE+, and PoE++ deployments where power and data are delivered over the same cabling.
Additional Information
- Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 5e |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Pair color code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket Color | Blue |
| Overall cable diameter (nominal) | 0.207 in (5.26 mm) |
| Bulk cable weight | 21 lbs/1000ft |
| Max. Conductor DCR | 89 Ohm/km (27 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 25 ns/100m |
| Nom. velocity of prop. | 72% |
| UL Voltage Rating | 300 V (CMP) |
| UL temperature | 90°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 2.25 in (57.2 mm) |
| Bend radius (installation min.) | 2.75 in (69.9 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-90-661 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 5e |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3 |
| NEMA Compliance | NEMA WC-63.1 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Non-Plenum number | 1212 |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
