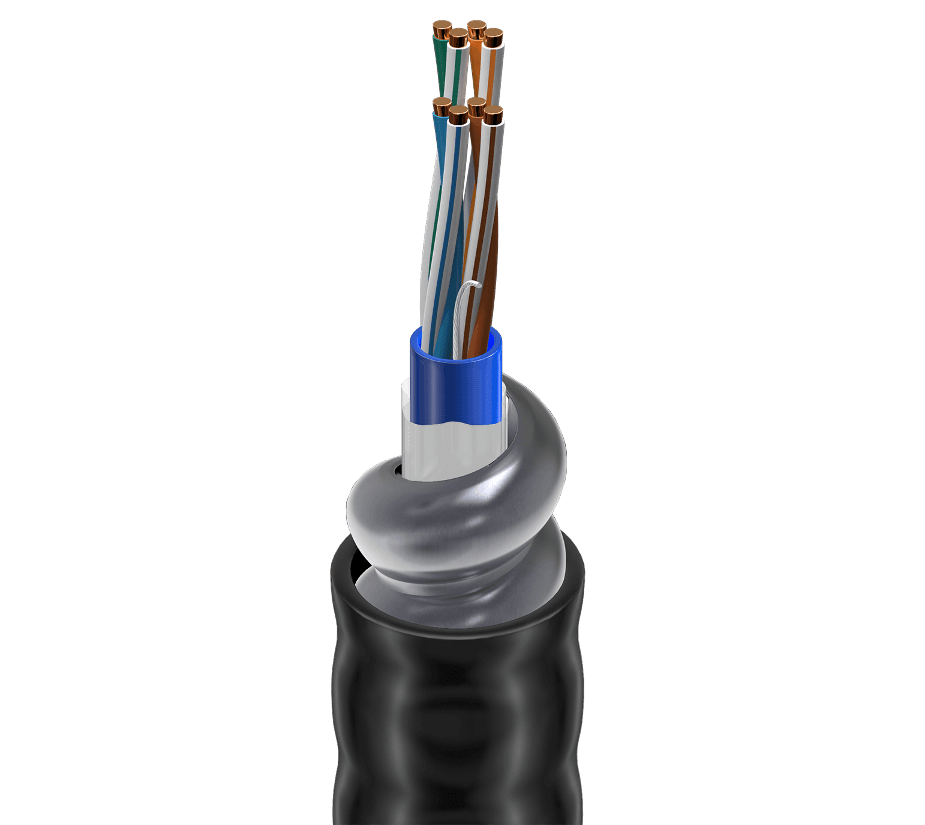

Belden 121700A 010, Cat 5e 4 Pair 24 AWG Solid BC AIA Armor PVC, Black Jacket
SKU:Belden 121700A 010
● In stock
× 100 ft = Total: 100 ft
Description
Belden 121700A 010 is an Industrial Ethernet Category 5e data cable designed for harsh environments where protection against rodent, crush, or cut-through force is needed. It features 4 bonded pairs of 24 AWG Solid Bare Copper conductors with PO insulation, plus a PVC inner jacket with ripcord and an AIA - Aluminum Interlock Armor layer. The Black PVC outer jacket is listed for Indoor/Outdoor use with Sunlight Resistance and Oil Resistance, including Aerial installations when supported by messenger Wire. Electrical characteristics include 93.8 Ohm/km (28.6 Ohm/1000ft) max Conductor DCR, 66 pF/ft max capacitance unbalance, and 300 V (CM) / 300 V (CMG-HL) voltage ratings.
Belden 121700A 010 Key Features
- Industrial Ethernet Category 5e data cable construction for network data communication.
- Built with 4 bonded pairs of 24 AWG Solid Bare Copper conductors with PO - Polyolefin insulation.
- Includes a PVC - Polyvinyl Chloride inner jacket with ripcord and AIA - Aluminum Interlock Armor for added mechanical protection.
- Black PVC - Polyvinyl Chloride outer jacket for Indoor/Outdoor use with Sunlight Resistance and Oil Resistance, including Aerial - When supported by messenger Wire.
- Electrical performance includes 93.8 Ohm/km (28.6 Ohm/1000ft) max Conductor DCR and 66 pF/ft max capacitance unbalance.
- Voltage ratings: 300 V (CM) and 300 V (CMG-HL).
Belden 121700A 010 Applications
- Enables IIoT, factory or process automation, IP cameras and devices, and data communication in harsh environment installations.
- Designed for locations where the cable may be exposed to rodent activity, crush conditions, or cut-through force.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Inner Jacket Nominal Diameter | 0.202 in (5.13 mm) |
| Overall cable diameter (nominal) | 0.553 in (14.0 mm) |
| Bulk cable weight | 123 lbs/1000ft |
| Max. delay | 510 ns/100m |
| Max. delay skew | 25 ns/100m |
| Nom. velocity of prop. | 70% |
| Stationary min. bend radius | 6.5 in (170 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| UL temperature | 60°C |
| Operating temperature | -40°C To +75°C |
| Installation temperature | -25°C To +75°C |
| Storage temperature | -25°C To +85°C |
| Flammability / reaction to fire | UL 1685 (UL Loading), FT4 |
| NEC / UL compliance | Article 800, CM |
| CEC / C(UL) compliance | CMG, HL |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Patent information | https://www.belden.com/patents |
| Priced Per | FT |
