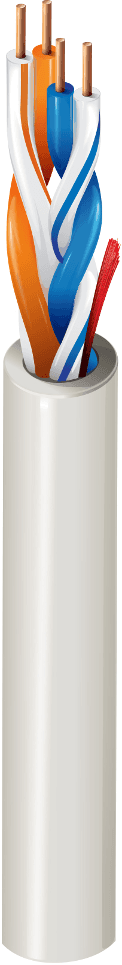

Belden 1227A1 008U, Multi Conductor Category 3 Cable 2 Pair UTP CMR Gray
SKU:Belden 1227A1 008U
$430.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 1227A1 008U is a Category 3 premise horizontal cable rated to 16 MHz, built with 2 pair of 24 AWG solid BC - Bare Copper conductors in a U/UTP design. It is a riser-CMR cable with a gray PVC - Polyvinyl Chloride jacket and a 300 V (CMR) UL voltage rating. This cable is specified for Ethernet 10BASE-T, analog phone, and FAX installations.
Belden 1227A1 008U Key Features
- Category 3 premise horizontal cable rated to 16 MHz for voice and low-speed data cabling.
- 2 pair construction with 24 AWG solid BC - Bare Copper conductors in a U/UTP design.
- Riser-CMR fire rating with UL 1666 Riser, FT4, and IEC 60332-1-2 flammability / reaction to fire listings.
- 300 V (CMR) UL voltage rating.
- Gray PVC - Polyvinyl Chloride jacket for riser installations.
Belden 1227A1 008U Applications
- Use for Ethernet 10BASE-T connections where Category 3 performance is specified.
- Support analog phone cabling in premise horizontal runs, including riser pathways where CMR is required.
- Install for FAX lines in building cabling systems that use Category 3 infrastructure.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 3 |
| Cable type | Category 3 premise horizontal cable (16MHz) |
| Insulation Material | PO - Polyolefin |
| Insulation color code | White/Blue Stripe & Blue, White/Orange Stripe & Orange |
| Ripcord | No |
| Plenum number | 1243A2 |
| Overall cable diameter (nominal) | 0.173 in (4.39 mm) |
| Max Pull Tension | 15 lbs (6.8 kg) |
| Bulk cable weight | 12 lbs/1000ft |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 1.75 in (44.5 mm) |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 90 pF/100m |
| Delay (16 MHz) - max. delay | 543 ns/100m |
| Delay (16 MHz) - max. delay skew | 45 ns/100m |
| Delay (16 MHz) - nom. velocity of prop. | 70% |
| High frequency performance (1 MHz) | 2.6 dB/100m insertion loss (attenuation); 41.0 min. NEXT; 12.0 min. SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. fitted impedance [Ohm] |
| High frequency performance (4 MHz) | 5.6 dB/100m insertion loss (attenuation); 32.0 min. NEXT; 12.0 min. SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. fitted impedance [Ohm] |
| High frequency performance (8 MHz) | 8.5 dB/100m insertion loss (attenuation); 27.0 min. NEXT; 12.0 min. SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. fitted impedance [Ohm] |
| High frequency performance (10 MHz) | 9.7 dB/100m insertion loss (attenuation); 26.0 min. NEXT; 12.0 min. SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. fitted impedance [Ohm] |
| High frequency performance (16 MHz) | 13.1 dB/100m insertion loss (attenuation); 23.0 min. NEXT; 10.0 min. SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. fitted impedance [Ohm] |
| UL temperature | 75°C |
| Operating temperature | -20°C to +75°C |
| Installation temperature | 0°C to +50°C |
| Storage temperature | -20°C to +75°C |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMR |
| ICEA compliance | S-90-661 |
| NEMA Compliance | NEMA WC-63.1 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 3 |
| Third party performance verification | Category 3 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Environmental suitability | Riser, Indoor, Outdoor, Sunlight Resistance |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
