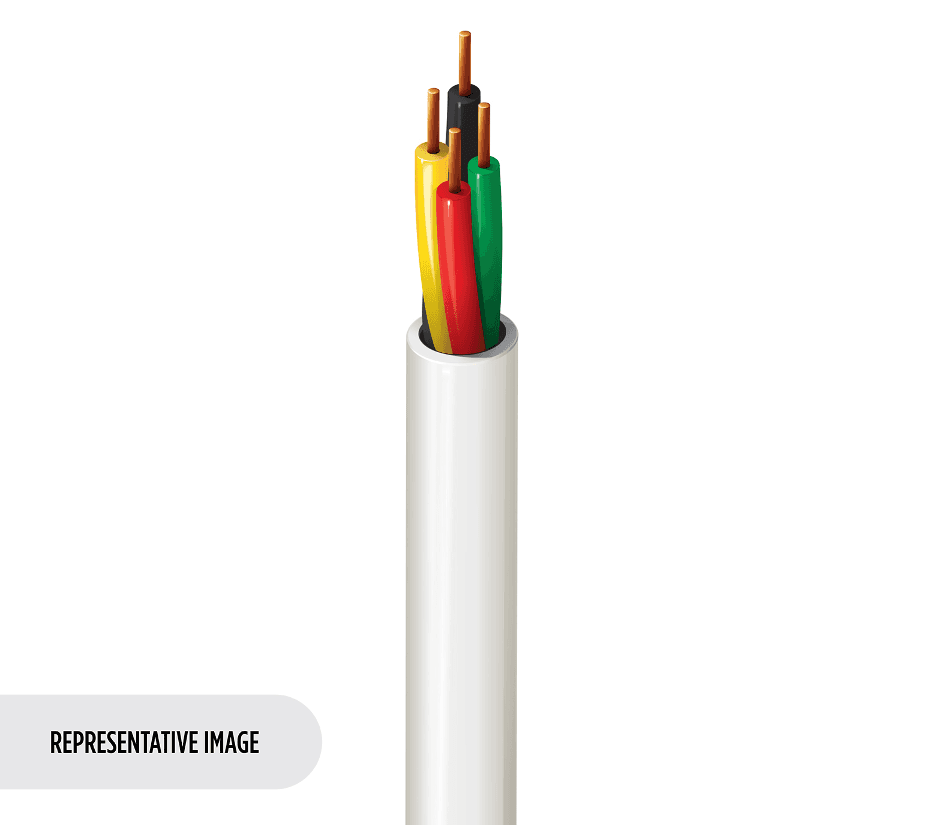

Belden 1242A 008U, Multi Conductor Audio Control Cable 4C PE PVC CM

Belden 1242A 008U is a multi-conductor audio, control, and instrument cable with 4 solid 22 AWG BC - Bare Copper conductors, PO - Polyolefin insulation, and a PVC - Polyvinyl Chloride jacket. It is rated 300 V and CM, with environmental suitability listed as Indoor - Riser, Indoor. Electrical performance includes 15 pF/ft (49 pF/m) nominal capacitance cond-to-cond and 2.2 Amps per conductor at 25ºC. The cable is unshielded (Outer Shield: No Shield) and has a Gray jacket.

Belden 1242A 008U Key Features

• 4 solid 22 AWG conductors using BC - Bare Copper for consistent conductor construction.
• PO - Polyolefin insulation with Nom. Insulation Thickness of 0.009 in (0.23 mm) and Nom. Insulation Diameter of 0.0437 in (1.11 mm).
• PVC - Polyvinyl Chloride jacket with Nom. Jacket thickness of 0.025 in (0.64 mm) and Overall Cable Diameter (nominal) of 0.156 in (3.96 mm).
• Unshielded design (Outer Shield: No Shield).
• Rated UL Voltage Rating: 300 V and NEC / UL compliance: Article 800, CM.
• Environmental suitability listed as Indoor - Riser, Indoor.

Belden 1242A 008U Applications

• Use for low voltage analog signals (4-20ma, 0-10v, ...) where consistent signal wiring is needed.
• Support low voltage control (24v, …) in control and automation wiring.
• Choose it for line level audio connections in installed audio signal paths.
• Use it for voice communications wiring in building and system interconnects.
• Commonly used for panel wiring to route signals and control connections within enclosures.
