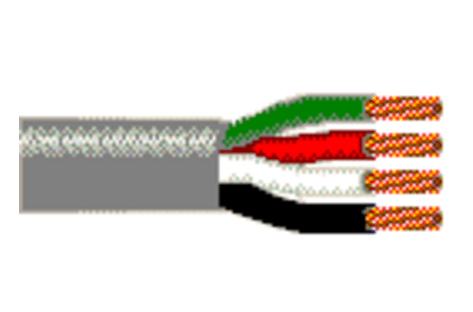

Belden 1308A 010, Multi Conductor Speaker Cable 4C 16 AWG Unshielded 300 Volt PVC
Description
Belden 1308A 010 is a flexible, unshielded multi conductor speaker cable with 4 x 16 AWG oxygen-free bare copper (high conductivity) conductors, PE insulation, and a PVC jacket. It is rated 300 V (CM, CL3) with a 75°C UL temperature rating and supports up to 9 Amps per Conductor @ 25°C. Color-coded conductors (Black, Red, White, Green) and a Black jacket help simplify identification during installation.
Belden 1308A 010 Key Features
- Built with 4 x 16 AWG oxygen-free bare copper (high conductivity) conductors for speaker wiring.
- PE - Polyethylene insulation with a PVC - Polyvinyl Chloride jacket.
- Rated 300 V (CM, CL3) with a 75°C UL temperature rating.
- Supports up to 9 Amps per Conductor @ 25°C.
- Color code: Black, Red, White, Green with a Black jacket for easier conductor identification.
- Flexible design with bend radius (stationary min.) 2.7 in (69 mm) and bend radius (installation min.) 2.7 in (69 mm).
Belden 1308A 010 Applications
- Use it for speaker cable installations that require a multi conductor speaker cable.
- Choose it for direct burial installations.
- Support indoor/outdoor home theater speaker runs with this cable.
- Install it for in-wall speaker applications.
- Use it for outdoor speaker installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 4 |
| Conductor size | 16 AWG |
| Conductor stranding | 65x34 |
| Conductor Material | Oxygen-Free Bare Copper (High Conductivity) |
| Insulation Material | PE - Polyethylene |
| Nom. thickness | 0.013 in (0.33 mm) |
| Nom. insulation diameter | 0.083 in (2.1 mm) |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket Color | Black |
| Overall cable diameter (nominal) | 0.270 in (6.86 mm) |
| Bulk cable weight | 50 lbs/1000ft (74 kg/km) |
| Nom. conductor DCR | 4 Ohm/1000ft (13 Ohm/km) |
| Nom. capacitance cond-to-cond | 19.9 pF/ft (65.3 pF/m) |
| Nom. inductance | 0.16 µH/ft (0.52 µH/m) |
| Nom. velocity of prop. | 66% |
| Operating | -20°C To +75°C |
| Max Pull Tension | 130 lbs (59 kg) |
| Environmental suitability | Indoor (Not Riser or Plenum), Indoor, Outdoor |
| NEC / UL compliance | Article 725, Article 800, CL3, CM |
| CEC / C(UL) compliance | CM |
| Flammability / reaction to fire | UL1666 Riser, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Plenum number | 6202UE |
| Item Type | Belden Audio Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
