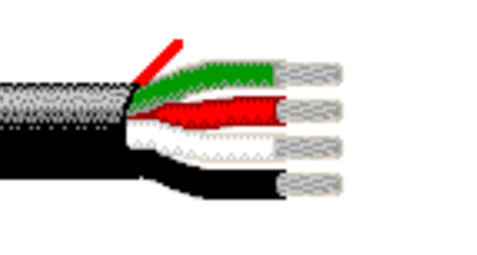

Belden 1315SB 010, Multi Conductor Speaker Cable 4C 14 AWG PP FRNHPO

Belden 1315SB 010 is a shipboard speaker cable for marine audio, intercom, and control applications. It features 4 stranded 14 AWG tinned copper conductors (41x30), PP - Polypropylene insulation, and an LSZH - Low Smoke Zero Halogen (Flame Retardant) jacket. The cable is rated 300 V RMS, supports 17.6 Amps per Conductor at 25ºC, and has a UL temperature rating of 105°C. It is intended for indoor/outdoor use with sunlight resistance and meets CMG-LS requirements.

Belden 1315SB 010 Key Features

• 4 stranded 14 AWG tinned copper conductors (41x30) for shipboard speaker and signal distribution.
• PP - Polypropylene insulation with an LSZH - Low Smoke Zero Halogen (Flame Retardant) jacket.
• 300 V RMS UL voltage rating and 17.6 Amps per Conductor at 25ºC maximum recommended current.
• UL temperature rating of 105°C with an operating temperature range of -30°C to +105°C.
• Indoor/outdoor suitability with sunlight resistance.
• Compliance listings include CMG-LS, CMG-ST1, and IEEE Std. 45 clause 23.

Belden 1315SB 010 Applications

• Supports shipboard speaker and audio wiring where a marine-focused cable is required.
• Works for intercom and control circuits in shipboard environments.
• Meets installation requirements that call out ABS Type Approved and IEEE 45 clause 23.
• Helps satisfy applications requiring CMG-LS and CMG-ST1 compliance.
• Fits installations specifying IEC 60092-376 clause 17 and 60092-351 requirements.
• Aligns with projects that reference 60754-1, 60754-2, and 61034.
• Supports limited-smoke and flame testing requirements such as UL1685 FT4 Loading, IEC 60332-3-22 (Category A), 60332-1, and IEEE 1203.
