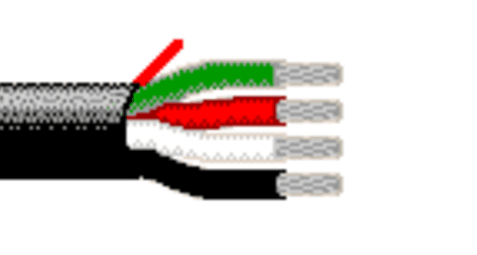

Belden 1317SB 010, Multi Conductor Speaker Cable 4C 12 AWG PP FRNHPO Black
Description
Belden 1317SB 010 is a shipboard speaker cable for marine audio, control, and intercom installations. It is built with 4 conductors of 12 AWG stranded tinned copper, polypropylene insulation, and a flame-retardant LSZH jacket. The cable is rated 300 V RMS and 105°C, and it supports CMG-LS applications along with multiple marine/industrial fire test requirements. A ripcord and sequential footage marking every two feet help streamline jacket removal and installation.
Belden 1317SB 010 Key Features
- 4 conductors with 12 AWG (American Wire Gauge) stranded tinned copper conductors for shipboard speaker and signal distribution.
- PP - Polypropylene insulation with insulation color code: Black, White, Red, Green.
- LSZH - Low Smoke Zero Halogen (Flame Retardant) jacket with jacket color: Black.
- NEC / UL compliance: CMG-LS and CEC / C(UL) compliance: CMG-ST1.
- UL voltage rating: 300 V RMS and UL temperature: 105°C.
- Ripcord: Yes, with sequential footage marking every two feet to support efficient installation.
Belden 1317SB 010 Applications
- Use for speaker wiring where a shipboard speaker cable is specified.
- Support audio connections in marine installations.
- Meet control wiring needs in shipboard systems.
- Install for intercom systems on ships.
- Use in shipboard environments.
- ABS Type Approved.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor stranding | 65x30 |
| Conductor Material | TC - Tinned Copper |
| Nom. insulation diameter | 0.115 in (2.92 mm) |
| Nom. diameter | 0.382 in |
| Inner shield | No Shield |
| Outer shield | No Shield |
| Bulk cable weight | 124 lbs/1000ft (185 kg/km) |
| Operating temperature | -30°C To +105°C |
| Max Pull Tension | 338 lbs (153 kg) |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
| CPR compliance | CPR Euroclass: Fca |
| Flammability / reaction to fire | UL1685 FT4 Loading, Limited Smoke, 1202, IEC 60332-1-2, IEC 60332-3-22 |
| Suitable applications standards | CMG-LS, IEEE 45 clause 23, IEC 60092-376 clause 17, 60092-351, 60754-1, 60754-2, 61034, UL1685 FT4 Loading, Limited Smoke, IEC 60332-3-22 (Category A), 60332-1, IEEE 1202 |
| IEEE compliance | Std. 45 clause 23 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Audio Cable LSZH |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
