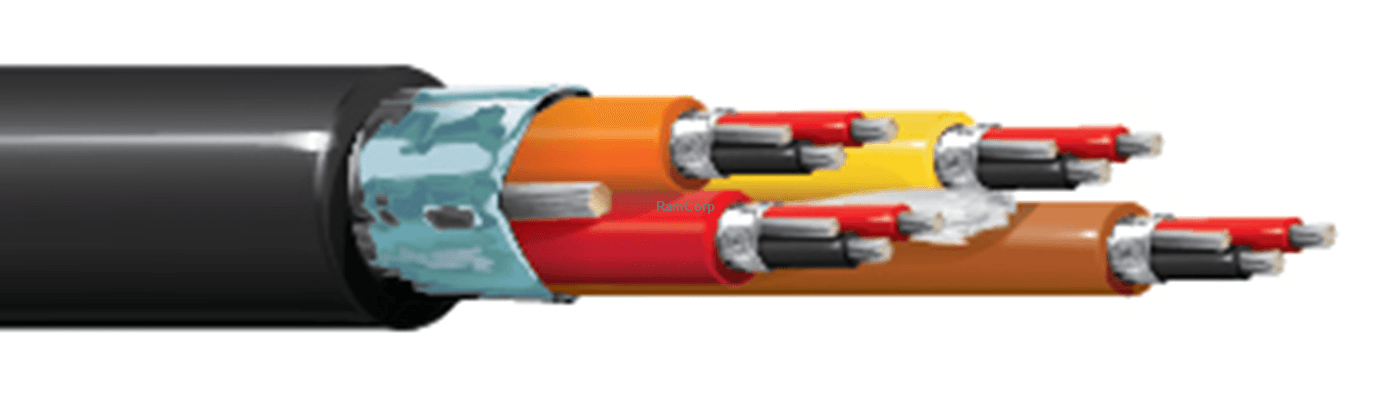

Belden 1512C B59, Multi Conductor Cable 8 Pair 24 AWG PVC
Description
Belden 1512C B59 is a CM-rated audio snake cable designed for multi-channel interconnects between audio equipment such as microphones, speakers, amplifiers, and mixing consoles. It is built with 24 AWG TC - Tinned Copper conductors, PP - Polypropylene insulation, and individually shielded pairs using Beldfoil® for 100% coverage. Numbered/color-coded PVC jackets are bonded to the shields so both strip simultaneously to help speed termination. An overall Beldfoil® shield with a drain wire and a flexible PVC jacket supports analog audio in Indoor (Not Riser or Plenum) installations.
Belden 1512C B59 Key Features
- CM-rated audio snake cable for multi-channel interconnects between microphones, speakers, amplifiers, and mixing consoles.
- Individually shielded pairs use Beldfoil® with 100% coverage for pair-level shielding.
- Numbered/color-coded PVC jackets are bonded to the shields so both strip simultaneously to help speed termination.
- Overall Beldfoil® shield with a drain wire supports analog audio signal interconnects.
- Environmental suitability is Indoor (Not Riser or Plenum), Indoor.
Belden 1512C B59 Applications
- Use for multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, and mixing consoles.
- Choose it for live events or studio sound setups where faster termination is helpful.
- Support analog audio interconnects in Indoor (Not Riser or Plenum), Indoor installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Audio snake cable |
| Conductor size | 24 AWG |
| Conductor stranding | 7x32 |
| Conductor Material | TC - Tinned Copper |
| Pairs | 8-24 AWG Tinned Copper pairs |
| Insulation Material | PP - Polypropylene |
| Nom. insulation thickness | 0.008 (unece.unit.INH) |
| Nom. insulation diameter | 0.04 in (1.0 mm) |
| Color Code | Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, Red & Black |
| Inner shield | Tape, Bi-Laminate (Alum+Poly), 100% |
| Outer shield | Tape, Bi-Laminate (Alum+Poly), 100% |
| Drain | Drain |
| Inner jacket | PVC - Polyvinyl Chloride, 0.015 in (0.38 mm), 0.113 (unece.unit.INH) |
| Outer jacket | Flexible PVC Jacket |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Outer jacket nom. thickness | 0.033 (unece.unit.INH) mm |
| Outer jacket nom. diameter | 0.452 in (11.5 mm) |
| Ripcord | Yes |
| UL Voltage Rating | 300 V RMS |
| Nom. conductor DCR | 23.3 (unece.unit.Ohm/1000ft) |
| Nom. capacitance cond-to-cond | 31 pF/ft (100 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 58 pF/ft (190 pF/m) |
| Nom. inductance | 0.18 µH/ft (0.59 µH/m) |
| Nom. velocity of prop. | 66% |
| Max. current | 1.05 Amps per Conductor at 25ºC |
| UL temperature | 60°C |
| Operating | -35°C To +75°C |
| Max Pull Tension | 152 (unece.unit.LBR) |
| Bulk cable weight | 117 (unece.unit.lbs/1000ft) |
| NEC / UL compliance | CM |
| CEC / C(UL) compliance | CM |
| Flammability / reaction to fire | UL1581 Vertical Tray^UL1685 FT4 Loading, Limited Smoke, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Audio Cable |
| Other Part Numbers | 1512C B59, 1512C B59100, 1512C B59250, 1512C B59500, 1512C B591000 |
| Priced Per | FT |
