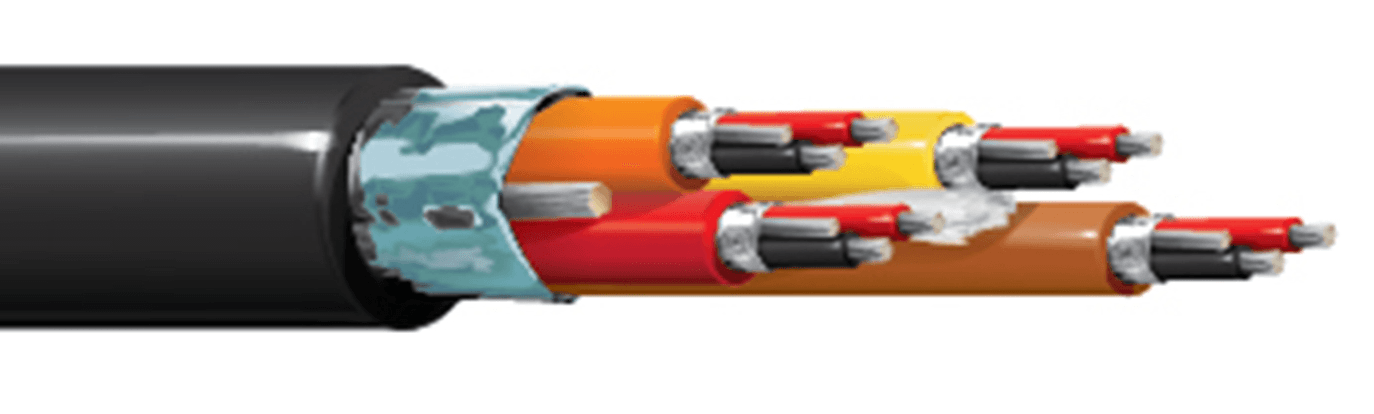

Belden 1513C B59, Multi Conductor Cable 12 Pair 24 AWG PVC
SKU:Belden 1513C B59
● In stock
Description
Belden 1513C B59 is a flexible 12 pair audio snake cable for multi-channel interconnects between audio equipment such as microphones, speakers, amplifiers, and mixing consoles. It features 24 AWG (7x32) TC - Tinned Copper conductors with PP - Polypropylene insulation, plus individually foil shielded pairs and an overall Beldfoil® shield. The PVC - Polyvinyl Chloride inner jackets are numbered/color-coded, and the PVC - Polyvinyl Chloride outer jacket includes a ripcord to support efficient installation. It is rated CM with 300 V (CM) and includes 50 Ohm impedance and 66% velocity of propagation.
Belden 1513C B59 Key Features
- The 12 pair construction supports organized multi-channel audio wiring in a single run.
- 24 AWG (7x32) TC - Tinned Copper conductors provide consistent connectivity for audio interconnects.
- PP - Polypropylene insulation with Black & Red color code helps maintain pair identification.
- Individually foil shielded pairs (Tape, Bi-Laminate (Alum+Poly), 100%) support noise rejection in live events or studio sound.
- The overall Beldfoil® shield with Tape, Bi-Laminate (Alum+Poly), 100% provides additional shielding coverage.
- Numbered, color-coded PVC - Polyvinyl Chloride inner jackets and adhered pair tapes support faster, cleaner stripping.
- The PVC - Polyvinyl Chloride outer jacket with Ripcord: Yes helps simplify installation and access.
- Rated CM with UL voltage rating: 300 V (CM).
Belden 1513C B59 Applications
- Use it for multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, and mixing consoles.
- In live events or studio sound environments, it supports routing multiple audio channels together.
- For analog audio signal connections, it is intended to support reliable interconnects.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Elements | 12 |
| Insulation thickness (nom.) | 0.008 in (0.20 mm) |
| Insulation diameter (nom.) | 0.04 in (1.0 mm) |
| Inner shield drainwire | 24 AWG (7x32) TC |
| Outer shield drainwire | 18 AWG (65x36) TC |
| Inner jacket thickness (nom.) | 0.015 in (0.38 mm) |
| Inner jacket diameter (nom.) | 0.113 in (2.87 mm) |
| Inner jacket colors | Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Tan, Pink |
| Outer jacket thickness (nom.) | 0.045 in (1.1 mm) |
| Outer jacket diameter (nom.) | 0.561 in (14.2 mm) |
| Overall cable diameter (nominal) | 0.561 in (14.2 mm) |
| Bulk cable weight | 162 lbs/1000ft |
| Conductor DCR (nom.) | 23.3 Ohm/1000ft |
| Capacitance, Cond-to-Cond (nom.) | 31 pF/ft (100 pF/m) |
| Capacitance, Cond-to-other (conds + Shield) (nom.) | 58 pF/ft (190 pF/m) |
| Inductance (nom.) | 0.18 µH/ft (0.59 µH/m) |
| Max. current | 1.05 Amps per Conductor @ 25°C |
| UL temperature | 75°C |
| Operating | -35°C to +75°C |
| Bend radius (stationary min.) | 5.6 in (140 mm) |
| Bend radius (installation min.) | 5.6 in (140 mm) |
| Max Pull Tension | 220.4 lbs (99.97 kg) |
| Environmental suitability | Indoor (Not Riser or Plenum), Indoor |
| NEC / UL compliance | Article 800, CM |
| CEC / C(UL) compliance | CM |
| Flammability / reaction to fire | UL 1685 FT4 Loading, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Audio Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
