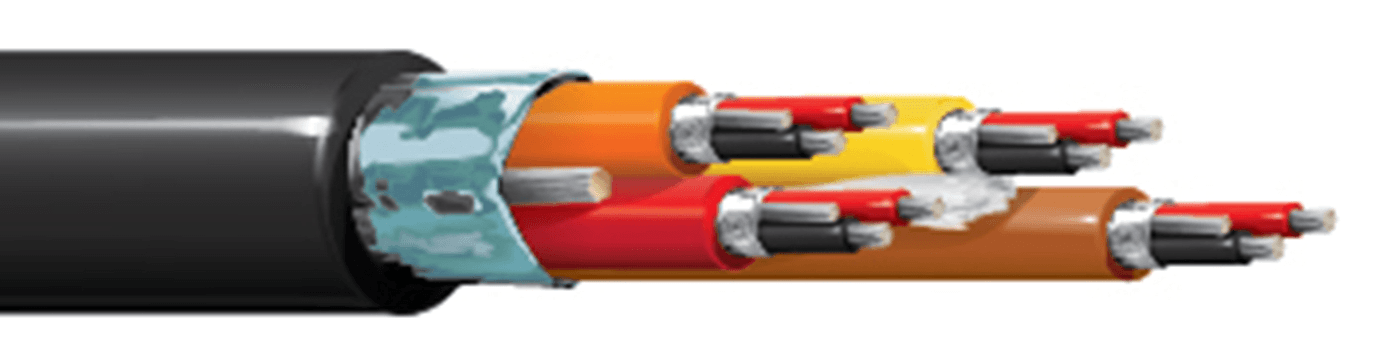

Belden 1514C B59, Multi Conductor Cable 16 Pair 24 AWG PVC
Description
Belden 1514C B59 is a CM-rated audio snake cable designed for multi-channel interconnects between audio equipment such as microphones, speakers, amplifiers, and mixing consoles. It uses 16 tinned copper pairs with 24 AWG stranded (7x32) conductors, polyolefin insulation, and individually shielded Beldfoil® for 100% coverage. Numbered/color-coded PVC jackets are bonded to the shields to strip simultaneously, and an overall Beldfoil® shield with a drain wire helps reduce noise in analog audio runs. Designed for indoor use (not riser or plenum), it supports live events or studio sound applications.
Belden 1514C B59 Key Features
- CM-rated construction supports NEC / UL compliance: CM and CEC / C(UL) compliance: CM.
- 16 pairs with 24 AWG stranded (7x32) TC - tinned copper conductors for multi-channel audio interconnects.
- Individually shielded Beldfoil® with 100% coverage, plus an overall foil shield with a drain wire to help reduce noise in analog audio runs.
- Numbered/color-coded PVC jackets bonded to the shields to strip simultaneously for easier identification and termination.
- Designed for indoor (not riser or plenum) installations.
Belden 1514C B59 Applications
- Supports multi-channel interconnects between audio equipment such as microphones, speakers, amplifiers, and mixing consoles.
- Works for live events or studio sound setups where organized multi-channel audio routing is needed.
- Helps with analog audio runs where noise reduction is important.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 16 |
| Conductor size | 24 AWG (American Wire Gauge) |
| Stranding | 7x32 |
| Conductor Material | TC - Tinned Copper |
| Conductor Type | Stranded Conductor |
| Insulation Material | PO-Polyolefin |
| Material | PP - Polypropylene |
| Nom. insulation diameter | 0.04 in (1.0 mm) |
| Color Code | Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Tan, Pink, Gray/Brown, Gray/Red, Gray/Orange, Gray/Yellow; Red and Black |
| Overall shield | Yes |
| Inner shield type | Tape |
| Inner shield material | Bi-Laminate (Alum+Poly) |
| Inner shield coverage | 100% |
| Outer shield type | Tape |
| Outer shield material | Bi-Laminate (Alum+Poly) |
| Outer shield coverage | 100% |
| Shield Type | Foil Shielded - Alum/Mylar |
| Inner jacket material | PVC - Polyvinyl Chloride |
| Inner jacket nom. diameter | 0.113 in (2.87 mm) |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Outer jacket nom. diameter | 0.628 in |
| Ripcord | Yes |
| Nom. characteristic impedance | 50 Ohm |
| Nom. velocity of prop. | 66% |
| UL Voltage Rating | 300 V RMS |
| Operating temperature | -35°C To +75°C |
| Max Pull Tension | 286.4 lbs (129.9 kg) |
| Bulk cable weight | 225 lbs/1000ft (335 kg/km) |
| Environmental suitability | Indoor (Not Riser or Plenum), Indoor |
| NEC rating | UL Listed Art 800 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Audio Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
