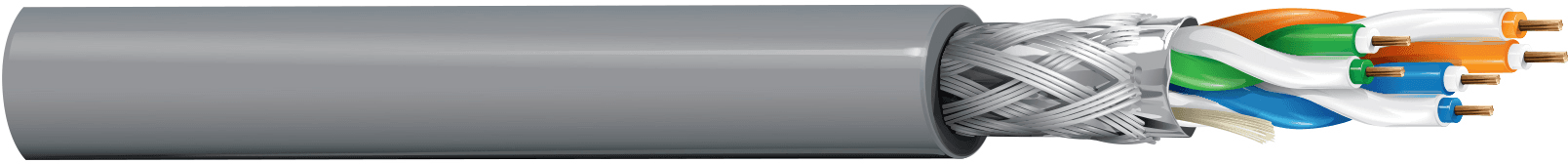

Belden 1538A 008, Multi Conductor 3 Pair 28 AWG SH FR PVC Gray
SKU:Belden 1538A 008
● In stock
Description
Belden 1538A 008 is a 3 pair, 28 AWG data cable with a gray PVC - Polyvinyl Chloride jacket and an SF/UTP - Screened & Foiled/Unshielded Twisted Pair shielding design. It uses 28 AWG stranded (7x36) BC - Bare Copper conductors with PP - Polypropylene insulation, plus an overall Beldfoil® tape shield and a Tinned Copper (TC) braid shield (65% coverage) with a 28 AWG (7x36) TC drainwire. Key electrical characteristics include a UL voltage rating of 300 V and a nom. characteristic impedence of 120 Ohm. It is listed as RJ-45 compatible and noted for IBM Part No. N Cable applications.
Belden 1538A 008 Key Features
- 3 pair, 28 AWG data cable construction for structured twisted-pair signal transmission.
- 28 AWG stranded (7x36) BC - Bare Copper conductors.
- PP - Polypropylene insulation with color code: White & Blue, White & Orange, White & Green.
- SF/UTP - Screened & Foiled/Unshielded Twisted Pair shielding with overall Beldfoil® (100% tape coverage), plus Tinned Copper (TC) braid (65% coverage) and a 28 AWG (7x36) TC drainwire.
- Gray PVC - Polyvinyl Chloride jacket.
- UL voltage rating: 300 V.
- Nom. characteristic impedence: 120 Ohm.
- Other standard compliance(s): IBM Part No. N Cable, RJ-45 compatible.
Belden 1538A 008 Applications
- Suitable for RISC Systems where energy efficiency is key.
- Used for IBM Part No. N Cable applications where RJ-45 compatible connectivity is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Insulation thickness (nom.) | 0.01 in (0.25 mm) |
| Insulation diameter (nom.) | 0.035 in (0.89 mm) |
| Tape shield material | Bi-Laminate (Alum+Poly) |
| Jacket thickness (nom.) | 0.02 in (0.51 mm) |
| Overall cable diameter (nominal) | 0.230 in |
| Nom. diameter | 0.230 in |
| Bulk cable weight | 22 lbs/1000ft |
| Nom. conductor DCR | 70.6 Ohm/1000ft |
| Nom. outer shield DCR | 7.88 Ohm/1000ft (25.9 Ohm/km) |
| Nom. capacitance cond-to-cond | 12 pF/ft (39 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 21.5 pF/ft (70.5 pF/m) |
| Max. current | 0.7 Amps per Conductor at 30ºC |
| High frequency (nominal/typical) 1 MHz | 17 dB/100m |
| High frequency (nominal/typical) 4 MHz | 26 dB/100m |
| High frequency (nominal/typical) 10 MHz | 32 dB/100m |
| Fire rating | Riser |
| UL temperature | 60°C |
| Operating temperature | -20°C to +60°C |
| Bend radius (stationary min.) | 2.30 in (58.4 mm) |
| Bend radius (installation min.) | 2.30 in |
| Max Pull Tension | 33.9 lbs (15.4 kg) |
| Environmental suitability | Indoor, Indoor |
| Flammability / reaction to fire | UL1685 UL Loading |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 725, CL2 |
| European directive compliance | EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 1538A 008, 1538A 008100, 1538A 008250, 1538A 008500, 1538A 0081000 |
| Priced Per | FT |
