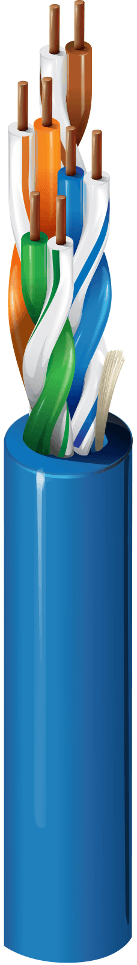

Belden 1585A 002U, Category 5e 4 Pair U UTP CMP Red Box
SKU:Belden 1585A 002U
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 1585A 002U is a Category 5e premise horizontal cable (200MHz) designed for indoor plenum installations. It features 4 pair of 24 AWG solid bare copper conductors in a U/UTP design and supports Ethernet 10BASE-T, Ethernet 100BASE-TX, Ethernet 1000BASE-T, plus PoE, PoE+, and PoE++. The Flamarrest® PVC-LS jacket includes a ripcord to help streamline pulls while meeting plenum fire requirements. It is designed to align with ANSI/TIA-568.2-D Category 5e and ISO/IEC 11801-1.
Belden 1585A 002U Key Features
- Category 5e premise horizontal cable (200MHz) for structured cabling runs.
- 4 pair of 24 AWG solid bare copper conductors in a U/UTP design.
- Flamarrest® PVC-LS jacket with ripcord to help streamline pulls.
- Environmental suitability: plenum, indoor.
- Flammability / reaction to fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2.
- Designed to align with ANSI/TIA-568.2-D Category 5e and ISO/IEC 11801-1.
Belden 1585A 002U Applications
- Use in premise horizontal cable installations where Category 5e performance is required.
- Support Ethernet 10BASE-T links in compatible network environments.
- Enable Ethernet 100BASE-TX connections for common LAN deployments.
- Run Ethernet 1000BASE-T for Gigabit Ethernet network connections.
- Deliver power and data over the same cabling with PoE, PoE+, and PoE++.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 5e |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket Color | Red |
| Overall cable diameter (nominal) | 0.190 in (4.83 mm) |
| Bulk cable weight | 21 lbs/1000ft |
| Non-Plenum number | 1583A |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Nom. velocity of prop. | 72% |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 45 ns/100m |
| UL Voltage Rating | 300 V (CMP) |
| Third party performance verification | Category 5e |
| Max Pull Tension | 25 lbs (11 kg) |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.0 in (51 mm) |
| UL temperature | 75°C |
| Operating | -20°C To +75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-90-661 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3 |
| NEMA Compliance | NEMA WC-63.1 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
