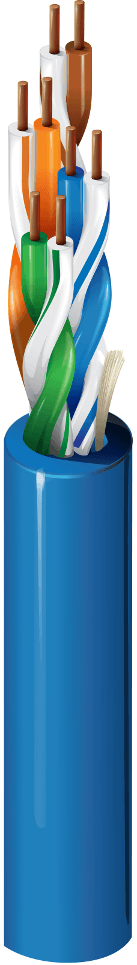

Belden 1585A 003U, Category 5e 4 Pair U/UTP CMP Orange Box
SKU:Belden 1585A 003U
$530.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 1585A 003U is a Category 5e premise horizontal cable (200MHz) designed for indoor plenum installations. It is built with 4 pair of 24 AWG solid bare copper conductors in a U/UTP design and uses a Flamarrest® PVC-LS jacket with ripcord. The orange jacket color supports circuit identification, and the cable is rated plenum-CMP. It supports Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, and PoE++, PoE+, and PoE applications, and meets NFPA 262 and UL 910 (Plenum).
Belden 1585A 003U Key Features
- Category 5e premise horizontal cable (200MHz) for structured cabling runs.
- 4 pair of 24 AWG solid bare copper conductors in a U/UTP design.
- Flamarrest® PVC-LS jacket with ripcord to help streamline pulls and termination.
- Orange jacket color to improve circuit identification.
- Plenum-CMP jacket type for indoor plenum installations.
- Supports Ethernet 1000BASE-T, Ethernet 100BASE-TX, and Ethernet 10BASE-T.
- Supports PoE++, PoE+, and PoE applications.
- Meets NFPA 262 and UL 910 (Plenum).
Belden 1585A 003U Applications
- Use it as a premise horizontal cable for structured cabling pathways within a building.
- Support Ethernet 1000BASE-T network links where Category 5e performance is required.
- Connect Ethernet 100BASE-TX in premise network installations.
- Maintain Ethernet 10BASE-T connectivity for legacy network equipment.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Overall cable diameter (nominal) | 0.190 in (4.83 mm) |
| Bulk cable weight | 21 lbs/1000ft |
| Conductor size | 24 AWG |
| Stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Number of pairs | 4 |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Pair color code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket Material | PVC - Polyvinyl Chloride |
| Material trade name | Flamarrest® |
| Ripcord | Yes |
| Non-Plenum number | 1583A |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| UL Voltage Rating | 300 V (CMP) |
| Max. Delay (100 MHz) | 537.6 ns/100m |
| Max. delay skew (100 MHz) | 45 ns/100m |
| Nom. velocity of prop. (100 MHz) | 72% |
| High frequency performance | 1 MHz: 2.0 dB/100m, 65.3, 62.3, 63.3, 60.3, 63.8, 60.8, 20.0, 100 ± 15, 100 ± 15; 4 MHz: 4.1 dB/100m, 56.3, 53.3, 52.2, 49.2, 51.8, 48.8, 23.0, 100 ± 15, 100 ± 15; 8 MHz: 5.8 dB/100m, 51.8, 48.8, 46.0, 43.0, 45.7, 42.7, 24.5, 100 ± 15, 100 ± 15; 10 MHz: 6.5 dB/100m, 50.3, 47.3, 43.8, 40.8, 43.8, 40.8, 25.0, 100 ± 15, 100 ± 15; 16 MHz: 8.2 dB/100m, 47.2, 44.2, 39.0, 36.0, 39.7, 36.7, 25.0, 100 ± 15, 100 ± 15; 20 MHz: 9.3 dB/100m, 45.8, 42.8, 36.5, 33.5, 37.8, 34.8, 25.0, 100 ± 15, 100 ± 15; 25 MHz: 10.4 dB/100m, 44.3, 41.3, 33.9, 30.9, 35.8, 32.8, 24.3, 100 ± 15, 100 ± 15; 31.25 MHz: 11.7 dB/100m, 42.9, 39.9, 31.2, 28.2, 33.9, 30.9, 23.6, 100 ± 15, 100 ± 15; 62.5 MHz: 17.0 dB/100m, 38.4, 35.4, 21.4, 18.4, 27.9, 24.9, 21.5, 100 ± 15, 100 ± 15; 100 MHz: 22.0 dB/100m, 35.3, 32.3, 13.3, 10.3, 23.8, 20.8, 20.1, 100 ± 15, 100 ± 15; 155 MHz: 28.1 dB/100m, 32.4, 29.4, 4.4, 1.4, 20.0, 17.0, 18.8; 200 MHz: 32.4 dB/100m, 30.8, 27.8, 4.0, 1.0, 17.8, 14.8, 18.0 |
| UL temperature | 75°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.0 in (51 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Environmental suitability | Plenum, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 5e |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3 |
| ICEA compliance | S-90-661 |
| NEMA Compliance | NEMA WC-63.1 |
| Third party performance verification | Category 5e |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Patents | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
