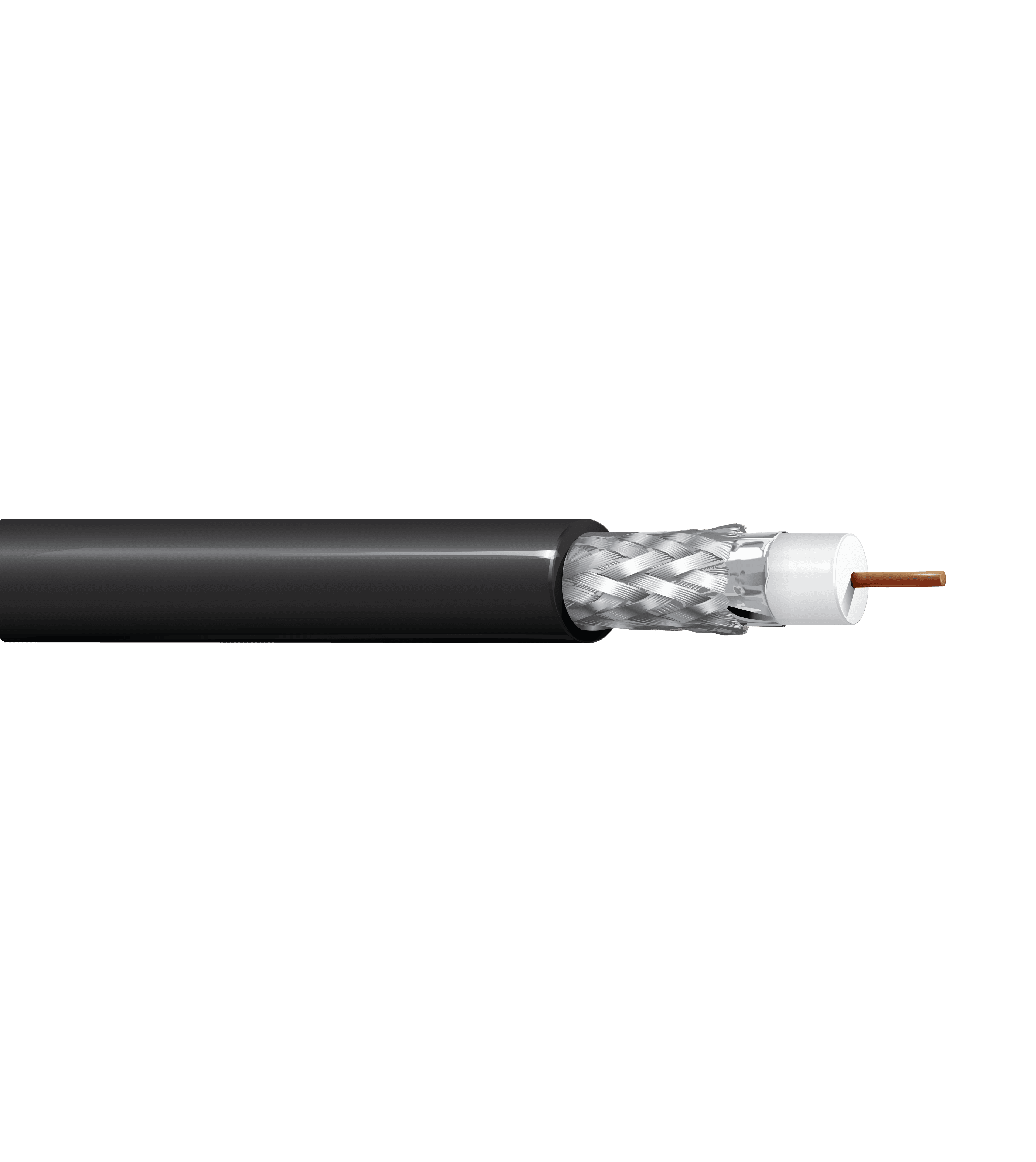

Belden 1694SB 010, Coax Video Cable 18 AWG PE FRNHPO Black
SKU:Belden 1694SB 010
● In stock
Description
Belden 1694SB 010 is a 75 Ohm SDI coax video cable built on an RG-6 design for digital video and HD-SDI 1080p signal performance. It uses an 18 AWG solid BC - Bare Copper conductor with PE - Polyethylene (Foam) insulation and a high-coverage shield system for noise rejection. The LSZH - Low Smoke Zero Halogen (Flame Retardant) jacket is black and supports indoor/outdoor use, sunlight resistance, and aerial - black only installation when supported by messenger Wire. It is CMG-LS rated and Shipboard ABS Type Approved.
Belden 1694SB 010 Key Features
- 75 Ohm coaxial cable built on an RG type: 6 design for SDI coax video connectivity.
- 18 AWG solid BC - Bare Copper conductor for a consistent signal path.
- PE - Polyethylene (Foam) insulation with color code: White.
- Dual-layer shielding with Duofoil® Tri-Laminate (Alum+Poly+Alum) tape at 100% coverage plus a Tinned Copper (TC) braid at 95% coverage.
- LSZH - Low Smoke Zero Halogen (Flame Retardant) jacket with jacket color: Black.
- Environmental suitability: Indoor/Outdoor, Indoor, Sunlight Resistance, Aerial - Black only, When supported by messenger Wire.
- NEC / UL compliance: CMG-LS; CEC / C(UL) compliance: CMG-ST1.
- Shipboard ABS Type Approved for shipboard requirements.
Belden 1694SB 010 Applications
- Use it for digital video signal distribution where a 75 Ohm coax video cable is required.
- Choose it for HD-SDI 1080p signal performance in video connectivity runs.
- Specify it for marine shipboard and offshore use where Shipboard ABS Type Approved cable is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Coax construction | Coaxial |
| Overall cable diameter (nominal) | 0.274 in (6.96 mm) |
| Conductor nominal diameter | 0.040 in |
| Nom. insulation diameter | 0.180 in (4.57 mm) |
| Jacket nominal diameter | 0.274 in (6.96 mm) |
| Nom. conductor DCR | 6.4 Ohm/1000ft |
| Nom. outer shield DCR | 2.8 Ohm/1000ft (9.2 Ohm/km) |
| Nom. capacitance (Cond-to-Shield) | 16.2 pF/ft (53.1 pF/m) |
| Nom. velocity of prop. | 82% |
| UL Voltage Rating | 300 V (CMG) |
| Return loss (5 - 1600 MHz) | 23 dB min. return loss |
| Return loss (1600 - 4500 MHz) | 21 dB min. return loss |
| Attenuation (Nom.) 1 MHz | 0.24 dB/100ft |
| Attenuation (Nom.) 3.58 MHz | 0.44 dB/100ft |
| Attenuation (Nom.) 5 MHz | 0.52 dB/100ft |
| Attenuation (Nom.) 7 MHz | 0.61 dB/100ft |
| Attenuation (Nom.) 10 MHz | 0.71 dB/100ft |
| Attenuation (Nom.) 67.5 MHz | 1.65 dB/100ft |
| Attenuation (Nom.) 71.5 MHz | 1.69 dB/100ft |
| Attenuation (Nom.) 88.5 MHz | 1.86 dB/100ft |
| Attenuation (Nom.) 100 MHz | 1.95 dB/100ft |
| Attenuation (Nom.) 135 MHz | 2.24 dB/100ft |
| Attenuation (Nom.) 143 MHz | 2.3 dB/100ft |
| Attenuation (Nom.) 180 MHz | 2.57 dB/100ft |
| Attenuation (Nom.) 270 MHz | 3.17 dB/100ft |
| Attenuation (Nom.) 360 MHz | 3.69 dB/100ft |
| Attenuation (Nom.) 540 MHz | 4.6 dB/100ft |
| Attenuation (Nom.) 720 MHz | 5.38 dB/100ft |
| Attenuation (Nom.) 750 MHz | 5.5 dB/100ft |
| Attenuation (Nom.) 1000 MHz | 6.42 dB/100ft |
| Attenuation (Nom.) 1500 MHz | 7.99 dB/100ft |
| Attenuation (Nom.) 2000 MHz | 9.37 dB/100ft |
| Attenuation (Nom.) 2250 MHz | 10.01 dB/100ft |
| Attenuation (Nom.) 3000 MHz | 11.78 dB/100ft |
| Attenuation (Nom.) 4500 MHz | 14.92 dB/100ft |
| Operating temperature | -30°C to +75°C |
| UL temperature | 75°C |
| Installation min. bend radius | 2.75 in (69.9 mm) |
| Max Pull Tension | 69 lbs (31 kg) |
| Bulk cable weight | 42 lbs/1000ft |
| Flammability / reaction to fire | UL1685 FT4 Loading, Limited Smoke, 1202, IEC 60332-1-2, IEC 60332-3-22, IEC 60332-3-22 |
| CPR Euroclass | Dca-s1,d1,a1 |
| IEEE compliance | Std. 45 clause 23 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Item Type | Belden Coaxial Cable |
| Other Part Numbers | 1694SB 010, 1694SB 010100, 1694SB 010250, 1694SB 010500, 1694SB 0101000 |
| Priced Per | FT |
