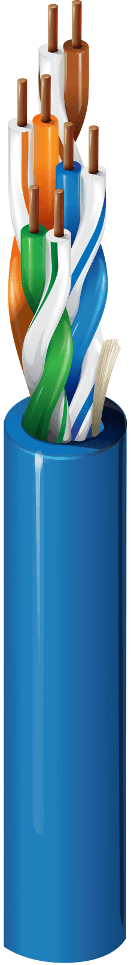

Belden 1701A 009U, Enhanced Cat5E 4 Pair U/UTP CMP White Box
SKU:Belden 1701A 009U
$690.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 1701A 009U is a Category 5E+ premise horizontal cable (350MHz) for Ethernet networks and power delivery over copper. It features 4 bonded pairs of 24 AWG solid bare copper conductors in a U/UTP design with FEP insulation. This plenum-rated CMP cable uses a Flamarrest® PVC-LS jacket and includes a ripcord for easier jacket access during installation.
Belden 1701A 009U Key Features
- Category 5E+ premise horizontal cable (350MHz) for structured cabling runs.
- 4 bonded pairs with 24 AWG solid bare copper conductors for consistent pair geometry.
- U/UTP construction with FEP insulation.
- Plenum CMP fire rating with environmental suitability listed as plenum, indoor.
- Flamarrest® PVC-LS jacket in white with a ripcord.
Belden 1701A 009U Applications
- Intended for premise horizontal cable installations.
- Supports Ethernet 1000BASE-T network links.
- Enables Ethernet 100BASE-TX network links.
- Works with Ethernet 10BASE-T network links.
- Suitable for PoE++, PoE+, and PoE power delivery over copper.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 5e |
| Number of pairs | 4 |
| Bonded-pair | Yes |
| Conductor size | 24 AWG |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket trade name | Flamarrest® |
| Jacket Color | White |
| Ripcord | Yes |
| Overall cable diameter (nominal) | 0.195 in (4.95 mm) |
| Bulk cable weight | 22 lbs/1000ft |
| Max. Conductor DCR | 90 Ohm/km (27 Ohm/1000ft) |
| Max. capacitance unbalance | 66 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 25 ns/100m |
| Nom. velocity of prop. | 72% |
| UL Voltage Rating | 300 V (CMP) |
| UL temperature | 75°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 0.5 in (13 mm) |
| Bend radius (installation min.) | 2.0 in (51 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-90-661 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 5e |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3 |
| NEMA Compliance | NEMA WC-63.1 |
| CENELEC compliance | Segregation class according EN50174-2 = a |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Third party performance verification | Category 5e |
| Non-Plenum number | 1700A |
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
