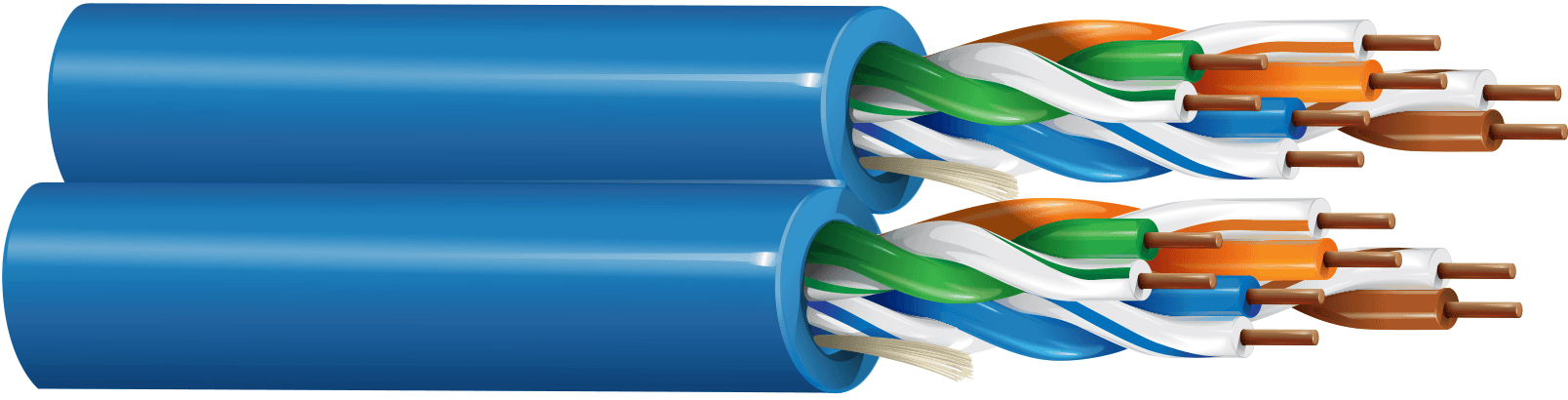

Belden 1703A 877 CAT5e+ 350MHz 8 Pr 24 AWG CMP
Description
Belden 1703A 877 is a CAT5e+ (350MHz) cable with 8 bonded-pairs of 24 AWG solid bare copper conductors. It features FEP Teflon® insulation and a Ripcord PVC Flamarrest® jacket. This U/UTP-unshielded cable is Plenum-CMP rated.
Applications
- Use in low-voltage power cable installations that require CAT5e+ (350MHz) performance.
- Specify for plenum environments that require a Plenum-CMP rated cable.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 8 Pairs |
| Conductor Gauge Size | 24 AWG |
| Conductor Type | Solid Bare Copper |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Shield (Y N) | No |
| Approvals | CMP |
| Item Type | Belden Network Cable Cat5E Plenum |
| Weight /LBS per 1000FT | 50 |
| Other Part Numbers | 1703A 877, 1703A 877100, 1703A 877250, 1703A 877500, 1703A 8771000 |
| Cat Type | CAT5e+ |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
