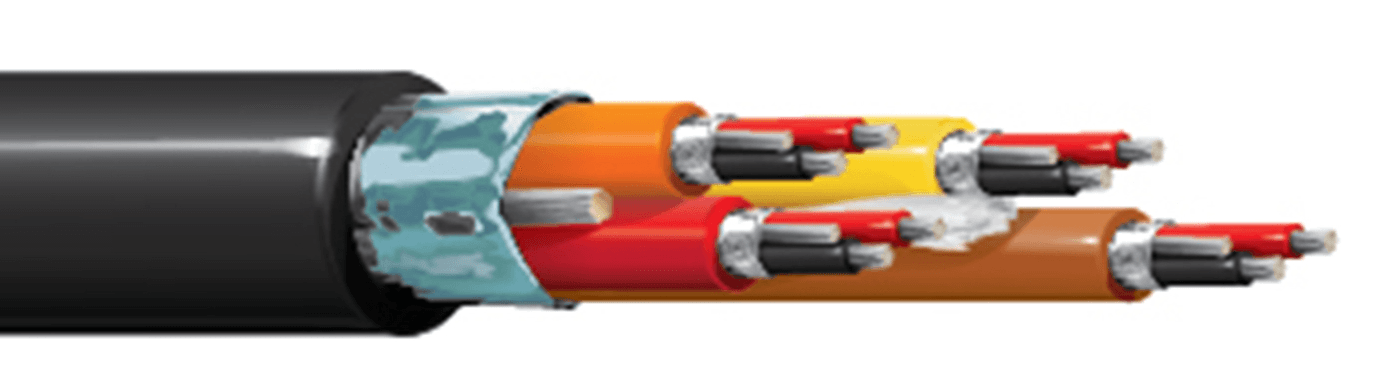

Belden 1817P 010 Audio Cable 8 Prs 22 AWG Shielded CMP
Description
Belden 1817P 010 audio snake cable features 8 pairs of 22 AWG stranded (7 x 30) tinned copper conductors with FEP insulation. It has individually foil-shielded pairs, an overall PVDF jacket, and a ripcord. This CMP-rated cable has a black PVDF jacket.
Applications
- Use in audio snake cable setups where multiple paired connections are needed in a single run.
- Choose for installations that benefit from individually foil-shielded pairs to help manage signal separation across multiple audio channels.
- Install in CMP-rated environments where a CMP-rated audio cable is required.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 8 Pairs |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Stranded Tinned Copper |
| Insulation Material | FEP |
| Shield Type | Individual Foil Shield & Drain Wire |
| Jacket Material | Inner and Outer PVDF |
| Approvals | CMP |
| Item Type | Belden Audio Cable |
| Weight /LBS per 1000FT | 98 |
| Other Part Numbers | 1817P 010, 1817P 010100, 1817P 010250, 1817P 010500, 1817P 0101000 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
