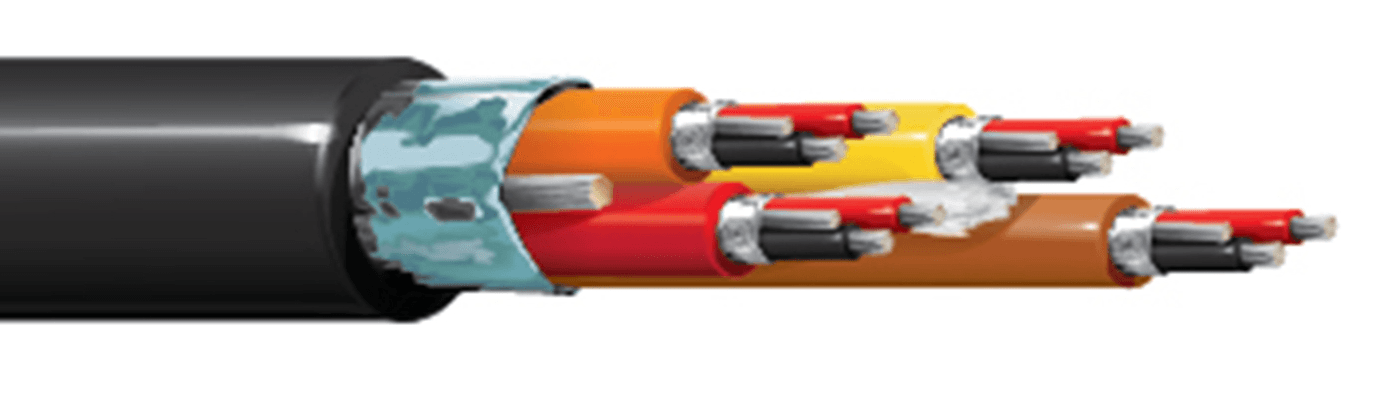

Belden 1818WB 010 Audio Cable 12 Prs 22 AWG TC Shielded Black
Description
Belden 1818WB 010 audio cable is an analog audio snake cable with 12 pairs of 22 AWG (7 x 30) TC conductors. It features polypropylene insulation, individually foil shielded pairs, an overall Beldfoil® shield with drain wire, waterblocking tape, and an overall PE jacket.
Applications
- Use in analog audio snake installations where multiple audio pairs are run together in a single cable.
- Enable organized multi-channel audio routing in setups that benefit from individually foil shielded pairs and an overall shield.
- Choose for installations where waterblocking tape is required as part of the cable construction.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 12 Pairs |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Stranded Tinned Copper |
| Insulation Material | PP - Polypropylene |
| Shield Type | Individual and Overall Foil Shield with Drain wire |
| Jacket Material | Inner PVC, Outer HDPE |
| Item Type | Belden Audio Cable |
| Weight /LBS per 1000FT | 225 |
| Other Part Numbers | 1818WB 010, 1818WB 010100, 1818WB 010250, 1818WB 010500, 1818WB 0101000 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
