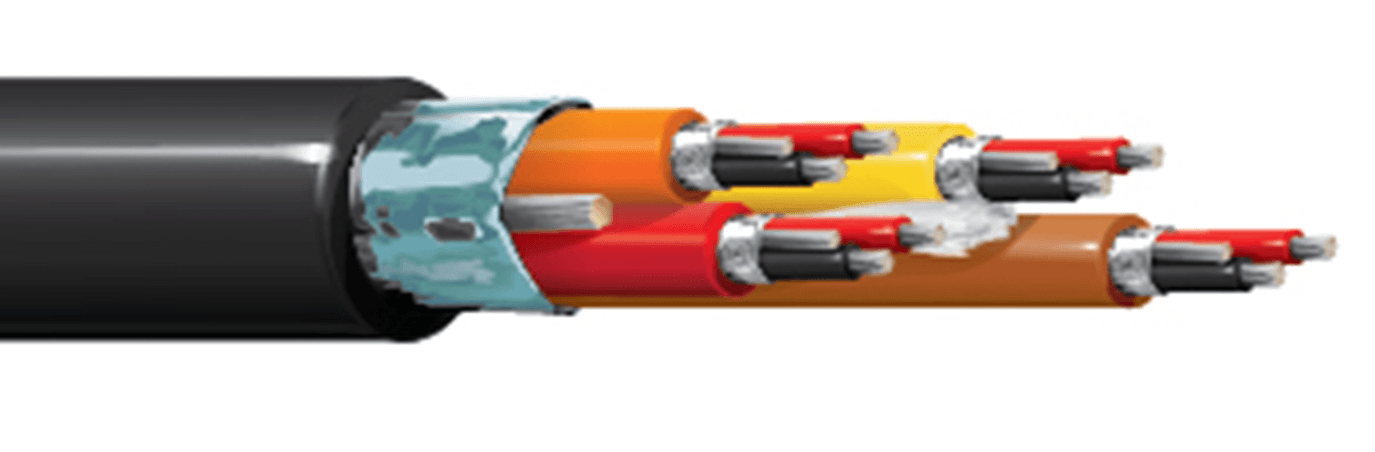

Belden 1819R 010, Multi Conductor CMR 16C 22 AWG PVC
SKU:Belden 1819R 010
● In stock
Description
Belden 1819R 010 is a 16 pair audio snake cable for multi-channel analog audio interconnects between microphones, speakers, amplifiers, and mixing consoles in live events or studio environments. It uses 22 AWG (7x30) TC - Tinned Copper conductors with PP - Polypropylene insulation and individually foil-shielded pairs for noise rejection. The design includes an overall Beldfoil® Shield and a PVC - Polyvinyl Chloride outer jacket with ripcord for efficient installation. It is rated 300 V (CMR) and UL1666 Riser for indoor riser applications.
Belden 1819R 010 Key Features
- The 16 pair construction supports multi-channel analog audio interconnects in a single run.
- 22 AWG (7x30) TC - Tinned Copper conductors support consistent signal connections across channels.
- PP - Polypropylene insulation with a Black, Red color code supports pair identification.
- Individually foil-shielded pairs provide 100% Tape, Bi-Laminate (Alum+Poly) coverage and include a 22 AWG (7x30) TC drainwire; individual pair tapes are adhered to their inner jackets for easy stripping.
- An overall Beldfoil® Shield provides 100% Tape, Bi-Laminate (Alum+Poly) outer shield coverage and includes an 18 AWG (19x30) TC drainwire.
- A PVC - Polyvinyl Chloride outer jacket with ripcord and Black jacket color supports clean pulls and efficient installation.
- 300 V (CMR) UL voltage rating and UL1666 Riser flammability rating support indoor riser use.
Belden 1819R 010 Applications
- Use it for multi-channel analog audio interconnects between microphones, speakers, amplifiers, and mixing consoles.
- Route multiple audio channels together in live events or studio environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 16 |
| Element | pair(s) |
| Insulation nominal thickness | 0.010 in (0.25 mm) |
| Insulation nominal diameter | 0.05 in (1.3 mm) |
| Inner jacket (pair(s)) material | PVC - Polyvinyl Chloride |
| Inner jacket nominal thickness | 0.015 in (0.38 mm) |
| Inner Jacket Nominal Diameter | 0.133 in (3.38 mm) |
| Outer jacket nominal thickness | 0.074 in (1.9 mm) |
| Outer jacket nominal diameter | 0.776 in (19.7 mm) |
| Overall cable diameter (nominal) | 0.776 in (19.7 mm) |
| Bulk cable weight | 339 lbs/1000ft (504 kg/km) |
| Nom. conductor DCR | 14.8 Ohm/1000ft (48.6 Ohm/km) |
| Nom. capacitance cond-to-cond | 31 pF/ft (100 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 56 pF/ft (180 pF/m) |
| Nom. characteristic impedence | 50 Ohm |
| Nom. inductance | 0.18 μH/ft (0.59 μH/m) |
| Nom. velocity of prop. | 66% |
| Max. current | 1.45 Amps per Conductor @ 25°C |
| Nom. outer shield DCR | 11.8 Ohm/1000ft (38.7 Ohm/km) |
| UL temperature | 60°C |
| Operating temperature | -20°C to +60°C |
| Bend radius (stationary min.) | 7.8 in (200 mm) |
| Bend radius (installation min.) | 7.8 in (200 mm) |
| Max Pull Tension | 462 lbs (210 kg) |
| Environmental suitability | Indoor - Riser, Indoor |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMR |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Audio Cable |
| Other Part Numbers | 1819R 010, 1819R 010100, 1819R 010250, 1819R 010500, 1819R 0101000 |
| Priced Per | FT |
