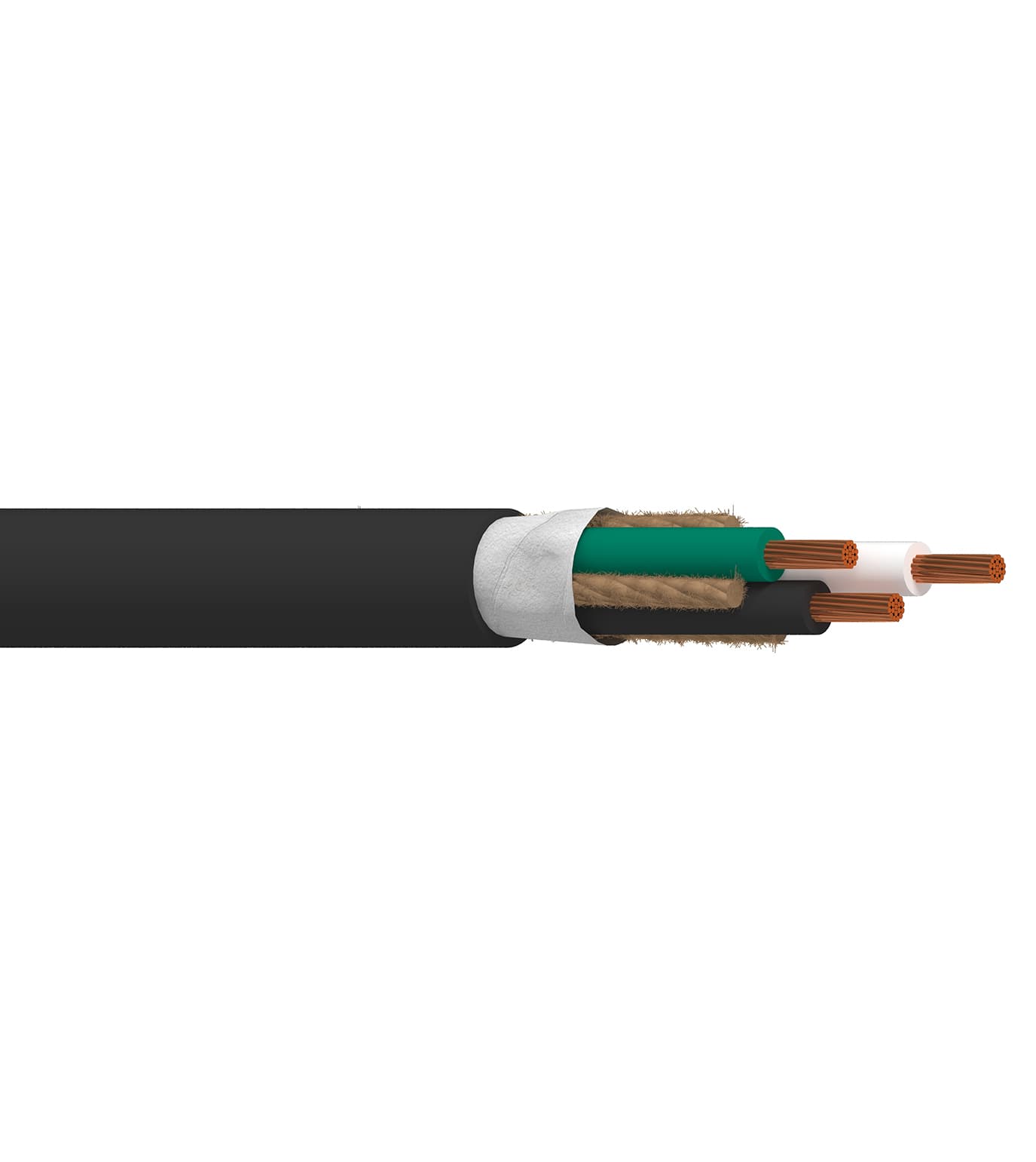

Belden 19105 010, Portable Cordage Type S 3C 10 AWG EPDM Rubber, Black Jacket
SKU:Belden 19105 010
● In stock
Description
Belden 19105 010 is a portable cordage (UL Type S) designed for rugged power applications where flexibility and durability matter. It features 3 stranded 10 AWG BC - Bare Copper conductors, EPDM - Ethylene Propylene Diene Monomer insulation, and an SBR - Styrene Butadiene Rubber outer jacket. This cordage is rated 600 V and 60°C, with a max. current of 28 Amps per Conductor at 25ºC (25 Amps over 50 ft). The color code Black, White, Green supports straightforward conductor identification during installation and termination.
Belden 19105 010 Applications
- Supports rugged power applications where flexibility and durability matter.
- Works in outdoor environments where portable cordage is needed for typical portable power runs.
- Simplifies installation and termination by using color-coded conductors for identification.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | Cordage |
| Cable type | Portable cordage |
| UL type | S |
| Number of Conductors | 3 |
| Conductor size | 10 AWG |
| Conductor stranding | 105x30 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | EPDM - Ethylene Propylene Diene Monomer |
| Color Code | Black, White, Green |
| Separator | Paper Tape |
| Outer jacket material | SBR - Styrene Butadiene Rubber |
| Jacket Color | Black |
| Shielding | Unshielded |
| Nom. thickness (insulation) | 0.05 in (1.3 mm) |
| Nom. insulation diameter | 0.224 in (5.69 mm) |
| Nom. thickness (outer jacket) | 0.099 in (2.5 mm) |
| Nom. diameter | 0.681 in |
| Bulk cable weight | 288 lbs/1000ft |
| UL Voltage Rating | 600 V |
| Nom. conductor DCR | 1.09 Ohm/1000ft |
| Max. current | 28 Amps per Conductor at 25ºC (25 Amps over 50 ft) |
| UL temperature | 60°C |
| Max Pull Tension | 409.5 lbs (185.7 kg) |
| Environmental suitability | Outdoor |
| NEC / UL compliance | Article 400, S |
| AWM compliance | S |
| Standards | UL/CSA |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| RoHS Compliant | Yes |
| Other Part Numbers | 19105 010, 19105 010100, 19105 010250, 19105 010500, 19105 0101000, UPC 612825126478 |
| Priced Per | FT |
