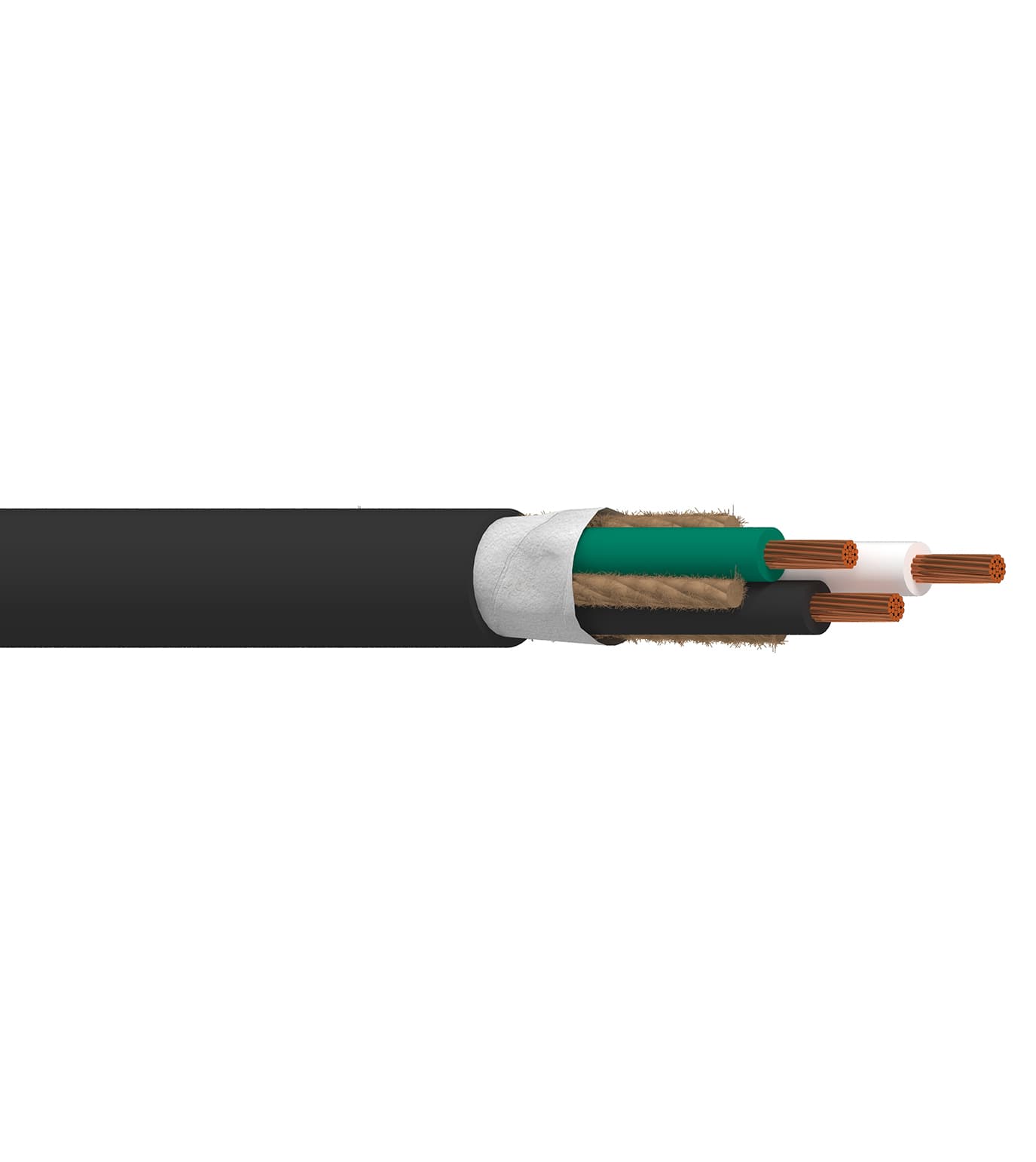

Belden 19106 010, Portable Cordage Type S 3C 12 AWG EPDM Rubber, Black Jacket
Description
Belden 19106 010 is a Type S portable cordage designed to supply power to appliances and tools in demanding environments. It features 3 stranded 12 AWG (65x30) BC - Bare Copper conductors with EPDM - Ethylene Propylene Diene Monomer insulation and a black rubber outer jacket. This unshielded cordage is rated for 600 V (Type S) service, UL/CSA listed, and rated to 60°C. A paper tape separator is included for a smooth overall jacket finish.
Belden 19106 010 Applications
- Use it as portable cordage to supply power to appliances and tools in demanding environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | Cordage |
| Cable type | Type S |
| Number of Conductors | 3 |
| Conductor size | 12 AWG |
| Stranding | 65x30 |
| Conductor Material | BC - Bare Copper |
| Conductor Type | Stranded |
| Conductor notes | 3.31mm2 |
| Insulation Material | EPDM - Ethylene Propylene Diene Monomer |
| Nominal insulation thickness | 0.052 in (1.3 mm) |
| Color Code | Black, White, Green |
| Outer jacket material | Rubber |
| Jacket Color | Black |
| Separator | Paper Tape |
| Separator material | SBR - Styrene Butadiene Rubber |
| Nominal jacket thickness | 0.099 in (2.5 mm) |
| Overall cable diameter (nominal) | 0.640 in (16.3 mm) |
| Bulk cable weight | 227 lbs/1000ft (338 kg/km) |
| UL Voltage Rating | 600 V (Type S) |
| Max. current | 25 Amps per Conductor @ 25°C; 18 Amps per Conductor @ 25 °C over 50 ft. |
| Shield | Unshielded |
| Earth/ground wires | No |
| UL temperature | 60°C |
| Minimum bend radius (stationary) | 6.4 in (160 mm) |
| Minimum bend radius (installation) | 6.4 in (160 mm) |
| Standards | UL/CSA |
| NEC / UL compliance | S |
| AWM compliance | S |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| RoHS Compliant | Yes |
| Other Part Numbers | 19106 010, 19106 010100, 19106 010250, 19106 010500, 19106 0101000 |
| Priced Per | FT |
