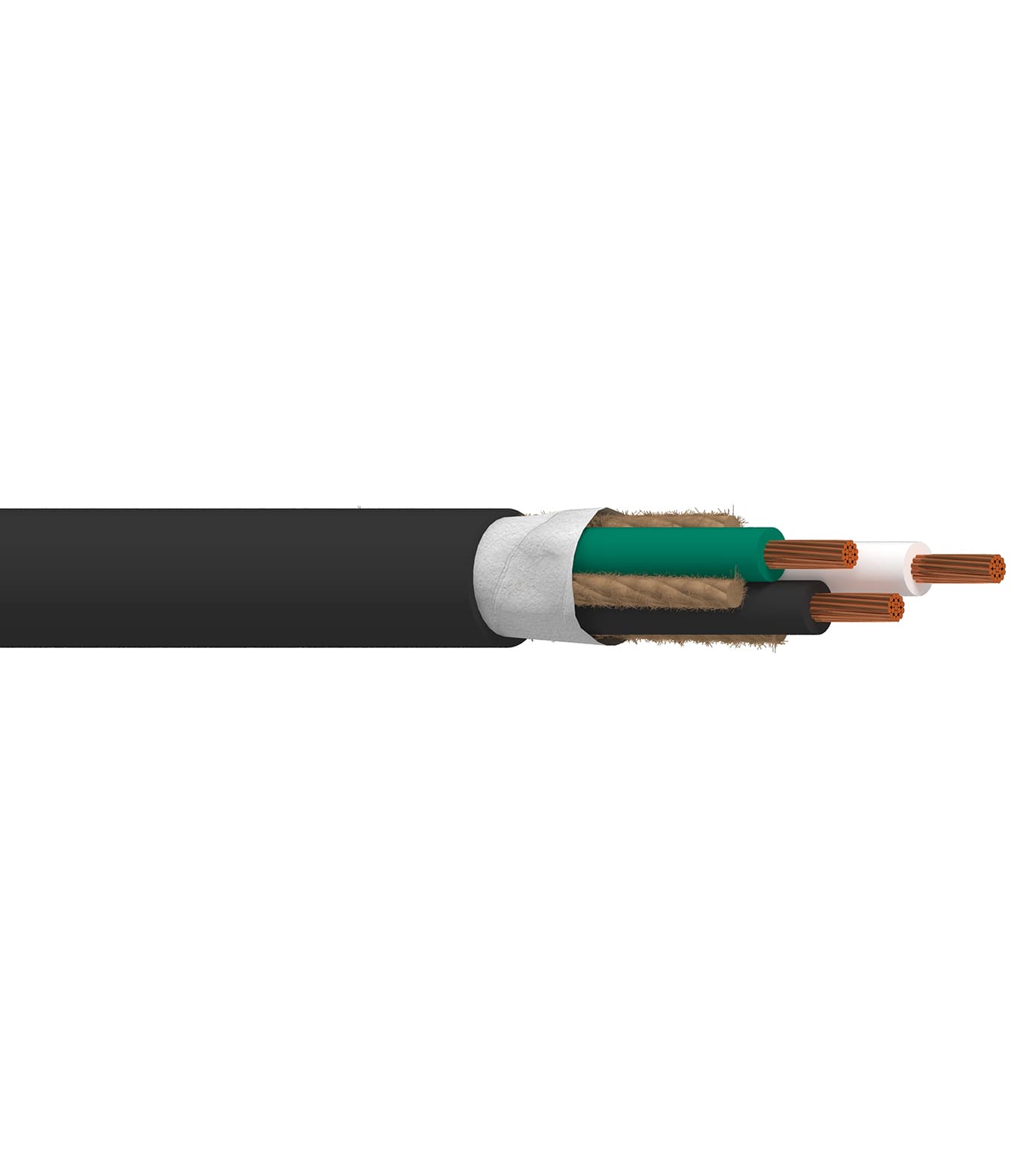

Belden 19109 010, Portable Cordage Type S 3C 18 AWG EPDM Rubber, Black Jacket
SKU:Belden 19109 010
● In stock
Description
Belden 19109 010 is a portable cordage UL Type S designed for indoor and outdoor power applications. It features 3 stranded 18 AWG conductors using BC - Bare Copper with EPDM - Ethylene Propylene Diene Monomer insulation and a rubber outer jacket. This unshielded cord is rated 600 V and supports 10 Amps per Conductor at 25ºC (7 Amps over 50 ft). A cotton serve separator and smooth jacket construction help support flexibility in demanding environments.
Belden 19109 010 Applications
- Use it for portable power connections in indoor environments where a flexible cord is needed.
- Choose it for outdoor power applications where the cord is exposed to outdoor conditions.
- It fits installations that benefit from a smooth jacket construction and a cotton serve separator to help maintain flexibility in demanding environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | Cordage |
| Cord type | UL Type S |
| Number of Conductors | 3 |
| Conductor size | 18 AWG |
| Stranding | 42x34 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | EPDM - Ethylene Propylene Diene Monomer |
| Separator | Cotton Serve |
| Separator material | SBR - Styrene Butadiene Rubber |
| Shield | No Shield |
| Jacket Material | RBR-RUBBER |
| Insulation thickness (nom.) | 0.032 in (0.81 mm) |
| Insulation diameter (nom.) | 0.110 in mm |
| Jacket thickness (nom.) | 0.065 in (1.7 mm) |
| Overall cable diameter (nominal) | 0.38 in |
| Color Code | Black, White, Green |
| Jacket Color | Black |
| UL Voltage Rating | 600 V |
| Nom. conductor DCR | 6.65 Ohm/1000ft |
| Max. current | 10 Amps per Conductor at 25ºC (7 Amps over 50 ft) |
| UL temperature | 60°C |
| Operating | -20°C To +60°C |
| Bend radius (stationary min.) | 3.28 in (83.3 mm) |
| Bend radius (installation min.) | 3.28 in |
| Max Pull Tension | 61.5 lbs (27.9 kg) |
| Bulk cable weight | 75 lbs/1000ft |
| Environmental suitability | Indoor, Outdoor |
| Flammability / reaction to fire | FT2 |
| NEC / UL compliance | Article 400, S |
| Standards | UL/CSA |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other Part Numbers | 19109 010, 19109 010100, 19109 010250, 19109 010500, 19109 0101000, UPC 612825126515 |
| Priced Per | FT |
