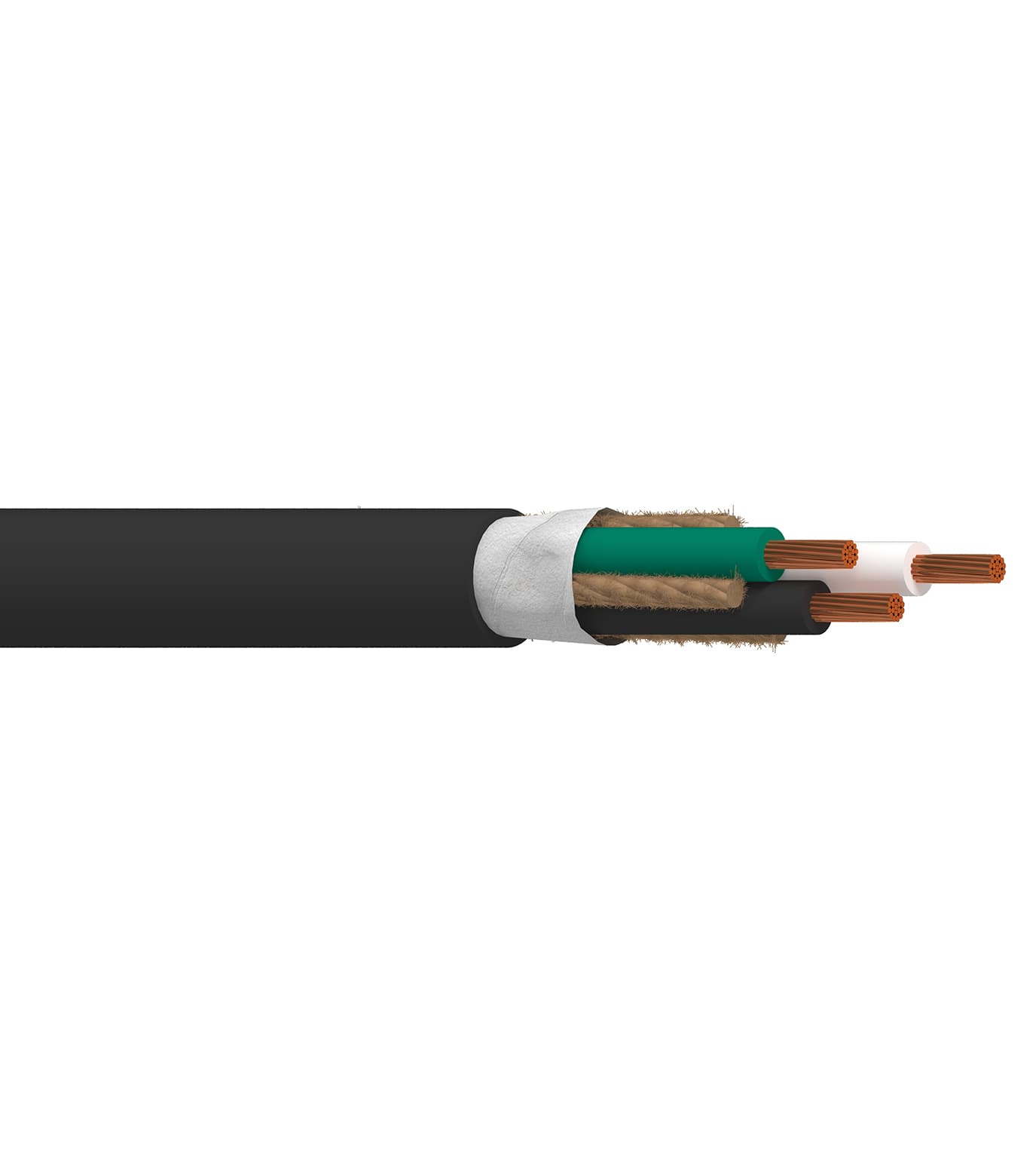

Belden 19124 010, Portable Cordage SJ 3C 16 AWG EPDM Rubber Jacket, Black Jacket
SKU:Belden 19124 010
● In stock
Description
Belden 19124 010 is a portable cordage built as UL Type SJ for flexible power and equipment connections in demanding environments. It features 3 Stranded 16 AWG BC - Bare Copper conductors with EPDM - Ethylene Propylene Diene Monomer insulation and an SBR - Styrene Butadiene Rubber outer jacket in Black. This cordage is Unshielded, rated 300 V and 60°C, and includes a Paper Tape separator. It is suitable for Outdoor use with Sunlight Resistance.
Belden 19124 010 Applications
- Use it for flexible power and equipment connections where portable cordage is needed in demanding environments.
- Install it outdoors where Sunlight Resistance is required.
- For typical portable power applications, manage current limits by run length, including 13 Amps per Conductor at 25ºC (10 Amps over 50 ft).
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | Cordage |
| UL type | SJ |
| Number of Conductors | 3 |
| Conductor size | 16 AWG |
| Conductor stranding | 65x34 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | EPDM - Ethylene Propylene Diene Monomer |
| Color Code | Black, White, Green |
| Separator | Paper Tape |
| Outer jacket material | SBR - Styrene Butadiene Rubber |
| Jacket Color | Black |
| Shielding | Unshielded |
| Insulation nominal thickness | 0.0325 in (0.826 mm) |
| Insulation nominal diameter | 0.123 in (3.12 mm) |
| Jacket nominal thickness | 0.0375 in (0.953 mm) |
| Cable nominal diameter | 0.34 in |
| Bulk cable weight | 66 lbs/1000ft |
| UL Voltage Rating | 300 V |
| Nom. conductor DCR | 4.4 Ohm/1000ft |
| Max. current | 13 Amps per Conductor at 25ºC (10 Amps over 50 ft) |
| UL temperature | 60°C |
| Max Pull Tension | 105.3 lbs (47.76 kg) |
| Environmental suitability | Outdoor, Sunlight Resistance |
| NEC / UL compliance | Article 400, SJ |
| AWM compliance | SJ |
| Standards | UL/CSA |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other Part Numbers | 19124 010, 19124 010100, 19124 010250, 19124 010500, 19124 0101000, UPC 612825126645 |
| Priced Per | FT |
