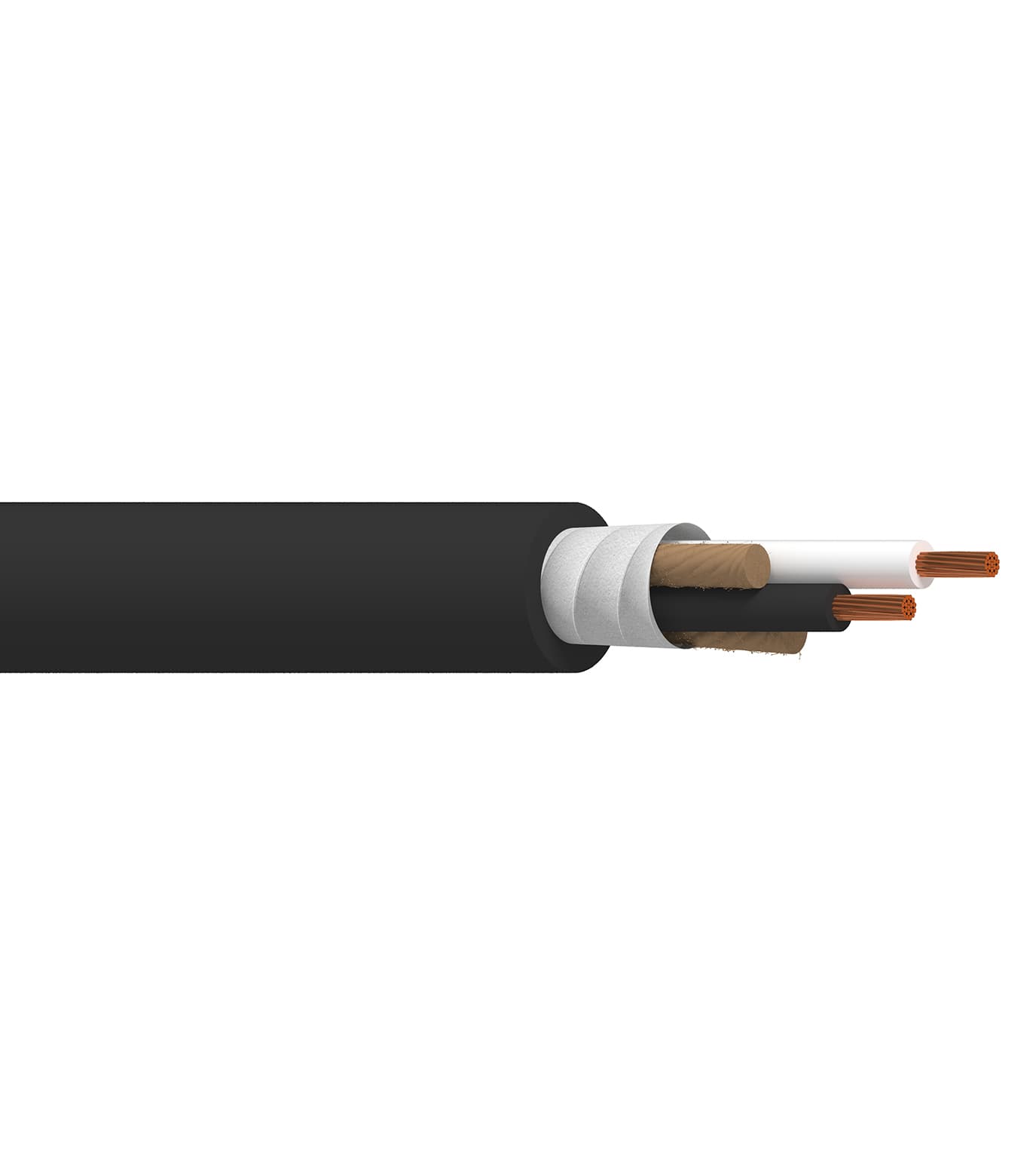

Belden 19140 010, Portable Cordage SVT 2C 18 AWG PVC, Black Jacket
SKU:Belden 19140 010
● In stock
Description
Belden 19140 010 is UL Type SVT portable cordage for flexible power and general-purpose cord applications. It features 2 conductors of 18 AWG (42x34) BC - Bare Copper with PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket in black. Electrical ratings include a 300 V UL voltage rating and a 60°C UL temperature rating, with a nominal conductor DCR of 6.97 Ohm/1000ft. Construction includes a paper tape separator and oil resistance.
Belden 19140 010 Applications
- Use in flexible power and general-purpose cord applications that require UL Type SVT portable cordage.
- Choose for installations where oil resistance is required for environmental suitability.
- Specify for projects that require compliance with Article 400 and SVT listings, including UL/CSA and EU CE Mark requirements.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | Cordage |
| UL type | SVT |
| Number of Conductors | 2 |
| Conductor size | 18 AWG |
| Conductor stranding | 42x34 |
| Conductor Material | BC - Bare Copper |
| Conductor Type | Stranded |
| Ground wires | No |
| Shielding | Unshielded |
| Separator | Paper Tape |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation nom. thickness | 0.018 in (0.46 mm) |
| Nom. insulation diameter | 0.084 in (2.1 mm) |
| Color Code | Black, White |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Color | Black |
| Jacket nom. thickness | 0.036 in (0.91 mm) |
| UL Voltage Rating | 300 V |
| Nom. conductor DCR | 6.97 Ohm/1000ft |
| Max. current | 10 Amps per Conductor at 25ºC (7 Amps over 50 ft) |
| Max. current (over 50 ft) | 7 Amps per Conductor at 25ºC (over 50 ft) |
| UL temperature | 60°C |
| Nom. diameter | 0.243 in |
| Max Pull Tension | 42.6 lbs (19.3 kg) |
| Bulk cable weight | 32 lbs/1000ft |
| Environmental suitability | Oil Resistance |
| NEC / UL compliance | Article 400, SVT |
| AWM compliance | SVT |
| Standards | UL/CSA |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| RoHS Compliant | Yes |
| Other Part Numbers | 19140 010, 19140 010100, 19140 010250, 19140 010500, 19140 0101000, UPC 612825126706 |
| Priced Per | FT |
