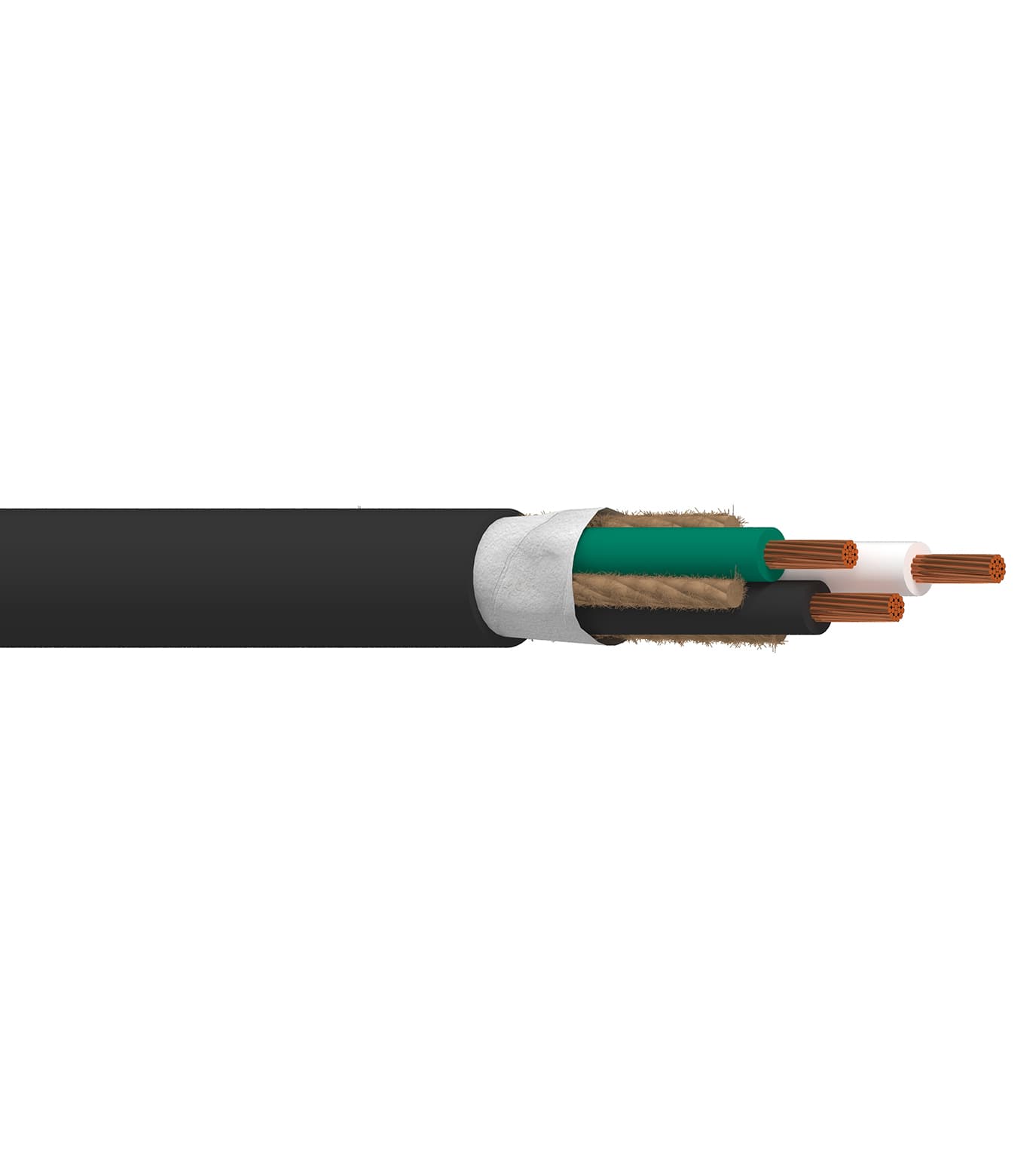

Belden 19206 010, Portable Cordage Type SO 3C 12 AWG EPDM Rubber, Black Jacket
Description
Belden 19206 010 is a cordage product rated UL Type SO with 3 conductors of 12 AWG (65x30) BC - Bare Copper. It features EPDM - Ethylene Propylene Diene Monomer insulation and a CPE - Chlorinated Polyethylene (Thermoset) outer jacket in Black. This portable cordage supports 600 V, has a UL temperature rating of 90°C, and is listed with Environmental suitability: Oil Resistance.
Belden 19206 010 Applications
- Designed for portable cordage uses where a flexible cord is needed for power applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | Cordage |
| Number of Conductors | 3 |
| Conductor size | 12 AWG |
| Conductor stranding | 65x30 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | EPDM - Ethylene Propylene Diene Monomer |
| Separator | Paper Tape |
| Outer jacket material | CPE - Chlorinated Polyethylene (Thermoset) |
| Shielding | Unshielded |
| Nom. thickness (insulation) | 0.051 in (1.3 mm) |
| Nom. insulation diameter | 0.020 in (0.51 mm) |
| Color Code | Black, White, Green |
| Nom. thickness (outer jacket) | 0.1 in (2.5 mm) |
| Nom. diameter | 0.632 in (16.1 mm) |
| Jacket Color | Black |
| UL Voltage Rating | 600 V |
| Nom. conductor DCR | 1.7 Ohm/1000ft |
| Max. current | 21 Amps per Conductor at 25ºC (18 Amps over 50 ft); 18 Amps per Conductor at 25ºC (over 50 ft) |
| UL temperature | 90°C |
| Bend radius (stationary min.) | 6.32 in (161 mm) |
| Bend radius (installation min.) | 6.32 in (161 mm) |
| Max Pull Tension | 249.6 lbs (113.2 kg) |
| Bulk cable weight | 231 lbs/1000ft |
| NEC / UL compliance | Article 400, SO |
| UL type | SO |
| AWM compliance | SO |
| Standards | UL/CSA |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| RoHS Compliant | Yes |
| Environmental suitability | Oil Resistance |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
