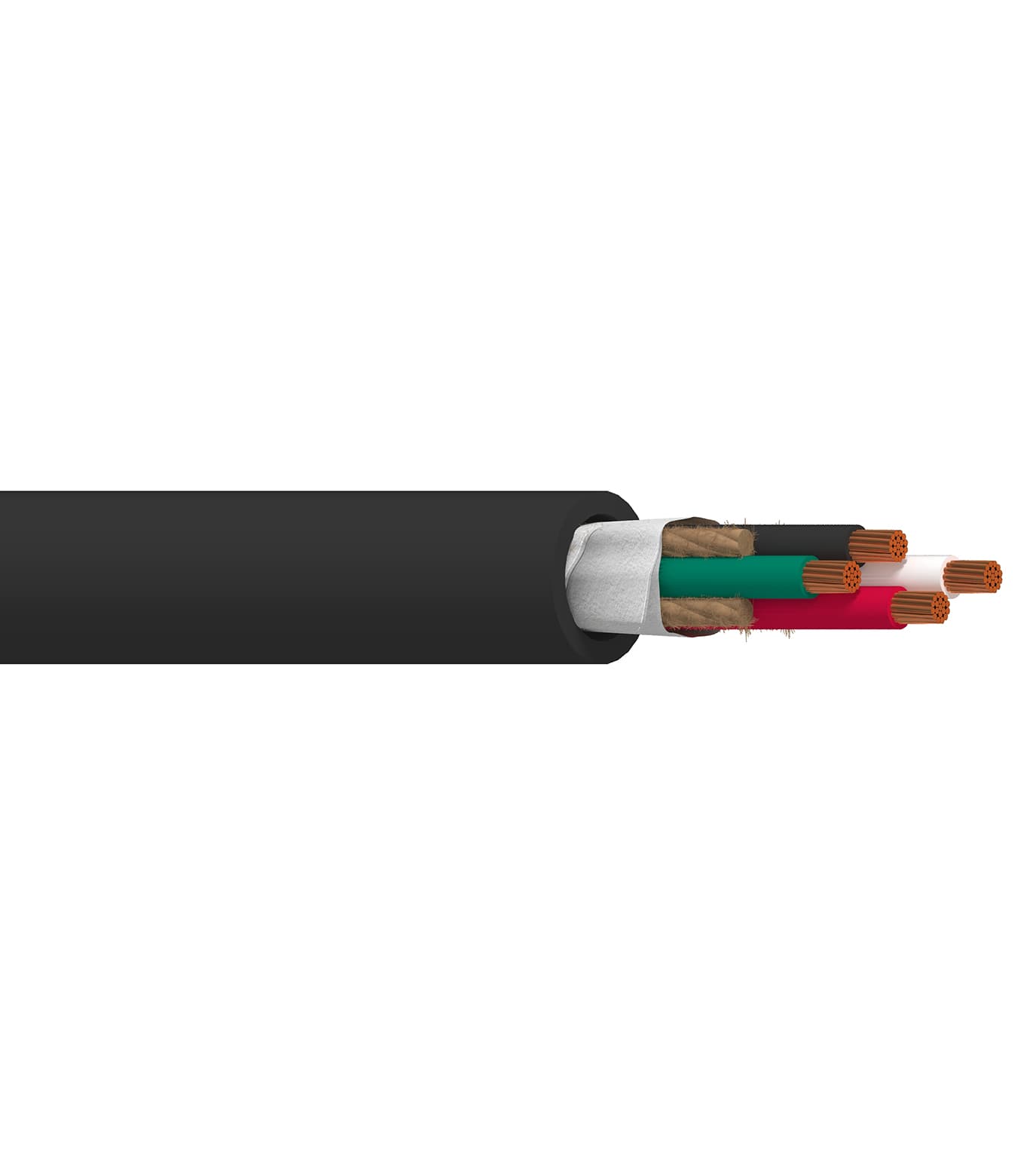

Belden 19216 010, Portable Cordage SO 2C 12 AWG EPDM Rubber Jacket, Black Jacket
SKU:Belden 19216 010
● In stock
Description
Belden 19216 010 is UL Type SO portable cordage with 4 conductors of 12 AWG (65x30) BC - Bare Copper, EPDM - Ethylene Propylene Diene Monomer insulation, and a CPE - Chlorinated Polyethylene (Thermoset) outer jacket in a Black finish. It is unshielded and rated 600 V with a UL temperature of 90°C and an operating range of -20°C To +90°C. Designed for indoor use where oil resistance and flexibility are important, it supports 20 Amps per Conductor at 25ºC (15 Amps over 50 ft).
Belden 19216 010 Applications
- Supports demanding indoor installations where oil resistance helps maintain performance in oily environments.
- Works well in applications that benefit from flexibility, helping the cord handle bending during installation and stationary routing.
- Delivers power in indoor settings where a 600 V rating and the stated current limits are required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Portable cordage: UL Type SO |
| Number of Conductors | 4 |
| Conductor size | 12 AWG |
| Conductor stranding | 65x30 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | EPDM - Ethylene Propylene Diene Monomer |
| Nom. thickness (insulation) | 0.052 in (1.3 mm) |
| Nom. insulation diameter | 0.201 in (5.11 mm) |
| Color Code | Black, White, Green, Red |
| Outer shield | No Shield |
| Separator | Paper Tape |
| Outer jacket material | CPE - Chlorinated Polyethylene (Thermoset) |
| Nom. thickness (outer jacket) | 0.102 in (2.59 mm) |
| Overall cable diameter (nominal) | 0.69 in |
| Jacket Color | Black |
| UL Voltage Rating | 600 V |
| Nom. conductor DCR | 1.7 Ohm/1000ft |
| Max. current | 20 Amps per Conductor at 25ºC (15 Amps over 50 ft) |
| UL temperature | 90°C |
| Operating | -20°C To +90°C |
| Bend radius (stationary min.) | 6.9 in (180 mm) |
| Bend radius (installation min.) | 6.9 in |
| Max Pull Tension | 338 lbs (153 kg) |
| Bulk cable weight | 284 lbs/1000ft |
| Environmental suitability | Indoor, Oil Resistance |
| NEC / UL compliance | Article 400, SO |
| AWM compliance | SO |
| CEC / C(UL) compliance | LL7874 |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
