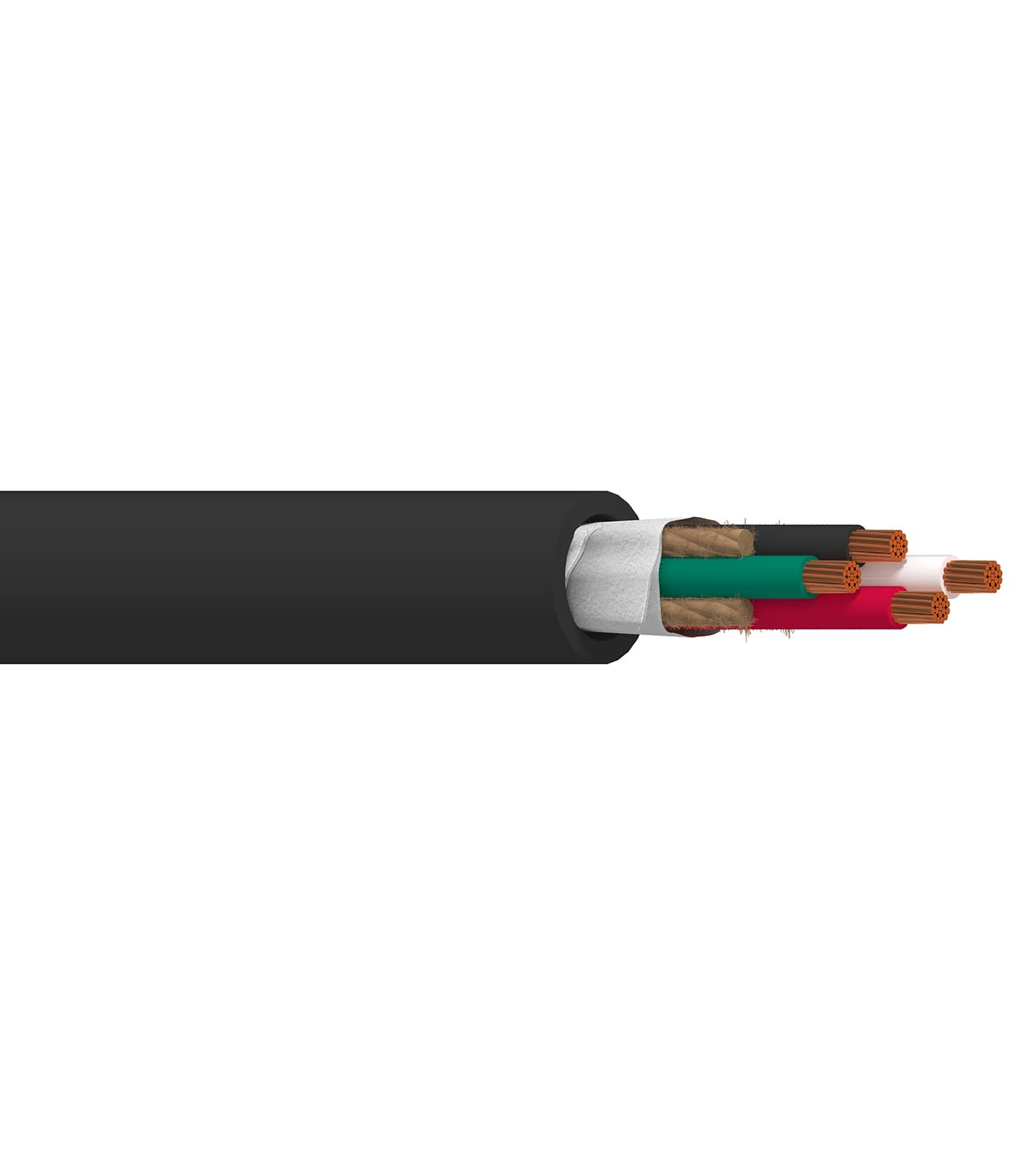

Belden 19217 010, Portable Cordage SO 2C 14 AWG EPDM Rubber Jacket, Black Jacket
SKU:Belden 19217 010
● In stock
Description
Belden 19217 010 portable cordage is a UL Type SO power cable designed for durable, oil-resistant indoor use. It features 4 stranded 14 AWG BC - Bare Copper conductors with EPDM - Ethylene Propylene Diene Monomer insulation and a CPE - Chlorinated Polyethylene (Thermoset) outer jacket in a black finish. This cable is rated 600 V and 90°C, and supports 15 Amps per Conductor at 25ºC (10 Amps over 50 ft) for portable power distribution. A paper tape separator and ripcord support clean jacket removal during installation.
Belden 19217 010 Applications
- Supports portable power distribution where a UL Type SO power cable is required.
- Works well for indoor installations where oil resistance is needed.
- Streamlines installation and termination by supporting clean jacket removal with a paper tape separator and ripcord.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | Portable cordage |
| UL type | UL Type SO |
| Number of Conductors | 4 |
| Conductor size | 14 AWG |
| Stranding | 41x30 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | EPDM - Ethylene Propylene Diene Monomer |
| Color Code | Black, White, Green, Red |
| Outer shield | No Shield |
| Separator | Paper Tape |
| Outer jacket material | CPE - Chlorinated Polyethylene (Thermoset) |
| Ripcord | Yes |
| Jacket Color | Black |
| Nom. thickness (insulation) | 0.048 in (1.2 mm) |
| Nom. insulation diameter | 0.170 in (4.32 mm) |
| Nom. thickness (outer jacket) | 0.087 in (2.2 mm) |
| Overall cable diameter (nominal) | 0.603 in |
| Bulk cable weight | 202 lbs/1000ft |
| UL Voltage Rating | 600 V |
| Nom. conductor DCR | 2.76 Ohm/1000ft |
| Max. current | 15 Amps per Conductor at 25ºC (10 Amps over 50 ft) |
| UL temperature | 90°C |
| Operating temperature | -20°C To +90°C |
| Bend radius (stationary min.) | 6.03 in (153 mm) |
| Bend radius (installation min.) | 6.03 in |
| Max Pull Tension | 213.2 lbs (96.71 kg) |
| Environmental suitability | Indoor, Oil Resistance |
| NEC / UL compliance | Article 400, SO |
| AWM compliance | SO |
| CEC / C(UL) compliance | LL7874 |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other Part Numbers | 19217 010, 19217 01050, 19217 010100, 19217 010200, 19217 010250, 19217 010500, 19217 0101000, UPC 612825126843, UPC 612825126836 |
| Priced Per | FT |
