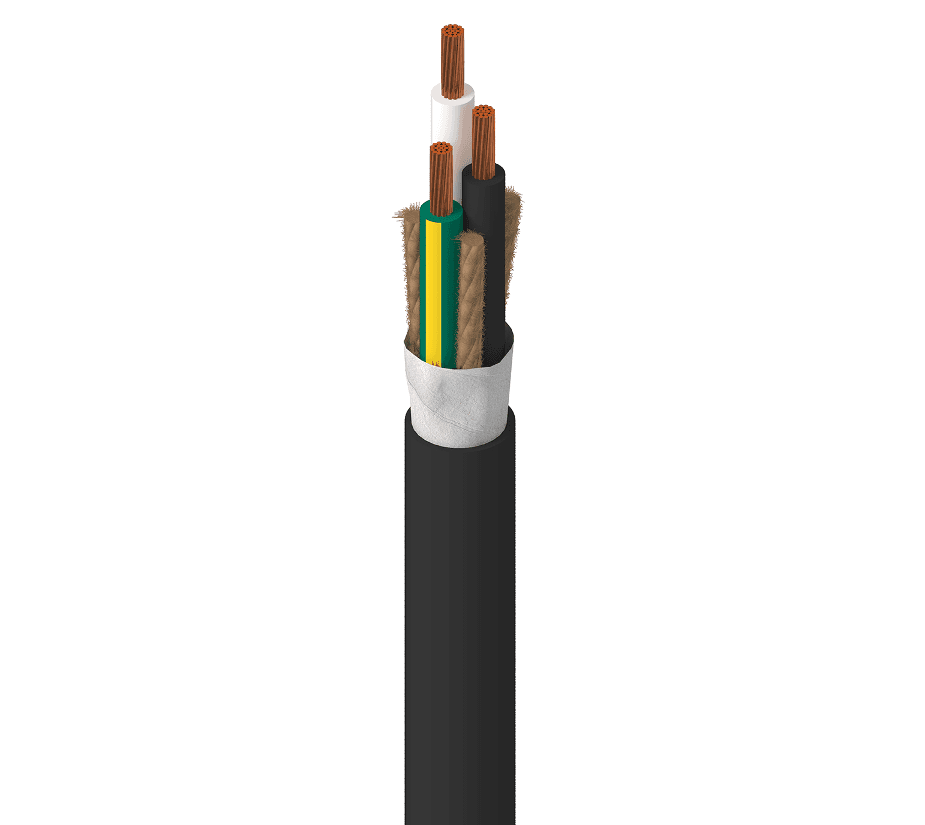

Belden 19349 010, Portable Cordage Type SJT 3C 16 AWG PVC, Black Jacket
SKU:Belden 19349 010
$338.40
● In stock
× 50 ft = Total: 50 ft
Description
Belden 19349 010 is a Type SJT portable cordage cable with 3 stranded 16 conductors, BC - Bare Copper, PVC insulation, and a black PVC outer jacket. It is designed for 300 V service and rated to 60°C. This unshielded cord includes a paper tape separator and supports 13 Amps per Conductor at 25ºC. It is suitable for outdoor use with Sunlight Resistance.
Belden 19349 010 Applications
- Use this cord for portable cordage applications requiring a flexible, portable power connection.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | SJT (UL Type SJT) |
| Number of Conductors | 3 |
| Conductor size | 16 |
| Stranding | 65x34 |
| Conductor Material | BC - Bare Copper |
| Shielding | Unshielded |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. thickness (insulation) | 0.033 in (0.84 mm) |
| Nom. insulation diameter | 0.123 in (3.12 mm) |
| Color Code | Green/Yellow, Black, White |
| Separator | Paper Tape |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. thickness (outer jacket) | 0.038 in (0.97 mm) |
| Nom. diameter | 0.34 in (8.6 mm) |
| Jacket Color | Black |
| UL Voltage Rating | 300 V |
| Nom. conductor DCR | 4.4 Ohm/1000ft |
| Max. current | 13 Amps per Conductor at 25ºC |
| UL temperature | 60°C |
| Bend radius (stationary min.) | 3.4 in (86 mm) |
| Bend radius (installation min.) | 3.4 in (86 mm) |
| Max Pull Tension | 105.3 lbs (47.76 kg) |
| Bulk cable weight | 67 lbs/1000ft |
| Environmental suitability | Outdoor, Sunlight Resistance |
| NEC / UL compliance | Article 400, SJT |
| AWM compliance | SJT |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
