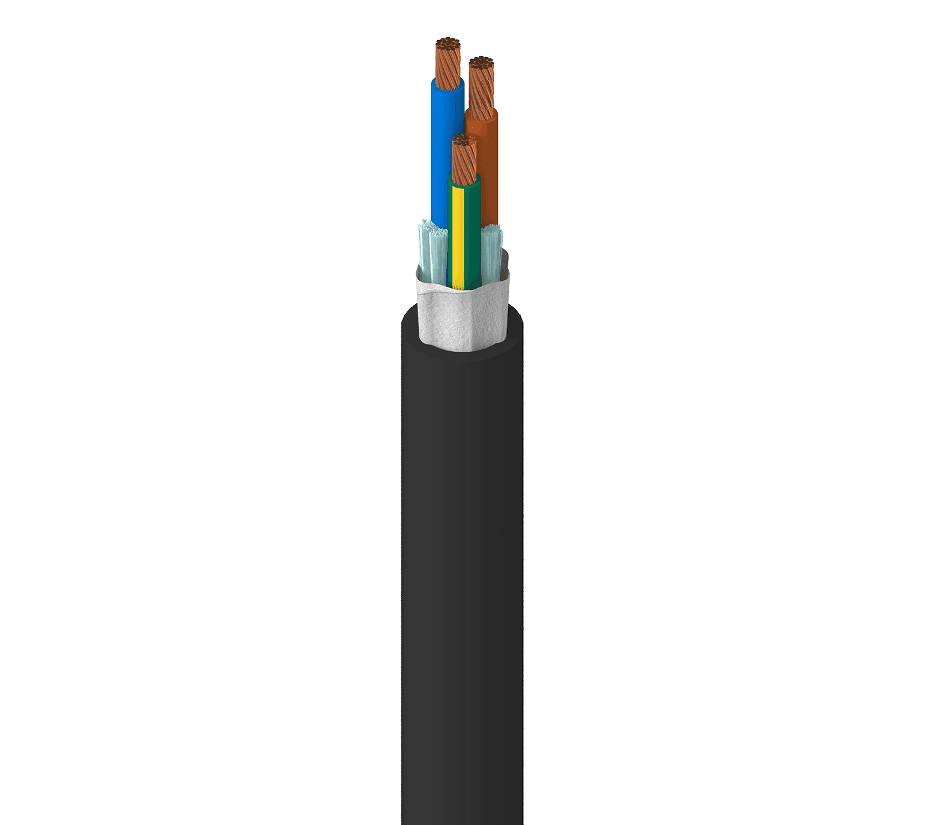

Belden 19505 B59, Type STOW A 3C 14 AWG PVC Portable Cord
SKU:Belden 19505 B59
● In stock
Description
Belden 19505 B59 is a flexible Type STOW-A portable cord built for durable power delivery in portable cordage applications. It features 3 stranded 14 AWG conductors made from BC - Bare Copper with PVC - Polyvinyl Chloride insulation, plus a PVC - Polyvinyl Chloride outer jacket and a paper tape separator. This cord is rated 600 V with a UL temperature of 60°C and an operating temperature of -35°C To +105 °C. It is suitable for outdoor use, offers oil resistance, and meets VW-1 flammability performance.
Belden 19505 B59 Key Features
- Type STOW-A portable cord designed for durable power delivery in portable cordage applications.
- 3 stranded 14 AWG conductors using BC - Bare Copper.
- PVC - Polyvinyl Chloride insulation with a PVC - Polyvinyl Chloride outer jacket and a paper tape separator.
- UL voltage rating: 600 V.
- UL temperature: 60°C; operating temperature: -35°C To +105 °C.
- Environmental suitability: outdoor, oil resistance.
- Flammability / reaction to fire: VW-1.
- Compliance: Article 400, STOW; AWM compliance: STOW; EU CE Mark; EU Directive 2011/65/EU (RoHS 2); EU Directive 2012/19/EU (WEEE); China RoHS II (GB/T 26572-2011).
Belden 19505 B59 Applications
- Choose it for portable cordage and cordage where flexible power delivery is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Stranding | 41x30 |
| Insulation thickness (nom.) | 0.049 in (1.2 mm) |
| Insulation diameter (nom.) | 0.173 in (4.39 mm) |
| Insulation color code | Blue, Brown, Green/Yellow |
| Jacket thickness (nom.) | 0.089 in (2.3 mm) |
| Overall diameter (Nom.) | 0.558 in (14.2 mm) |
| Nom. conductor DCR | 2.76 Ohm/1000ft |
| Max. current | 18 Amps per Conductor at 25ºC (13 Amps over 50 ft); 13 Amps per Conductor at 25ºC (over 50 ft) |
| Stationary min. bend radius | 5.58 in (142 mm) |
| Installation min. bend radius | 5.58 in (142 mm) |
| Max Pull Tension | 142.5 lbs (64.64 kg) |
| Bulk cable weight | 150 lbs/1000ft |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
