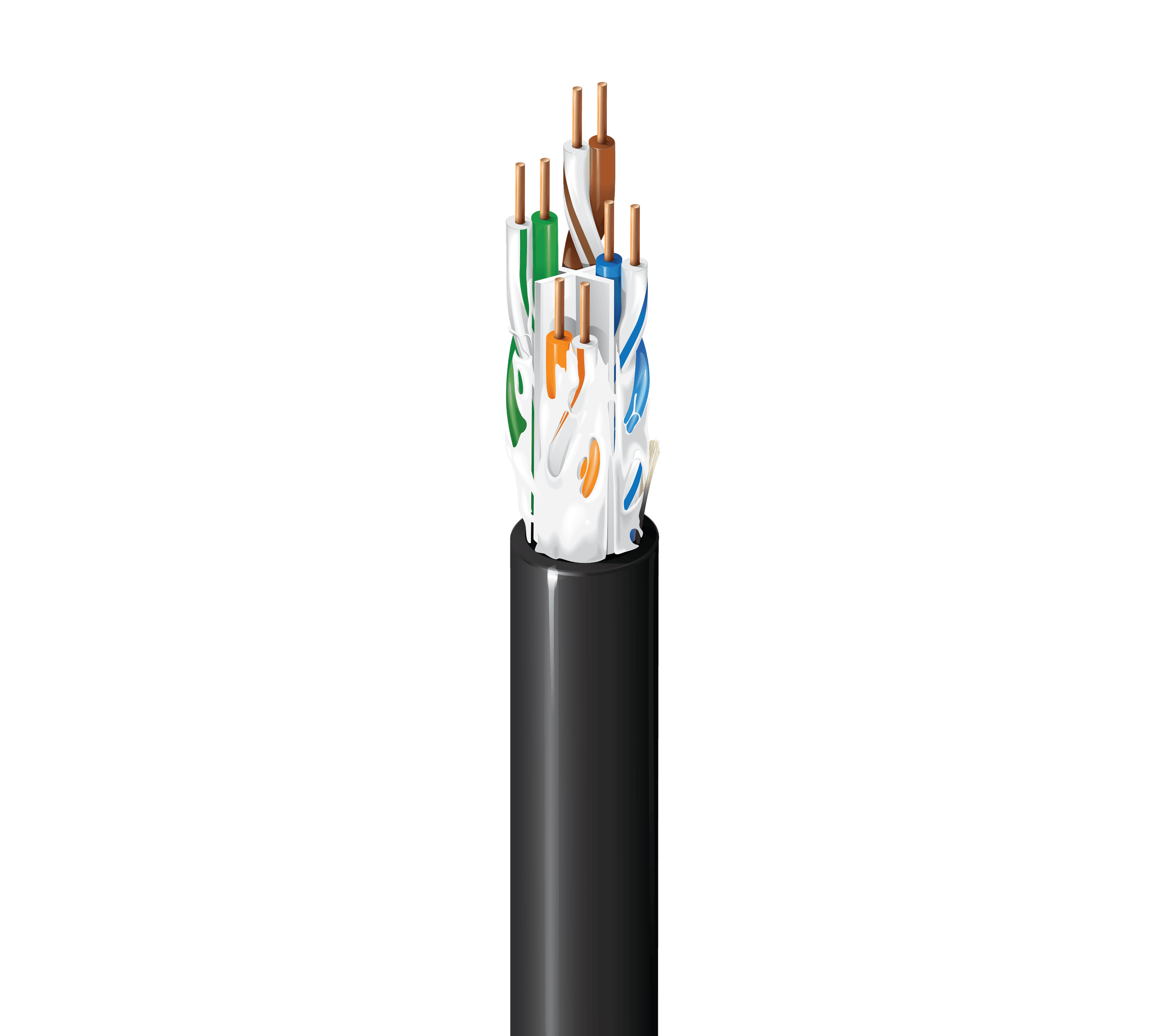

Belden 2143A 010, UTP Cat 6A CMP 23 4P Solid Bare Copper PVC
SKU:Belden 2143A 010
$960.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 2143A 010 is a Category 6 premise horizontal cable (350MHz) built with 23 AWG solid bare copper conductors in a 4-pair U/UTP construction. It features a Haloarrest® UV resistant flame retardant LSZH jacket and gel-filled waterblocking for indoor/outdoor OSP environments. The cable includes a patented X-Spline® center member separator, is rated 300 V (CM-LS), and supports PoE, PoE+, and PoE++.
Belden 2143A 010 Key Features
- Category 6 premise horizontal cable (350MHz) for Ethernet cabling.
- 23 AWG solid bare copper conductors in a 4-pair U/UTP (unshielded twisted pair) design.
- Haloarrest® UV resistant flame retardant LSZH (low smoke zero halogen) jacket.
- Gel-filled waterblocking for indoor/outdoor OSP environments.
- Patented X-Spline® center member separator.
- UL voltage rating: 300 V (CM-LS).
- Supports PoE, PoE+, and PoE++.
Performance & Electrical Characteristics
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation Material | PO - Polyolefin |
| Pair color code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket Color | Black |
| Overall cable diameter (nominal) | 0.275 in (6.99 mm) |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 160 pF/100m |
| Delay (100 MHz) max. delay skew | 45 ns/100m |
| Delay (100 MHz) nom. velocity of prop. | 65% |
| 1 MHz | Max. Insertion Loss (Attenuation) 2.0 dB/100m; Min. NEXT 74.3 dB; Min. PSNEXT 72.3 dB; Min. PSACR 70.3 dB; Min. ACRF (ELFEXT) 67.8 dB; Min. PSACRF (PSELFEXT) 64.8 dB; Min. RL (Return Loss) 20.0 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 40.0 dB; Min. ELTCTL 35.0 dB |
| 4 MHz | Max. Insertion Loss (Attenuation) 3.8 dB/100m; Min. NEXT 65.3 dB; Min. PSNEXT 63.3 dB; Min. PSACR 59.5 dB; Min. ACRF (ELFEXT) 55.7 dB; Min. PSACRF (PSELFEXT) 52.7 dB; Min. RL (Return Loss) 23.0 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 40.0 dB; Min. ELTCTL 23.0 dB |
| 8 MHz | Max. Insertion Loss (Attenuation) 5.3 dB/100m; Min. NEXT 60.8 dB; Min. PSNEXT 58.8 dB; Min. PSACR 53.4 dB; Min. ACRF (ELFEXT) 49.7 dB; Min. PSACRF (PSELFEXT) 46.7 dB; Min. RL (Return Loss) 24.5 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 40.0 dB; Min. ELTCTL 16.9 dB |
| 10 MHz | Max. Insertion Loss (Attenuation) 6.0 dB/100m; Min. NEXT 59.3 dB; Min. PSNEXT 57.3 dB; Min. PSACR 51.4 dB; Min. ACRF (ELFEXT) 47.8 dB; Min. PSACRF (PSELFEXT) 44.8 dB; Min. RL (Return Loss) 25.0 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 40.0 dB; Min. ELTCTL 15.0 dB |
| 16 MHz | Max. Insertion Loss (Attenuation) 7.6 dB/100m; Min. NEXT 56.3 dB; Min. PSNEXT 54.3 dB; Min. PSACR 46.7 dB; Min. ACRF (ELFEXT) 43.7 dB; Min. PSACRF (PSELFEXT) 40.7 dB; Min. RL (Return Loss) 25.0 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 38.0 dB; Min. ELTCTL 10.9 dB |
| 20 MHz | Max. Insertion Loss (Attenuation) 8.5 dB/100m; Min. NEXT 54.8 dB; Min. PSNEXT 52.8 dB; Min. PSACR 44.3 dB; Min. ACRF (ELFEXT) 41.7 dB; Min. PSACRF (PSELFEXT) 38.7 dB; Min. RL (Return Loss) 25.0 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 37.0 dB; Min. ELTCTL 9.0 dB |
| 25 MHz | Max. Insertion Loss (Attenuation) 9.5 dB/100m; Min. NEXT 53.3 dB; Min. PSNEXT 51.3 dB; Min. PSACR 41.8 dB; Min. ACRF (ELFEXT) 39.8 dB; Min. PSACRF (PSELFEXT) 36.8 dB; Min. RL (Return Loss) 24.3 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 36.0 dB; Min. ELTCTL 7.0 dB |
| 31.25 MHz | Max. Insertion Loss (Attenuation) 10.7 dB/100m; Min. NEXT 51.9 dB; Min. PSNEXT 49.9 dB; Min. PSACR 39.2 dB; Min. ACRF (ELFEXT) 37.9 dB; Min. PSACRF (PSELFEXT) 34.9 dB; Min. RL (Return Loss) 23.6 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 35.1 dB; Min. ELTCTL 5.1 dB |
| 62.5 MHz | Max. Insertion Loss (Attenuation) 15.4 dB/100m; Min. NEXT 47.4 dB; Min. PSNEXT 45.4 dB; Min. PSACR 30.0 dB; Min. ACRF (ELFEXT) 31.8 dB; Min. PSACRF (PSELFEXT) 28.8 dB; Min. RL (Return Loss) 21.5 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 32.0 dB |
| 100 MHz | Max. Insertion Loss (Attenuation) 19.8 dB/100m; Min. NEXT 44.3 dB; Min. PSNEXT 42.3 dB; Min. PSACR 22.5 dB; Min. ACRF (ELFEXT) 27.8 dB; Min. PSACRF (PSELFEXT) 24.8 dB; Min. RL (Return Loss) 20.1 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm; Min. TCL 30.0 dB |
| 155 MHz | Max. Insertion Loss (Attenuation) 25.2 dB/100m; Min. NEXT 41.5 dB; Min. PSNEXT 39.5 dB; Min. PSACR 14.3 dB; Min. ACRF (ELFEXT) 23.9 dB; Min. PSACRF (PSELFEXT) 20.9 dB; Min. RL (Return Loss) 18.8 dB; Max./Min. Input Impedance (unFitted) 100 ± 22 Ohm |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
