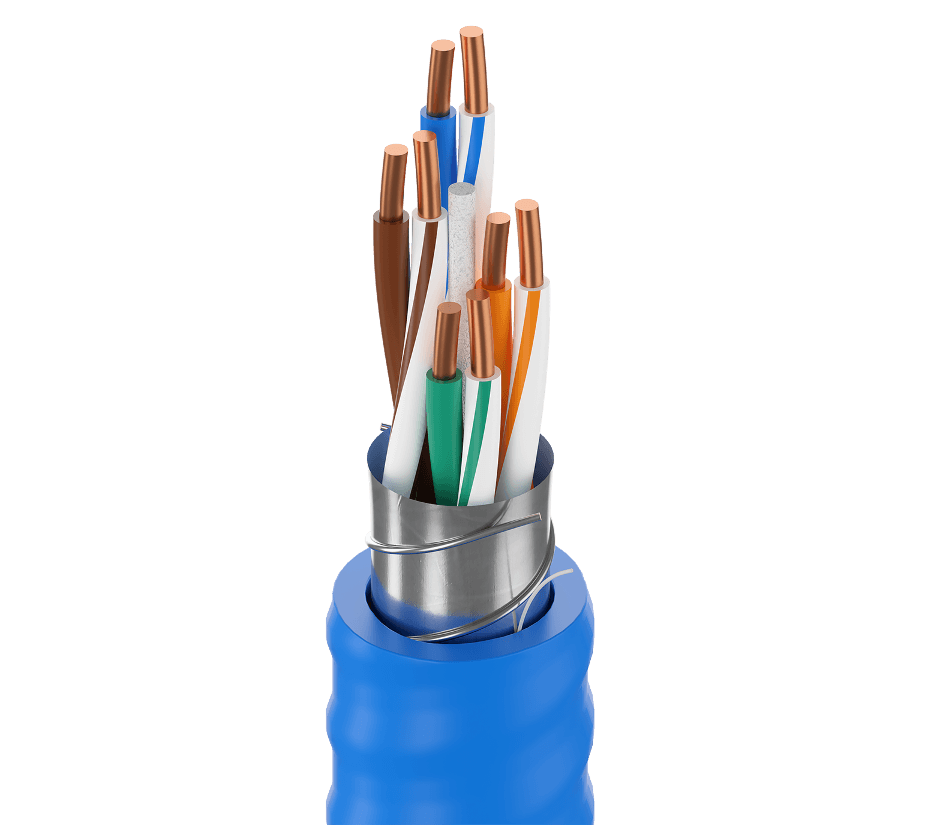

Belden 2183R 006Z, 23 4P F UTP HDBASET CMR PVC Light Blue Jkt
SKU:Belden 2183R 006Z
● In stock
Description
Belden 2183R 006Z is a 4-pair, 23 AWG F/UTP cable designed for HDBaseT and Full 5-Play performance, supporting 4K (UHD/DCI) along with POH and POE applications. It features solid bare copper conductors with PP - Polypropylene insulation, plus a bi-laminate tape shield with two helically applied TC drain wires for added flexibility. The PVC - Polyvinyl Chloride jacket is rated for riser installations with Riser CMR-LP (0.6A) performance and a UL voltage rating of 300 V (CMR). The cable has a nominal 0.290 in (7.37 mm) overall diameter and a blue jacket.
Belden 2183R 006Z Key Features
- Supports HDBaseT and Full 5-Play performance, including 4K (UHD/DCI), POH, and POE applications.
- 4-pair, 23 AWG construction with solid BC - Bare Copper conductors and PP - Polypropylene insulation.
- F/UTP shielding with bi-laminate (Alum+Poly) tape and 100% shield coverage.
- Two 26 AWG (Solid) TC drain wires applied helically for added flexibility.
- PVC - Polyvinyl Chloride jacket with Riser CMR-LP (0.6A) performance and UL voltage rating: 300 V (CMR).
- Includes an easy-strip ripcord for easier jacket removal.
Belden 2183R 006Z Applications
- Use in HDBaseT links that require Full 5-Play performance.
- Enable 4K (UHD/DCI) signal delivery in installations that specify this capability.
- Deploy for POH and POE applications where power delivery over the link is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Jacket Color | Blue |
| Nom. jacket thickness | 0.025 in (0.64 mm) |
| Overall cable diameter (nominal) | 0.290 in (7.37 mm) |
| Nom. insulation thickness | 0.013 in (0.33 mm) |
| Nom. insulation diameter | 0.48 in (12 mm) |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Bulk cable weight | 36 lbs/1000ft |
| Plenum number | 2183P |
| Nom. conductor DCR | 23.2 Ohm/1000ft |
| Max. Conductor DCR | 93.8 Ohm/km |
| Nom. outer shield DCR | 7.57 Ohm/1000ft (24.8 Ohm/km) |
| Max. capacitance unbalance | 330 pF/100m |
| Nom. velocity of prop. | 72% |
| Max. current | 2.8 Amps per Conductor @ 30°C |
| Operating temperature | -20°C to +90°C |
| Installation temperature | 0°C to +75°C |
| UL temperature | 90°C |
| Stationary min. bend radius | 2.9 in (74 mm) |
| Installation min. bend radius | 2.9 in (74 mm) |
| Max Pull Tension | 52.8 lbs (23.9 kg) |
| Environmental suitability | Indoor - Riser, Indoor |
| Flammability / reaction to fire | UL 1666 Riser, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMR, CMR-LP (0.5A), CL3R-LP (0.5A) |
| CEC / C(UL) compliance | CMR |
| IEEE compliance | POE per 802.3af & POE+ 802.3at-2009 |
| ISO/IEC compliance | 11801 ed 2.2 (2011) Class D |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
