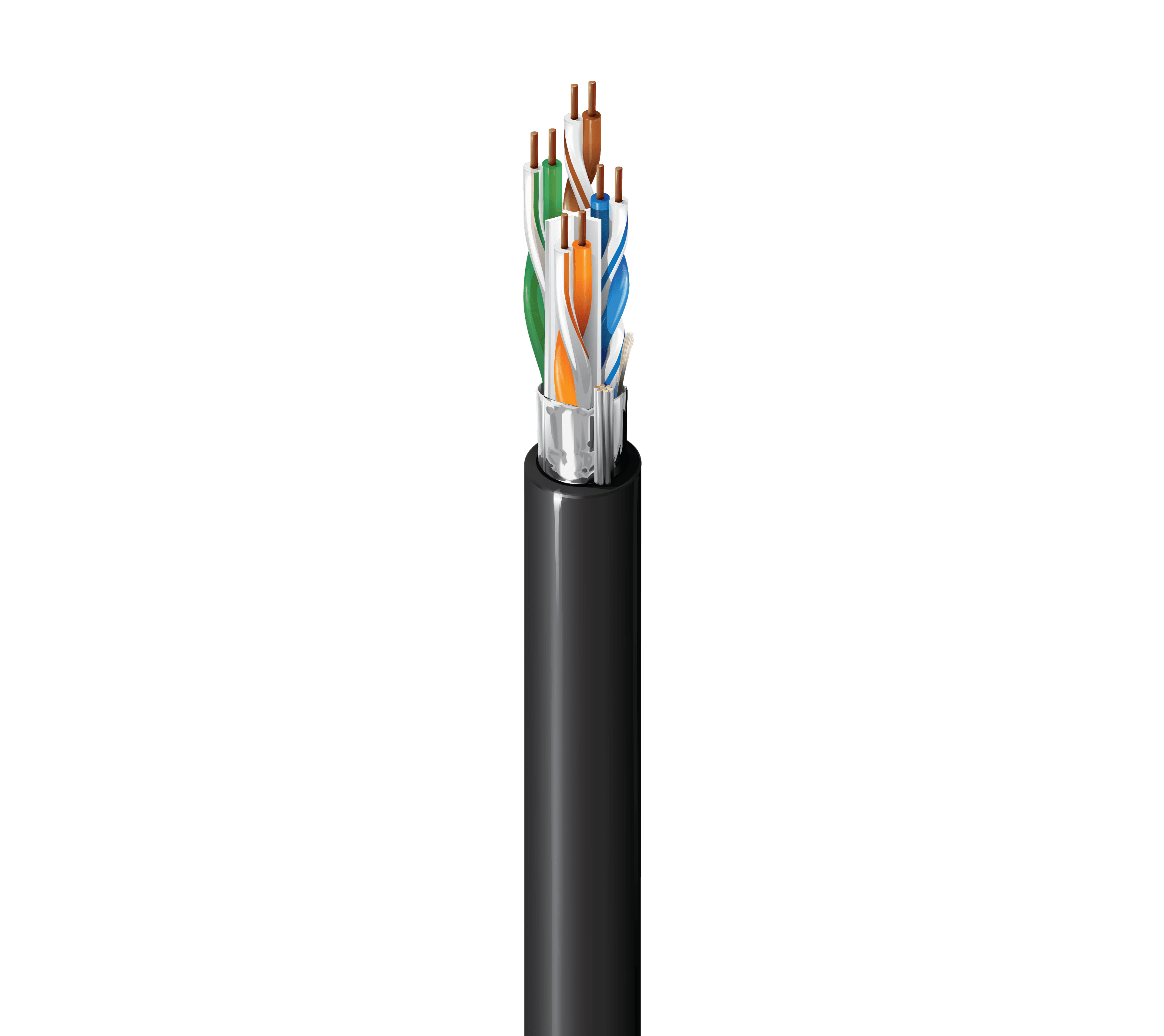

Belden 2412FS 010, 23 4P F UTP CAT6 CMR PVC Black Jacket
SKU:Belden 2412FS 010
$780.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 2412FS 010 is a Category 6+ Enhanced Premise Horizontal Cable (350MHz) designed for riser, indoor installations in noisy environments. It is a 4 pair, 23 AWG solid bare copper F/UTP cable with a 100% foil shield and a patented X-Spline® center member. The cable has a PVC jacket in black and is rated for UL 1666 Riser and FT4.
Belden 2412FS 010 Key Features
- Category 6+ Enhanced Premise Horizontal Cable (350MHz) for data applications.
- 4 pair, 23 AWG solid bare copper (BC - Bare Copper) conductor construction.
- F/UTP - Foiled/Unshielded Twisted Pair design with 100% foil coverage.
- Patented X-Spline® center member helps maintain pair geometry and signal integrity.
- PVC jacket in black with fire rating: Riser-CMR.
- Environmental suitability: riser, indoor.
- Flammability / reaction to fire: UL 1666 Riser, FT4, IEC 60332-1-2.
Belden 2412FS 010 Applications
- Use as a premise horizontal cable for structured cabling runs in riser, indoor environments.
- Support Ethernet 1000BASE-T, Ethernet 100BASE-TX, and Ethernet 10BASE-T network connections.
- Choose it for surveillance connectivity where Ethernet cabling is required.
- Deliver power with PoE++, PoE+, and PoE for compatible devices over the network link.
- Install in noisy environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Data category | Category 6 |
| Insulation Material | PO - Polyolefin |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Outer shield type | Tape |
| Outer shield material | Polyester + Bi-Laminate (Alum+Poly) |
| Drainwire type | 26 AWG (7x34) TC |
| Separator material | PVC - Polyvinyl Chloride |
| Ripcord | No |
| Overall cable diameter (nominal) | 0.275 in (6.99 mm) |
| Bulk cable weight | 37 lbs/1000ft |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 45 ns/100m |
| Nom. velocity of prop. | 68% |
| UL Voltage Rating | 300 V (CMR) |
| UL temperature | 75°C |
| Operating temperature | -20°C To +75°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.65 in (67.3 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| CPR Euroclass | Eca |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMR |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| Third party performance verification | Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Plenum number | 2413FS |
| Patent information | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
