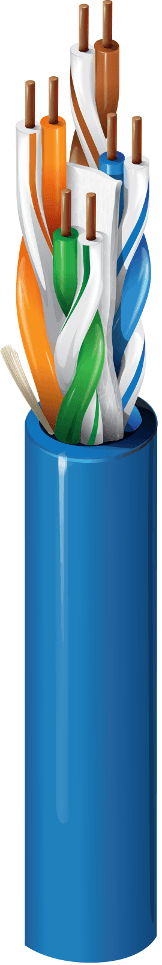

Belden 2413 D15, Enhanced Category 6 Cable 4 pair U/UTP CMP Blue
Description
Belden 2413 D15 is a Category 6+ Enhanced premise horizontal cable (350MHz) designed for high-performance Ethernet networks and PoE delivery in plenum spaces. It uses 4 pair of 23 AWG solid BC - Bare Copper conductors in a U/UTP design. The cable features a blue Plenum-CMP Flamarrest® PVC-LS jacket with a patented dielectric tape separator and ripcord to support streamlined installation. It aligns with ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801-1.
Belden 2413 D15 Key Features
- Category 6+ Enhanced premise horizontal cable (350MHz) for structured cabling performance requirements.
- 4 pair construction with 23 AWG solid BC - Bare Copper conductors in a U/UTP design.
- Blue Plenum-CMP jacket using Flamarrest® PVC-LS jacket material for plenum, indoor environments.
- Patented dielectric tape separator and ripcord to help streamline cable pulls and preparation.
- Meets key standards including ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801-1.
Belden 2413 D15 Applications
- Use it for premise horizontal cable installations within structured cabling layouts.
- Support Ethernet 1000BASE-T links in network infrastructure where Category 6 performance is required.
- Connect Ethernet 100BASE-TX for common LAN equipment and endpoints.
- Maintain compatibility with Ethernet 10BASE-T for legacy network connectivity needs.
- Deliver PoE++, PoE+, and PoE to power connected devices over the network link.
Patent Notice
- This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Shield Type | U/UTP |
| Pairs | 4 |
| Conductor size | 23 AWG |
| Stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket type | Plenum-CMP |
| Jacket Material | PVC - Polyvinyl Chloride |
| Material trade name | Flamarrest® |
| Jacket Color | Blue |
| Separator | Dielectric Tape (Patented) |
| Ripcord | Yes |
| Non-Plenum number | 2412 |
| Overall cable diameter (nominal) | 0.224 in (5.69 mm) |
| Bulk cable weight | 26 lbs/1000ft |
| Max. Conductor DCR | 78 Ohm/km (24 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Delay (100 MHz) | 537.6 ns/100m |
| Delay skew (100 MHz) | 35 ns/100m |
| Nom. velocity of prop. (100 MHz) | 72% |
| UL Voltage Rating | 300 V (CMP), 300 V (CL3P) |
| Max Pull Tension | 25 lbs (11 kg) |
| Minimum bend radius (stationary) | 1.0 in (25 mm) |
| Minimum bend radius (installation) | 2.25 in (57.2 mm) |
| UL temperature | 90°C |
| Operating | -20°C To +75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Environmental suitability | Plenum, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP, CMP-LP (0.5A), CL3P-LP (0.5A) |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| ICEA compliance | S-116-732 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
