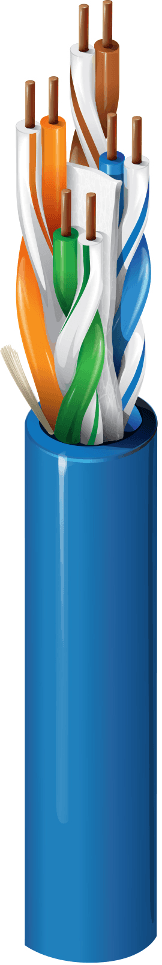

Belden 2413 D15A, Multi Conductor Cat 6 4 pair UTP CMP Blue
Description
Belden 2413 D15A is a Category 6 enhanced premise horizontal cable (350MHz) for high-performance Ethernet networks and PoE delivery in plenum spaces. It features 4 pairs of 23 AWG solid bare copper conductors in a U/UTP construction with a Flamarrest® PVC-LS jacket. A patented dielectric tape separator and ripcord are included to help streamline installation. It meets plenum-CMP requirements and aligns with ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801-1.
Belden 2413 D15A Key Features
- Category 6 enhanced premise horizontal cable (350MHz) for Ethernet networks and PoE delivery in plenum spaces.
- U/UTP construction with 4 pairs of 23 AWG solid bare copper conductors.
- Flamarrest® PVC-LS jacket with a patented dielectric tape separator and ripcord to help streamline installation.
- Plenum-CMP fire rating for plenum, indoor environmental suitability.
- Aligned with ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801-1.
Belden 2413 D15A Applications
- Intended for premise horizontal cable installations in plenum, indoor environments.
- Supports Ethernet 1000BASE-T network links.
- Enables Ethernet 100BASE-TX network links.
- Works with Ethernet 10BASE-T network links.
- Supports PoE++, PoE+, and PoE delivery.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 6 |
| Number of pairs | 4 |
| Conductor size | 23 AWG |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Insulation color code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Outer jacket trade name | Flamarrest® |
| Separator | Dielectric Tape (Patented) |
| Ripcord | Yes |
| Jacket Color | Blue |
| Overall cable diameter (nominal) | 0.224 in (5.69 mm) |
| Bulk cable weight | 26 lbs/1000ft |
| Max. Conductor DCR | 78 Ohm/km (24 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 35 ns/100m |
| Nom. velocity of prop. | 72% |
| UL Voltage Rating | 300 V (CMP), 300 V (CL3P) |
| UL temperature | 90°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.25 in (57.2 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL compliance | Article 800, CMP, CMP-LP (0.5A), CL3P-LP (0.5A) |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| Third party performance verification | Category 6 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Non-Plenum number | 2412 |
| Patent notice | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
