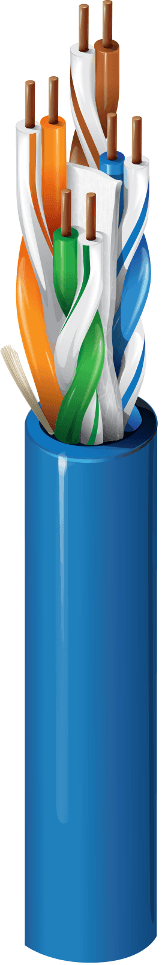

Belden 2413 D15U, Enhanced Cat6 4 pair U UTP CMP Blue Box
Description
Belden 2413 D15U is a Category 6+ Enhanced premise horizontal cable (350MHz) for high-performance Ethernet networks and PoE delivery in plenum spaces. It is built with 4 pair 23 AWG solid bare copper conductors in a U/UTP construction, with PO+FEP insulation and a patented dielectric tape separator. This blue plenum-CMP cable uses a Flamarrest® PVC-LS jacket and includes an integrated ripcord for easier pulls. It supports Ethernet 1000BASE-T, Ethernet 100BASE-TX, and Ethernet 10BASE-T, and meets NFPA 262 / UL 910 (Plenum) and ANSI/TIA-568.2-D Category 6.
Belden 2413 D15U Key Features
- Category 6+ Enhanced premise horizontal cable (350MHz) designed for structured cabling in plenum spaces.
- 4 pair 23 AWG solid bare copper conductors in a U/UTP construction.
- PO+FEP insulation with a patented dielectric tape separator for consistent pair separation.
- Flamarrest® PVC-LS jacket in blue with a plenum-CMP jacket rating.
- Supports Ethernet 1000BASE-T, Ethernet 100BASE-TX, and Ethernet 10BASE-T.
- Supports PoE++, PoE+, PoE.
- Meets NFPA 262, UL 910 (Plenum), and ANSI/TIA-568.2-D Category 6.
- Integrated ripcord for easier pulls.
Belden 2413 D15U Applications
- Intended for premise horizontal cable runs in plenum, indoor environments.
- Supports Ethernet 1000BASE-T links in high-performance network installations.
- Use it with Ethernet 100BASE-TX for standard network connectivity needs.
- For legacy Ethernet connections, it is compatible with Ethernet 10BASE-T.
- Enables PoE++, PoE+, PoE delivery to power network devices over the same cabling.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Pairs | 4 |
| Conductor size | 23 AWG |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Shielding | U/UTP |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Separator | Dielectric Tape (Patented) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket trade name | Flamarrest® |
| Jacket type | Flamarrest® PVC-LS Jacket |
| Jacket Color | Blue |
| Overall cable diameter (nominal) | 0.224 in (5.69 mm) |
| Bulk cable weight | 26 lbs/1000ft |
| Max. Conductor DCR | 78 Ohm/km (24 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 35 ns/100m |
| Nom. velocity of prop. | 72% |
| UL Voltage Rating | 300 V (CMP), 300 V (CL3P) |
| Max Pull Tension | 25 lbs (11 kg) |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.25 in (57.2 mm) |
| UL temperature | 90°C |
| Operating | -20°C To +75°C |
| Installation | 0°C To +50°C |
| Storage | -20°C To +75°C |
| Environmental suitability | Plenum, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP, CMP-LP (0.5A), CL3P-LP (0.5A) |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| ICEA compliance | S-116-732 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Third party performance verification | Category 6 |
| Non-Plenum number | 2412 |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Patents | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
