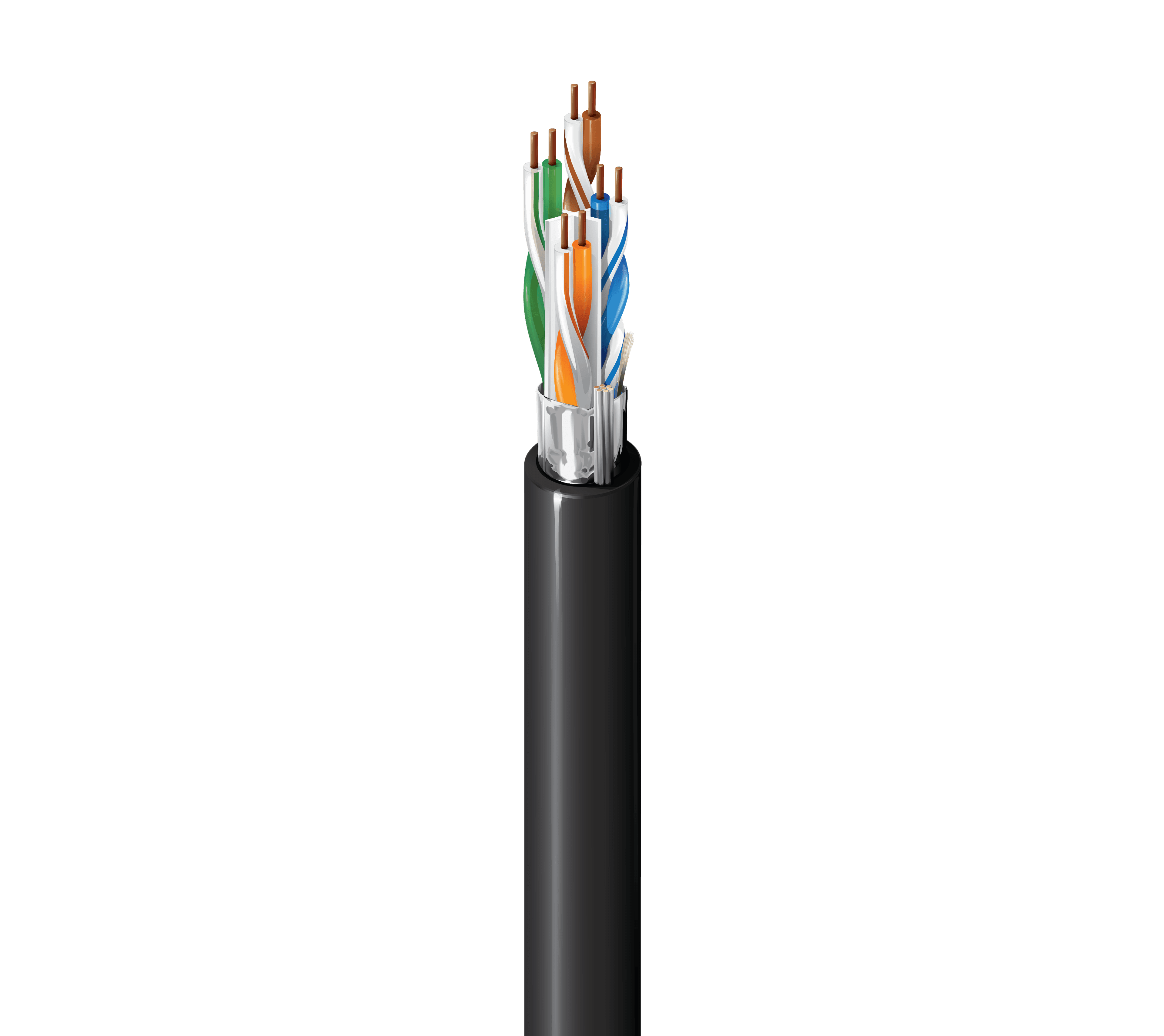

Belden 2413FS 002, 23 4P F/UTP CMP Solid BC FEP LSPVC 300V 75C
SKU:Belden 2413FS 002
● In stock
× 50 ft = Total: 50 ft
Description
Belden 2413FS 002 is a Category 6+ enhanced premise horizontal cable (350MHz) designed for plenum, indoor installations. It is built with 4 pairs of 23 AWG solid bare copper conductors and F/UTP - Foiled/Unshielded Twisted Pair shielding, with FEP - Fluorinated Ethylene Propylene insulation and a Flamarrest® PVC - Polyvinyl Chloride jacket. This cable is UL voltage rating: 300 V (CMP) and supports PoE++, PoE+, and PoE.
Belden 2413FS 002 Key Features
- Category 6+ enhanced premise horizontal cable (350MHz) for structured cabling installations.
- 4 pairs of 23 AWG solid bare copper conductors for data networking runs.
- F/UTP - Foiled/Unshielded Twisted Pair shielding with 100% coverage to help reduce interference in noisy environments.
- FEP - Fluorinated Ethylene Propylene insulation with a Flamarrest® PVC - Polyvinyl Chloride jacket.
- UL voltage rating: 300 V (CMP).
- Environmental suitability: plenum, indoor.
Belden 2413FS 002 Applications
- Specified for premise horizontal cable installations in building cabling pathways.
- Supports Ethernet 1000BASE-T network links.
- Supports Ethernet 100BASE-TX network links.
- Supports Ethernet 10BASE-T network links.
- Listed for surveillance connectivity.
- Use for PoE++, PoE+, and PoE deployments where power and data are carried over the same cabling.
- Intended for noisy environments where shielding is used to help reduce interference.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 6 |
| Type | Data |
| Pair color code | White & Blue, White & Orange, White & Green, White & Brown |
| Outer shield type | Tape |
| Outer shield material | Polyester + Bi-Laminate (Alum+Poly) |
| Drainwire type | 26 AWG (7x34) TC |
| Separator | Center Member (Patented X-Spline®) |
| Jacket trade name | Flamarrest® |
| Jacket Color | Red |
| Overall cable diameter (nominal) | 0.255 in (6.48 mm) |
| Ripcord | No |
| Bulk cable weight | 37 lbs/1000ft (55 kg/km) |
| Non-Plenum number | 2412FS |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 45 ns/100m |
| Nom. velocity of prop. | 72% |
| UL temperature | 105°C |
| Operating temperature | -20°C To +75°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.55 in (64.8 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Fire rating | Plenum |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMP, CL3P-LP (0.5A), CMP-LP (0.5A) |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| Third party performance verification | Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Patents | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
