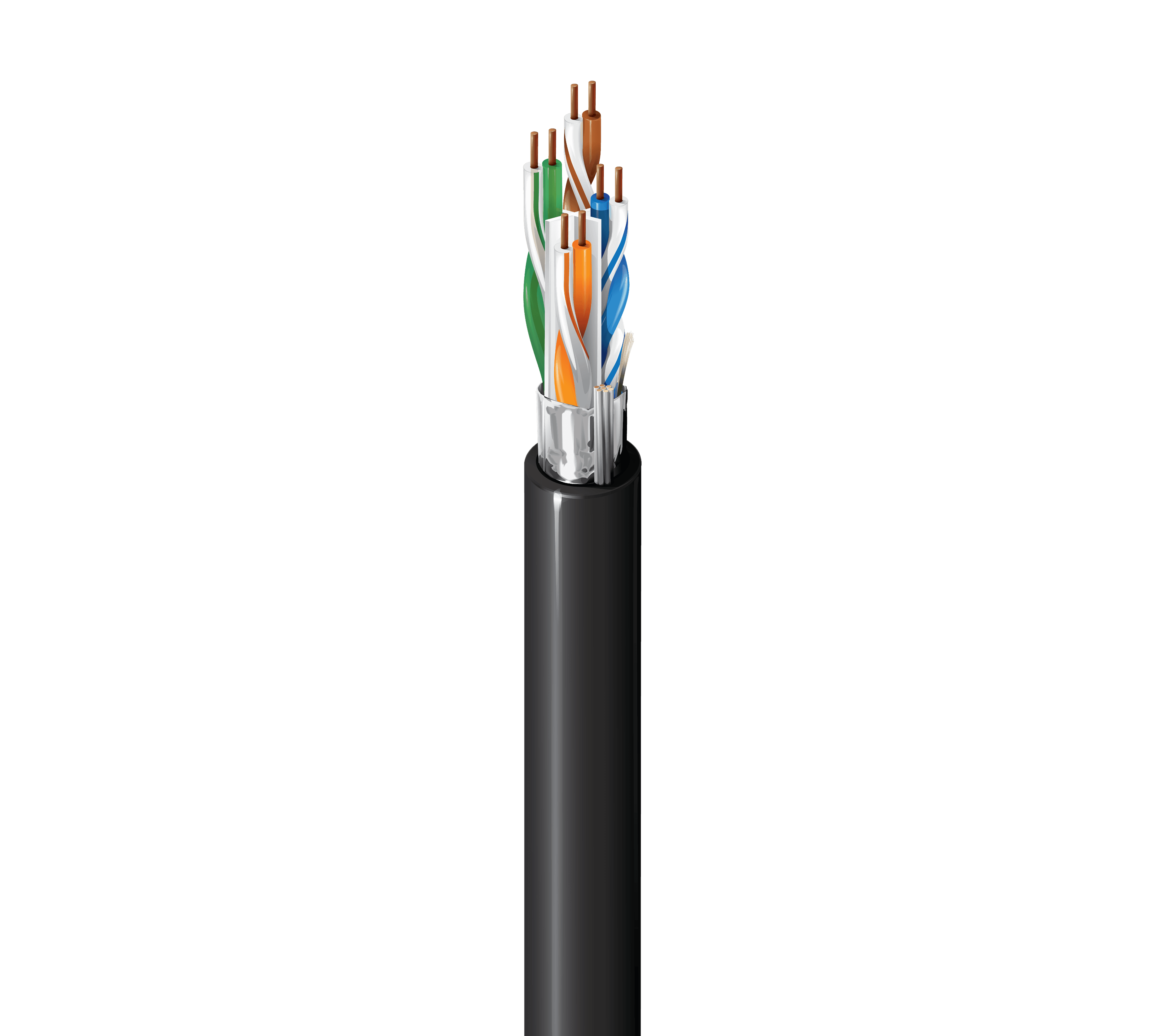

Belden 2413FS 010, 23 4P UTP CMP Solid BC FEP LSPVC 300V 75C, Black Jacket
SKU:Belden 2413FS 010
● In stock
× 50 ft = Total: 50 ft
Description
Belden 2413FS 010 is a Category 6+ Enhanced Premise Horizontal Cable (350MHz) designed for data deployments in plenum, indoor environments. It is a 4 pair, 23 AWG solid bare copper F/UTP cable with FEP - Fluorinated Ethylene Propylene insulation, a 100% foil shield, and a black Flamarrest® PVC-LS jacket. The cable is UL rated 300 V (CMP) and lists operating and storage temperatures of -20°C to +75°C.
Belden 2413FS 010 Key Features
- Category 6+ Enhanced Premise Horizontal Cable (350MHz) for data installations.
- F/UTP - foil shielded construction with 100% coverage to support performance in noisy environments.
- Plenum-CMP fire rating with a black Flamarrest® PVC-LS jacket.
- UL voltage rating: 300 V (CMP).
- Operating temperature: -20°C to +75°C; storage temperature: -20°C to +75°C.
Belden 2413FS 010 Applications
- Specified for Premise Horizontal Cable installations.
- Supports Ethernet 1000BASE-T, Ethernet 100BASE-TX, and Ethernet 10BASE-T links.
- Listed for surveillance connectivity.
- Enables PoE++, PoE+, and PoE deployments.
- Intended for use in noisy environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Data category | Category 6 |
| Environmental suitability | Plenum, Indoor |
| Conductor size | 23 AWG |
| Stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Number of pairs | 4 |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Color Code | White & Blue, White & Orange, White & Green, White & Brown |
| Shield Type | Tape |
| Shield Material | Polyester + Bi-Laminate (Alum+Poly) |
| Drainwire type | 26 AWG (7x34) TC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Material trade name | Flamarrest® |
| Separator | Center Member (Patented X-Spline®) |
| Ripcord | No |
| Non-Plenum number | 2412FS |
| Overall cable diameter (nominal) | 0.255 in (6.48 mm) |
| Bulk cable weight | 37 lbs/1000ft (55 kg/km) |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 45 ns/100m |
| Nom. velocity of prop. | 72% |
| UL temperature | 105°C |
| Stationary min. bend radius | 1.0 in (25 mm) |
| Installation min. bend radius | 2.55 in (64.8 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR Euroclass | Eca |
| NEC / UL compliance | Article 800, CMP, CL3P-LP (0.5A), CMP-LP (0.5A) |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| Third party performance verification | Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Patent information | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
