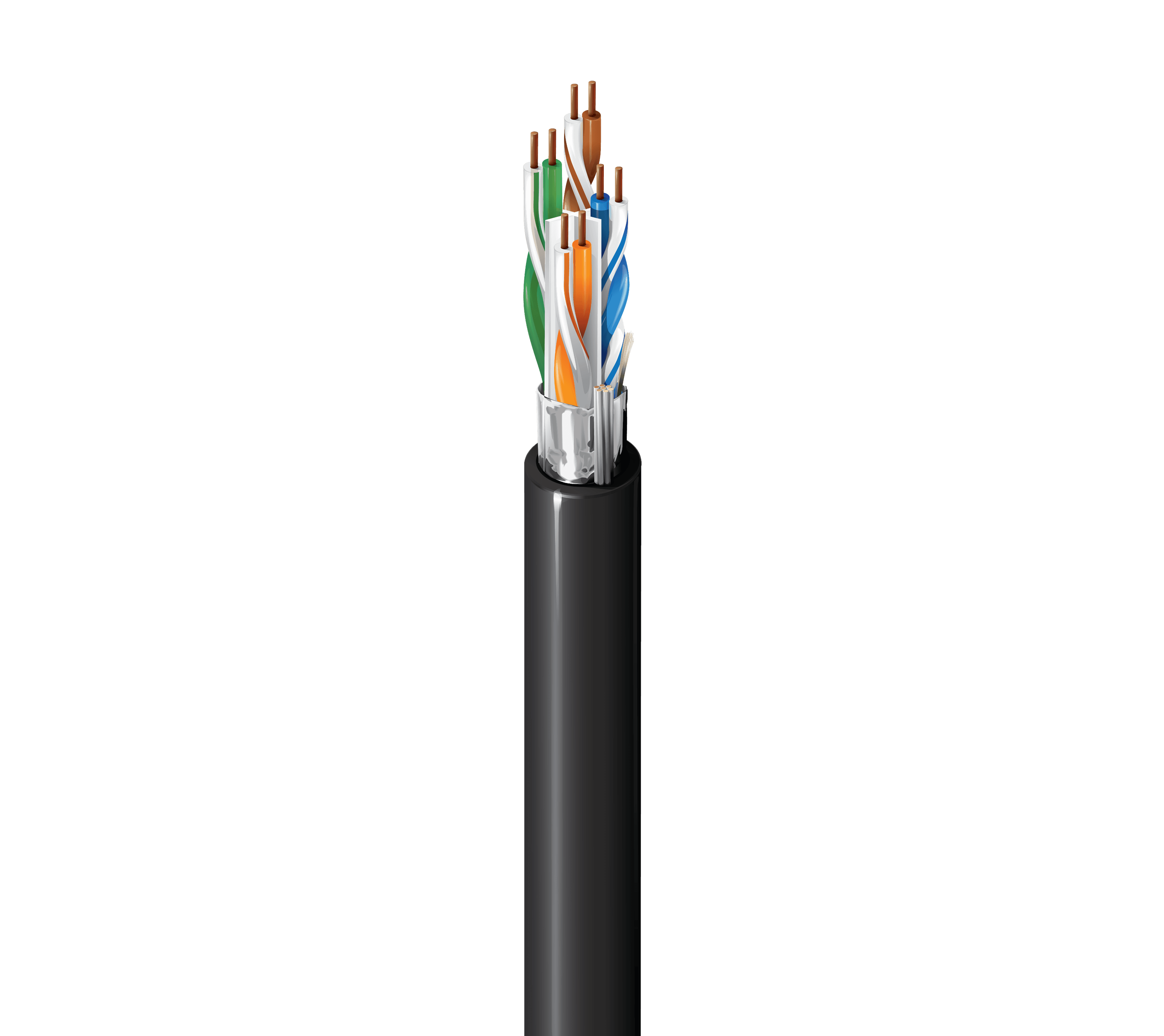

Belden 2413FS D15, CAT6 4P UTP 23 AWG CMP FEP LSPVC 300V
SKU:Belden 2413FS D15
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 2413FS D15 is a Category 6+ enhanced premise horizontal cable (350MHz) designed for Ethernet performance in noisy environments. It is a 4 pair, 23 AWG solid bare copper F/UTP cable with 100% foil shield coverage to help reduce interference and support PoE, PoE+, and PoE++ applications. The cable features FEP insulation and a Plenum-CMP construction with a Flamarrest® PVC-LS jacket for indoor plenum installations.
Belden 2413FS D15 Key Features
- Category 6+ enhanced premise horizontal cable (350MHz) for Ethernet networks.
- F/UTP design with 100% foil shield coverage to help reduce interference in noisy environments.
- 4 pair, 23 AWG solid bare copper construction.
- FEP insulation with Plenum-CMP construction and a Flamarrest® PVC-LS jacket for indoor plenum installations.
- Supports PoE, PoE+, and PoE++ applications, including IEEE 802.3bt Type 1, Type 2, Type 3, Type 4.
Belden 2413FS D15 Applications
- Designed for premise horizontal cable runs in indoor building cabling layouts.
- Supports Ethernet 10BASE-T, Ethernet 100BASE-TX, and Ethernet 1000BASE-T network connections.
- Commonly used in surveillance installations that require Ethernet connectivity.
- Enables PoE, PoE+, and PoE++ deployments, including IEEE 802.3bt Type 1, Type 2, Type 3, Type 4.
- Intended for noisy environments where shielding helps reduce interference.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 6 |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Number of pairs | 4 |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Pair color code | White & Blue, White & Orange, White & Green, White & Brown |
| Shield Type | Tape |
| Shield Material | Polyester + Bi-Laminate (Alum+Poly) |
| Drainwire type | 26 AWG (7x34) TC |
| Separator | Center Member (Patented X-Spline®) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket trade name | Flamarrest® |
| Jacket Color | Blue |
| Ripcord | No |
| Non-Plenum number | 2412FS |
| Overall cable diameter (nominal) | 0.255 in (6.48 mm) |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.55 in (64.8 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Bulk cable weight | 37 lbs/1000ft (55 kg/km) |
| UL Voltage Rating | 300 V (CMP) |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Delay (100 MHz) | 537.6 ns/100m |
| Delay skew (100 MHz) | 45 ns/100m |
| Nom. velocity of prop. | 72% |
| UL temperature | 105°C |
| Operating temperature | -20°C To +75°C |
| Storage temperature | -20°C To +75°C |
| Environmental suitability | Plenum, Indoor |
| Fire rating | Plenum |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMP, CL3P-LP (0.5A), CMP-LP (0.5A) |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| Third party performance verification | Category 6 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Patent info | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
