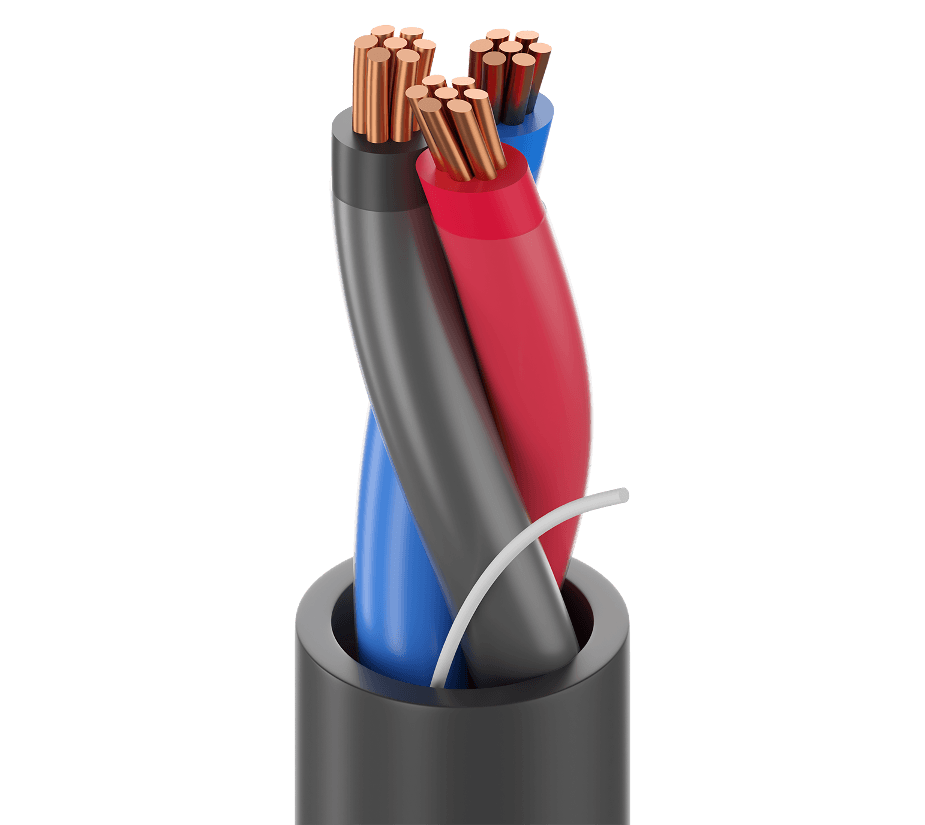

Belden 28139A, Control Cable 10 AWG 3C PVC NYL 600V TC ER E2
Description
Belden 28139A is a VNTC control cable with 3 stranded 10 AWG (7x18) BC - Bare Copper conductors and PVC/Nylon insulation with a PVC outer jacket. It is rated 600 V (TC-ER) and meets NEC / UL compliance requirements including Article 336, TC-ER, and THWN-2 Singles. This unshielded cable uses an E2 color code (Black, Red, Blue) and includes a ripcord for easier handling. It is rated 90°C Dry, 90°C Wet and is suitable for indoor, outdoor, sunlight resistance, and burial environments.
Belden 28139A Key Features
- 3 stranded 10 AWG (7x18) BC - Bare Copper conductors for power and control wiring.
- PVC/Nylon - Polyvinyl Chloride + Nylon insulation with a black PVC - Polyvinyl Chloride outer jacket.
- 600 V (TC-ER) UL voltage rating with NEC / UL compliance: Article 336, TC-ER, THWN-2 Singles.
- UL temperature rating of 90°C Dry, 90°C Wet, with operating temperature Wet/Dry: -30°C to 90°C.
- Environmental suitability listed as indoor, outdoor, sunlight resistance, burial with marking SUN RES DIR BUR.
Belden 28139A Applications
- Use it for power and control applications up to 600V.
- Install it in Class 1 Division 2 hazardous locations.
- For cable glands, use Belden BTC075A0551RA.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| UL type | TC (1277) |
| Product type | VNTC control |
| Number of Conductors | 3 |
| Conductor size | 10 AWG |
| Stranding | 7x18 |
| Conductor Material | BC - Bare Copper |
| Conductor Type | Stranded |
| Insulation Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
| Insulation nominal thickness | 0.027 in (0.69 mm) |
| Insulation nominal diameter | 0.166 in (4.22 mm) |
| Color Code | Black, Red, Blue |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket nominal thickness | 0.047 in (1.2 mm) |
| Overall cable diameter (nominal) | 0.447 in (11.4 mm) |
| Ripcord | Yes |
| Shield | Unshielded |
| Armor | No |
| Composite | No |
| Earth/ground wires | No |
| Voltage range | 600V |
| Nom. conductor DCR | 1.06 Ohm/1000ft |
| Max. current | 40 Amps per Conductor at 30ºC |
| Bend radius (stationary min.) | 1.76 in (44.7 mm) |
| Bend radius (installation min.) | 2.2 in (56 mm) |
| Max Pull Tension | 450.4 lbs (204.3 kg) |
| Bulk cable weight | 149 lbs/1000ft |
| Flammability / reaction to fire | UL 1685 UL loading, IEEE 1202 FT4 |
| CPR Euroclass | Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
