Belden 29500 010, Flexible Motor Supply Cable 16 AWG 4C 1000V PVC
SKU:Belden 29500 010
● In stock
Description

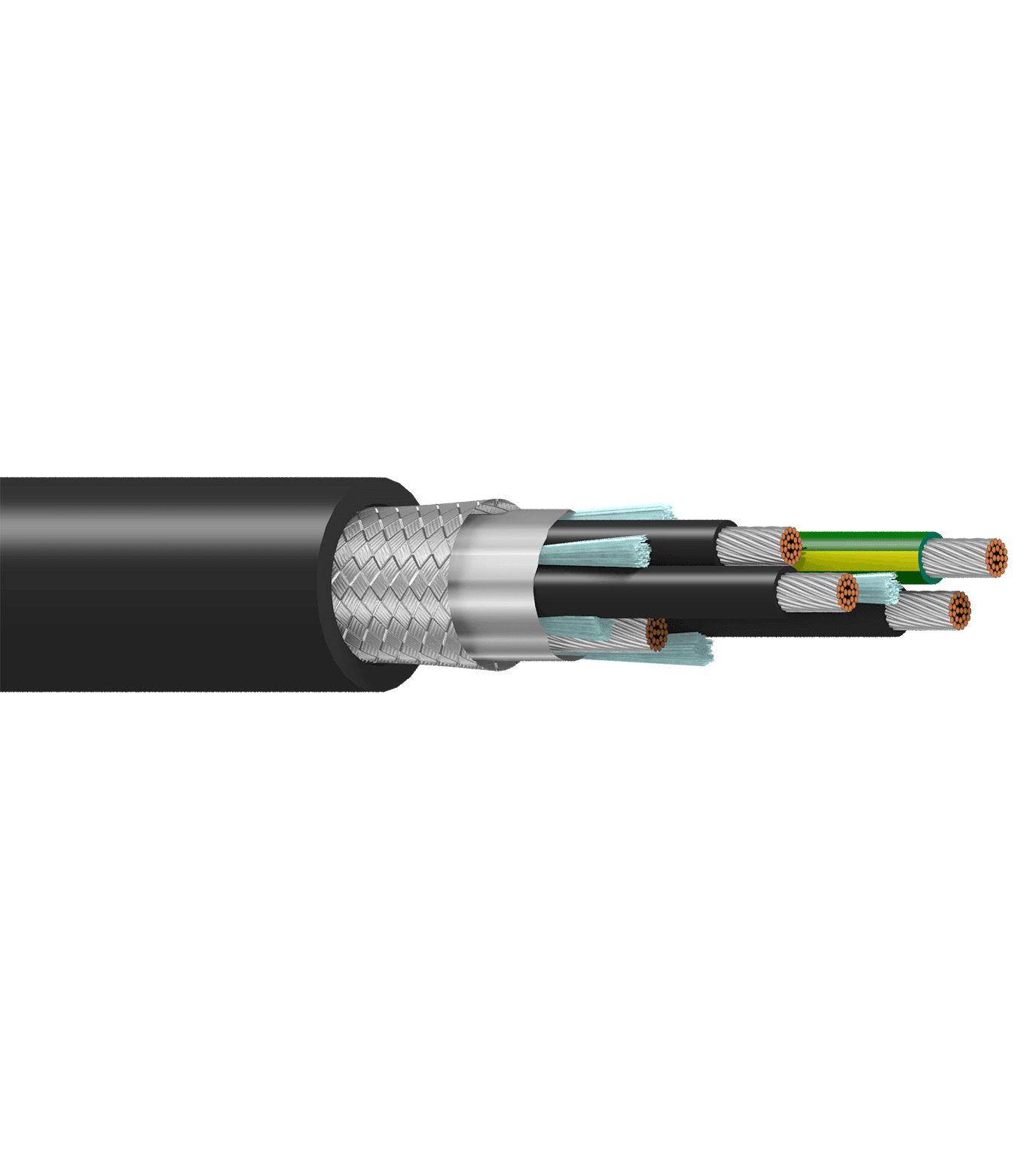

Belden 29500 010 is a 300% ground flexible VFD cable for Variable Frequency Drives (VFD), AC motor and drive systems, and Class 1 Division 2 hazardous locations. It is built with (3) 16 AWG (26x30) TC - Tinned Copper circuit conductors with XLPE insulation, plus a PVC insulated ground and an additional 16 AWG TC - Tinned Copper ground/drain. For noise control, it uses an overall Beldfoil® shield with 100% coverage and an 85% Tinned Copper braid. The cable has a black PVC outer jacket with ripcord and includes 600V TC-ER 90C Dry/Wet and 1000V Flexible Motor Supply Cable WTTC 1000V ratings.
Belden 29500 010 Key Features
- Conductor(s): 3, 16 AWG, 26x30, TC - Tinned Copper.
- Conductor(s) insulation: XLPE - Cross-Linked Polyethylene (Thermoset), 0.046 in (1.2 mm), 0.153 in (3.89 mm), ICEA Chart M4.
- Insulated ground: 1, 16 AWG, 26x30, TC - Tinned Copper with PVC - Polyvinyl Chloride insulation, 0.047 in (1.2 mm), 0.153 in (3.89 mm), Green/Yellow Stripe.
- Uninsulated ground wire: 1, 16 AWG, 26x30, TC - Tinned Copper.
- Tape shield: Tri-Laminate (Alum+Poly+Alum), 100% coverage, drainwire type 16 AWG (26x30) TC.
- Braid shield: Tinned Copper (TC), 85% coverage.
- Outer jacket material: PVC - Polyvinyl Chloride; Jacket color: Black; Ripcord: Yes.
- UL voltage rating: 600 V RMS (Type TC) (TC-ER, WTTC, UL Flexible Motor Supply Cable), 600 V (C(UL) CIC TC).
- Voltage rating: 1000 V (AWM I/II A/B).
- UL temperature: 90°C Dry, 90°C Wet; Operating temperature: -40°C to +90°C.
Belden 29500 010 Applications
- Designed for Variable Frequency Drives (VFD) where a flexible VFD cable is needed between drives and motors.
- Supports AC motor and drive systems in industrial installations that require a dedicated motor/drive cable.
- Intended for Class 1 Division 2 hazardous locations where the listed application environment is required.
- Recommended cable gland Belden BTC075A0551RA.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Nom. jacket thickness | 0.063 in (1.6 mm) |
| Overall cable diameter (nominal) | 0.534 in (13.6 mm) |
| Bulk cable weight | 171 lbs/1000ft (254 kg/km) |
| Nom. outer shield DCR | 1.20 Ohm/1000ft (3.94 Ohm/km) |
| Nom. Conductor DCR (Conductor(s)) | 3.91 Ohm/1000ft (12.8 Ohm/km) |
| Nom. conductor DCR (insulated ground) | 3.9 Ohm/1000ft (13 Ohm/km) |
| Nom. Conductor DCR (uninsulated ground wire) | 3.9 Ohm/1000ft (13 Ohm/km) |
| Nom. capacitance cond-to-cond | 23 pF/ft (75 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 48 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 41 Ohm |
| Nom. inductance cond-grnd | .23 µH/ft |
| Nom. inductance | 0.23 µH/ft (0.75 µH/m) |
| Nom. velocity of prop. | 55% |
| Max. current | 18 Amps per Conductor at 30ºC |
| Bend radius (stationary min.) | 6.4 in (160 mm) |
| Bend radius (installation min.) | 6.4 in (160 mm) |
| Max Pull Tension | 256 lbs (116 kg) |
| Environmental suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / reaction to fire | UL 1685 UL Loading, FT4, IEEE 1202 FT4 |
| Print marking | 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant |
| NEC / UL compliance | Article 336, TC-ER, WTTC, UL Flexible Motor Supply Cable |
| AWM compliance | AWM I/II A/B |
| CEC / C(UL) compliance | CIC, TC |
| ICEA compliance | S-95-658 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other standard compliance(s) | P-07-KA070003-MSHA |
| Sustainability | CA Prop 65 |
| Other Part Numbers | 29500 010, 29500 010100, 29500 010250, 29500 010500, 29500 0101000 |
| Priced Per | FT |
