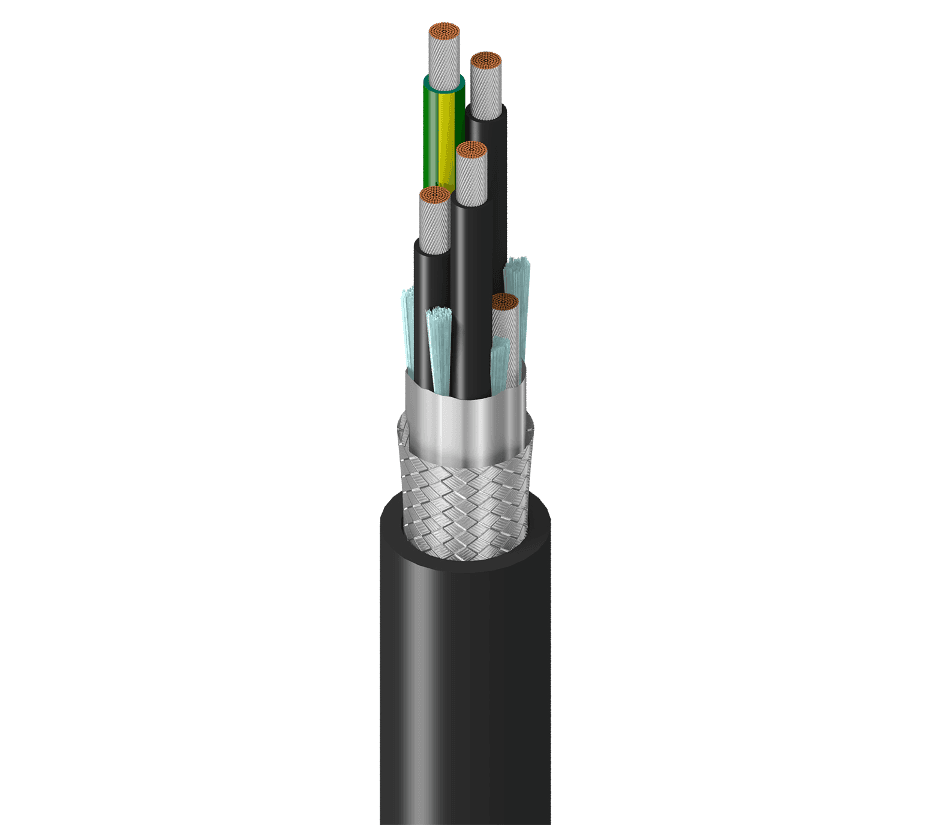

Belden 29501F 010, Multi Conductor VFD Cable 3C 14 AWG Shielded 1000V TPE, Black Jacket
SKU:Belden 29501F 010
● In stock
Description
Belden 29501F 010 is an extra flexible VFD cable for Variable Frequency Drives (VFD) and AC motor and drive systems in installations exposed to high flex, motion, and abrasion. It features 3 x 14 AWG TC - Tinned Copper conductors plus a 1 x 14 AWG ground, with XLPO - Crosslink Polyolefin insulation and a black TPE - Thermoplastic Elastomer outer jacket. For noise control, it includes an overall Beldfoil® + Tinned Copper braid shield with a 14 AWG (104x34) TC drain wire. It is rated 600/1000V and supports Indoor, Outdoor, Sunlight Resistance environments with UL/NEC compliance for flexible motor supply installations.
Belden 29501F 010 Key Features
- Extra flexible VFD cable intended for Variable Frequency Drives (VFD) and AC motor and drive systems.
- 3 x 14 AWG TC - Tinned Copper conductors plus a 1 x 14 AWG ground wire.
- Overall shield: Beldfoil® + Tinned Copper braid shield with a 14 AWG (104x34) TC drain wire for noise control in VFD environments.
- XLPO - Crosslink Polyolefin conductor insulation with a black TPE - Thermoplastic Elastomer outer jacket for durability and handling.
- UL voltage rating: 1000 V (TC-ER, XHHW-2, UL Flexible Motor Supply Cable), 600 V (C(UL) CIC TC).
- Environmental suitability: Indoor, Outdoor, Sunlight Resistance.
Belden 29501F 010 Applications
- Use in Variable Frequency Drives (VFD) where a dedicated VFD cable is required for drive-to-motor connections.
- Support AC motor and drive systems in industrial settings where flexible motor supply installations are needed.
- Install in applications exposed to high flex, motion, and abrasion where repeated movement and mechanical wear are expected.
- Route through hard-to-reach installation areas where handling benefits from an extra flexible construction.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | VFD |
| Number of Conductors | 3 |
| Conductor size | 14 AWG |
| Conductor stranding | 104x34 |
| Conductor Material | TC - Tinned Copper |
| Ground wire | 1 x 14 AWG, 104x34, TC - Tinned Copper |
| Conductor insulation material | XLPO - Crosslink Polyolefin |
| Conductor insulation thickness (nominal) | 0.046 in (1.2 mm) |
| Conductor insulation diameter (nominal) | 0.167 in (4.24 mm) |
| Conductor color code | ICEA Chart M4 |
| Ground wire insulation material | PVC - Polyvinyl Chloride |
| Ground wire insulation thickness (nominal) | 0.046 in (1.2 mm) |
| Ground wire insulation diameter (nominal) | 0.167 in (4.24 mm) |
| Ground wire color | Green/Yellow Stripe |
| Tape shield | Tri-Laminate (Alum+Poly+Alum), 100% coverage |
| Braid shield | Tinned Copper (TC), 86% coverage |
| Outer jacket material | TPE - Thermoplastic Elastomer |
| Jacket Color | Black |
| Separator | Polyester Tape |
| Ripcord | Yes |
| Shielded | Shielded |
| Shield Type | Braid |
| Armor | No |
| Composite | No |
| Earth/ground wires | Yes |
| Nom. thickness | 0.073 in (1.9 mm) |
| Nom. diameter | 0.587 in (14.9 mm) |
| Overall cable diameter (nominal) | 0.587 in (14.9 mm) |
| Bulk cable weight | 216 lbs/1000ft |
| Nom. conductor DCR | 2.468 Ohm/1000ft; 2.73 Ohm/1000ft (8.96 Ohm/km) |
| Nom. capacitance cond-to-cond | 40 pF/ft (130 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 72 pF/ft (240 pF/m) |
| Nom. characteristic impedence | 46 Ohm |
| Nom. inductance | 0.213 µH/ft (0.699 µH/m) |
| Nom. velocity of prop. | 55% |
| Max. current | 25 Amps per Conductor at 30ºC (per NEC) |
| Nom. outer shield DCR | 1.08 Ohm/1000ft (3.54 Ohm/km) |
| Voltage range | 1KV |
| UL temperature | 90°C Dry, 90°C Wet |
| Operating temperature | -40°C To +90°C |
| Bend radius (stationary min.) | 7.0 in (180 mm) |
| Bend radius (installation min.) | 7.0 in (180 mm) |
| Max Pull Tension | 340 lbs (150 kg) |
| Flammability / reaction to fire | UL 1685 UL Loading, FT4, IEEE 1202 FT4 |
| NEC / UL compliance | Article 336, Article 310, TC-ER, XHHW-2, UL Flexible Motor Supply Cable |
| CEC / C(UL) compliance | CIC, TC |
| ICEA compliance | S-95-658 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
