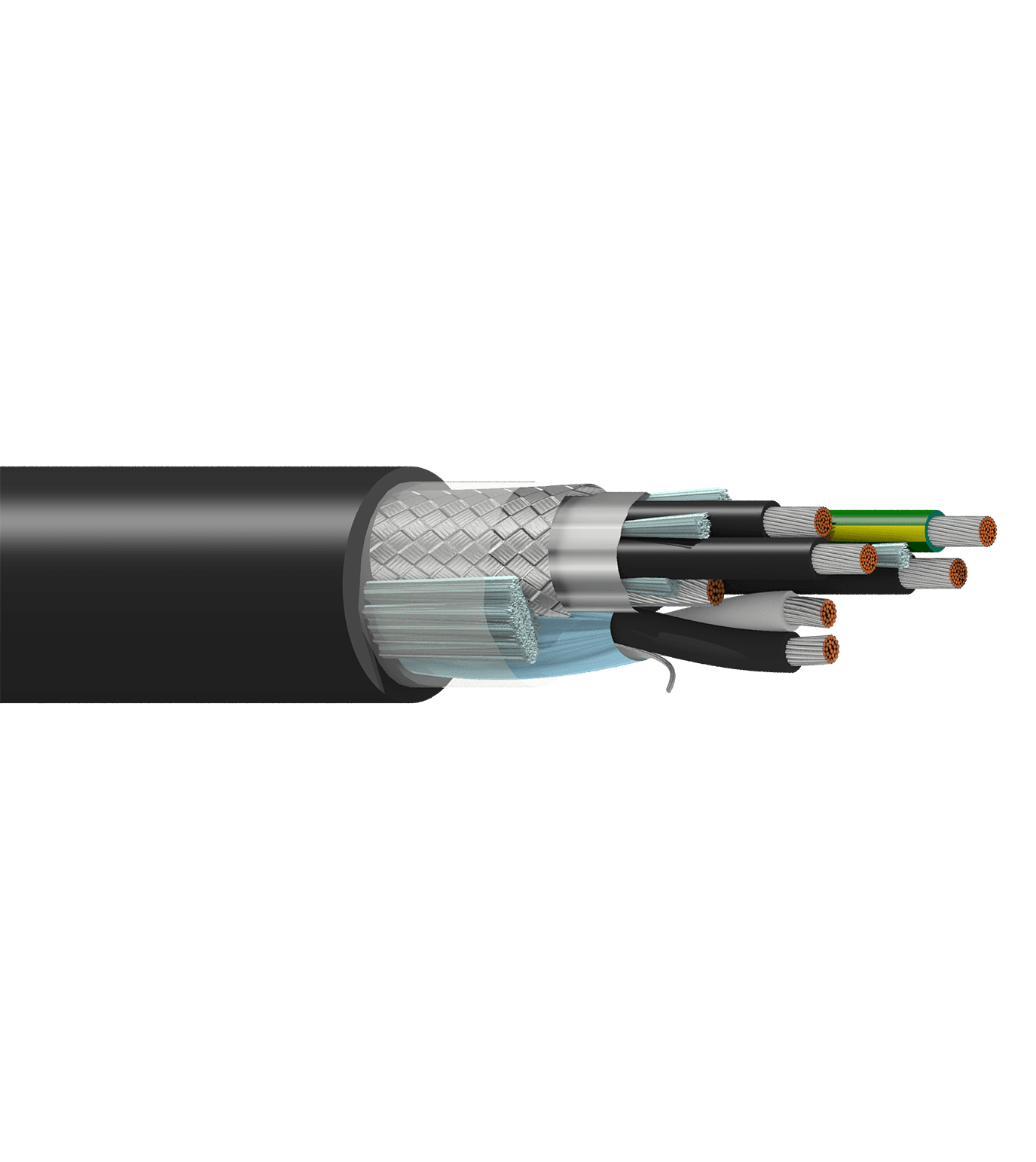

Belden 29511 VFD Cable 3-14 AWG +1 Pr 16 AWG + 1G 14 AWG Black Jacket
SKU:Belden 29511 010
$986.40
● In stock
Description
Belden 29511 010 VFD cable is a shielded, flexible motor supply composite cable with 3-14 AWG tinned copper conductors, plus 1 pair 16 AWG tinned copper, plus 1G 14 AWG tinned copper. It features XLPE-PVC insulation and a black PVC jacket. It is described as Belden 300% ground flexible VFD cable and 1000V UL flexible motor supply composite cable, with 600/1000 V TC-ER and 90ºC Wet/Dry.
Applications
- Use in flexible VFD cable installations where a motor supply composite cable is needed.
- Choose this cable for setups that require an overall shield and an additional foil-shielded extra pair with drainwire.
- Install in environments that require 90ºC Wet/Dry and 600/1000 V TC-ER.
Specifications
| Attribute | Value |
|---|---|
| Type | VFD Cable |
| Description | Belden 300% ground flexible VFD cable/1000V UL flexible motor supply composite cable |
| Conductor(s) | 3-14 AWG stranded (41x30) tinned copper + 1 pair 16 AWG stranded TC + 1-14 AWG TC ground conductors |
| Insulation | XLPE insulation on conductors and pair, M4 color code + PVC insulated ground |
| Overall shield | Overall Beldfoil® + 85% TC braid shield |
| Pair shield | Foil shield on extra pair + drainwire |
| Jacket | Overall PVC jacket |
| Jacket Color | Black |
| Rating | 600/1000 V TC-ER, 90ºC Wet/Dry |
| Other Part Numbers | 29511 010, 29511 010100, 29511 010250, 29511 010500, 29511 0101000 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
