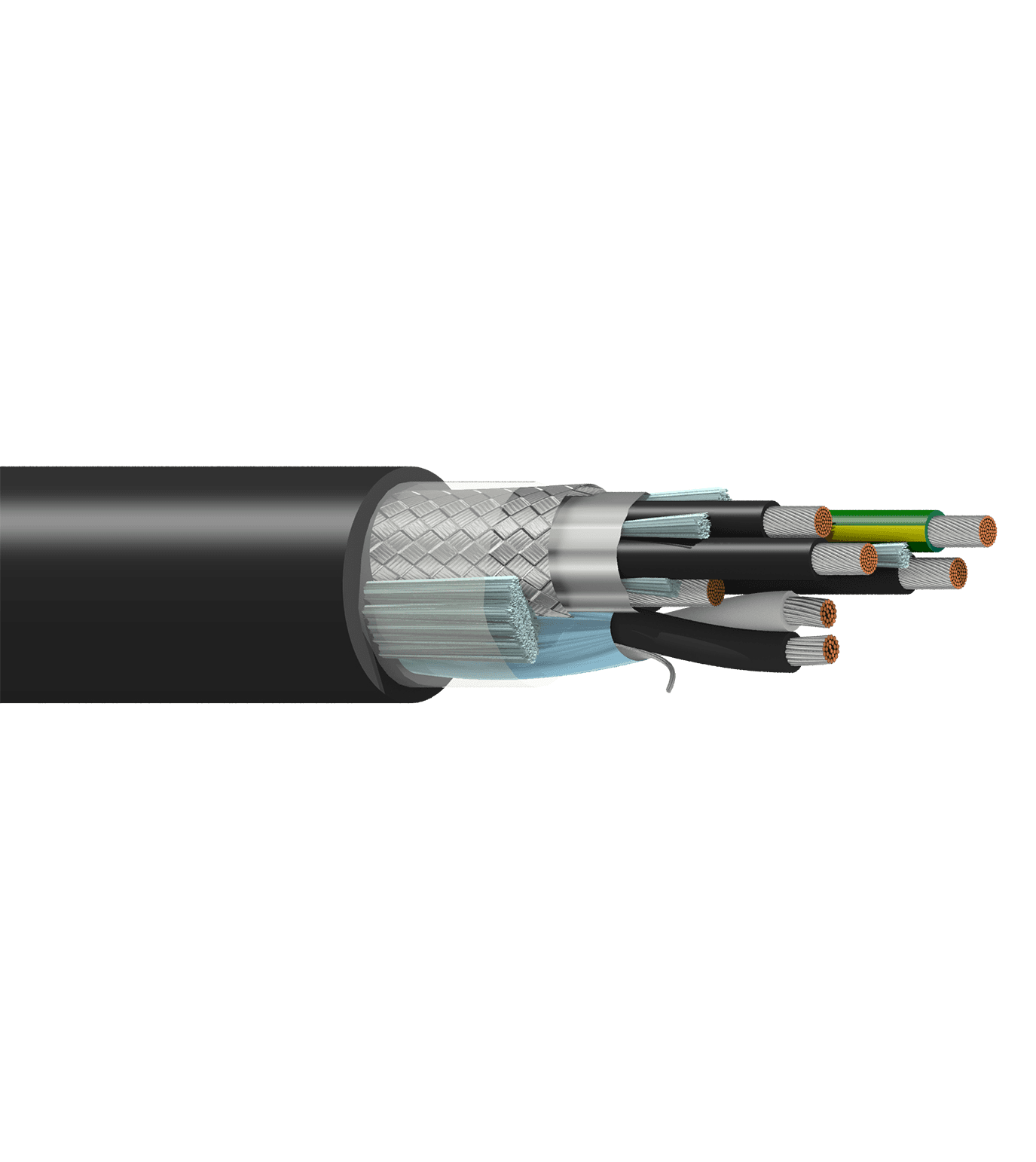

Belden 29512 010 VFD Cable 3C+G 12 AWG + 1 Pr 16 AWG Shielded Black Jacket
SKU:Belden 29512 010
$1,200.00
● In stock
Description
Belden 29512 010 VFD cable is a shielded, flexible motor supply composite cable with 3-12 AWG TC + 1 pair 16 AWG TC + 1G 12 AWG TC conductors and a black PVC jacket. It features XLPE-PVC insulation and an overall Beldfoil® + 85% TC braid shield, plus an additional foil shield on the extra pair with drainwire. Rated 600/1000 V TC-ER and 90ºC Wet/Dry.
Applications
- Use in flexible motor supply installations where a VFD cable is needed.
- Choose for installations that require a composite cable construction with an extra pair and a ground conductor.
- Specify for environments where a shielded cable with overall foil and braid shielding is needed to help manage electrical noise.
- Install where 600/1000 V TC-ER and 90ºC Wet/Dry rated cable runs are required.
Specifications
| Attribute | Value |
|---|---|
| Cable type | VFD cable |
| Description | Belden 300% ground flexible VFD cable/1000V UL flexible motor supply composite cable |
| Conductor(s) | 3-12 AWG stranded (65x30) tinned copper + 1 pair 16 AWG stranded TC + 1-12 AWG TC ground conductors |
| Insulation | XLPE insulation on conductors and pair, M4 color code + PVC insulated ground |
| Shielding | Overall Beldfoil® + 85% TC braid shield, foil shield on extra pair + drainwire |
| Jacket | Overall PVC jacket |
| Jacket Color | Black |
| Rating | 600/1000 V TC-ER, 90ºC Wet/Dry |
| Other Part Numbers | 29512 010, 29512 010100, 29512 010250, 29512 010500, 29512 0101000 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
