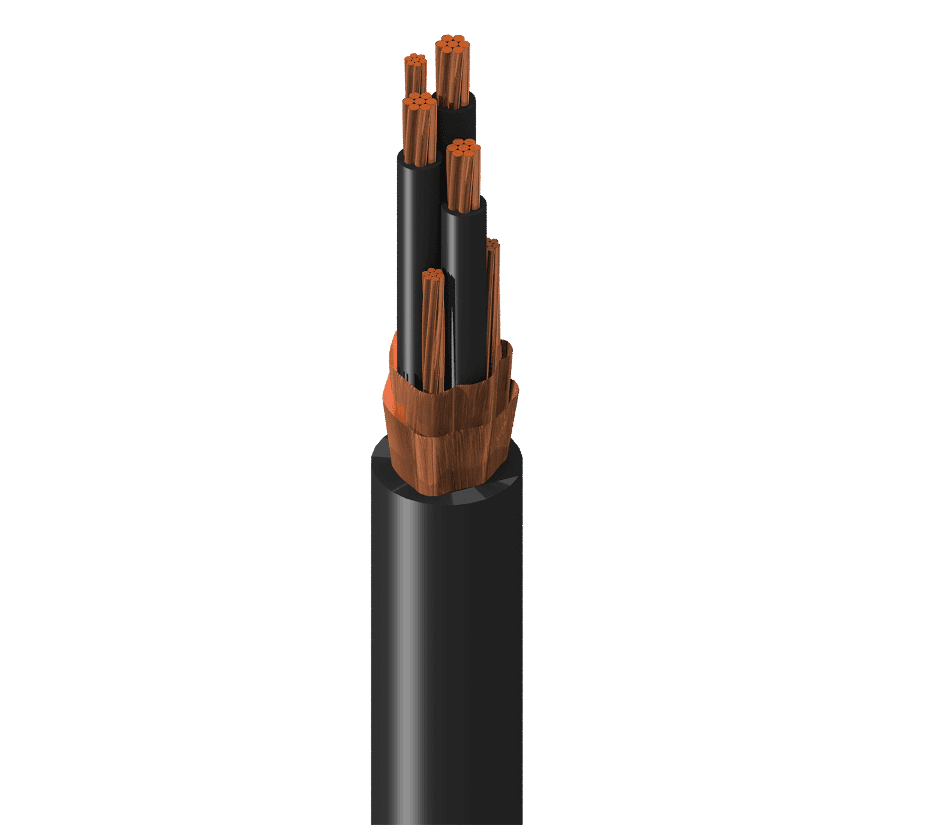

Belden 29524C, VFD 3C8 600V Black

Belden 29524C is a Belden Basics VFD cable designed for Variable Frequency Drives (VFD), AC motor and drive systems, and Class 1 Division 2 hazardous locations. It features 3 circuit conductors of 8 AWG stranded (7x16) bare copper with XLPE insulation and ICEA Chart M4 color coding, plus a 10AWG symmetrical segmented ground made from (3) of 14AWG bare copper strands. For noise control and grounding continuity, it uses an overall dual copper tape helically applied shield with 100% coverage. The cable is finished with a black PVC outer jacket with ripcord and carries 600 / 1000 V (TC-ER) and 90°C Dry, 90°C Wet ratings, along with SUN RES, DIR BUR, and Oil Resistant markings.

Belden 29524C Key Features

• 3 circuit conductors of 8 AWG stranded (7x16) bare copper with XLPE insulation and ICEA Chart M4 color coding.
• 10AWG symmetrical segmented ground made from (3) of 14AWG bare copper strands.
• Overall dual copper tape helically applied shield with 100% coverage for noise control and grounding continuity.
• Black PVC outer jacket with ripcord for easier jacket removal during installation.
• Rated 600 / 1000 V (TC-ER) and 90°C Dry, 90°C Wet, with SUN RES, DIR BUR, and Oil Resistant markings.

Belden 29524C Applications

• Install in Variable Frequency Drives (VFD) applications where a purpose-built VFD cable is required for drive-to-motor connections.
• Support AC motor and drive systems in industrial installations where consistent electrical performance and grounding are needed.
• Specify for Class 1 Division 2 hazardous locations when the installation requires a cable identified for that environment.
